Wheelbase: 9’ 9” (2.97 m)
Tier 4 Final - 74 hp (55 kw)
Weight: 22,670 lbs (10,283 kg)
Dimensions
- Length: 20’ 6” (6.24 m)
- Width: 8’ 6” (2.59 m) shipping
9’ 8” (2.94 m) working - Height: 8’ 9” (2.67 m)
- Wheelbase: 9’ 9” (2.97 m)
- Total weight: 22,670 lbs (10,283 kg)
Engine
- 74 hp (55 kw) Cummins Tier 4 Final engine
- Water-cooled
- Battery: 12 volt, 120 amp alternator
- Electric start
- Fuel reservoir: 51 gallons (208 l)
Strike Off
- Contoured strike off for controlled spread of material width, depth and slope with minimum side draft and minimum segregation of materials
- Basic strike off consist of one 1’ (.304 m) and one 2’ - 3’ (.6 - .91 m) sections, extendable
- Raised, lowered, extended and retracted hydraulically with manual stops for fine adjustment of elevation and slope
- Outer edger plate assembly included
- 12” (.304 m) above and below grade
- On board storage for strike offs and strike off supports
Hopper
- Tilting hopper 14.5⁰ load angle
- Folding hopper wings
- 2.2 cubic yards
Traction Drive
- Front wheel drive axle with transfer case and electric hydraulic controlled 2 speed motor
- Infinitely variable throughout both operating ranges
- Full reverse in both speed ranges
- Speeds:
Engine RPM Transfer Case Motor Speed
1800 Low Low 1.9 mph (3.05 kph)
1800 Low High 5.1 mph (8.2 kph)
1800 High Low 3.5 mph (5.6 kph)
1800 High High 8.8 mph (14.1 kph)
2200 Low Low 2.5 mph (4.02 kph)
2200 Low High 6.9 mph (11.1 kph)
2200 High Low 4.6 mph (7.4 kph)
2200 High High 11.9 mph (19.15 kph)
Hydraulic Reservoir
- 61 gallons (230 l)
Operator’s Controls
- Dual control stations, each equipped with:
- Foot actuated conveyor function switch
- Control functions on the operator’s console include: main power, ignition/key switch, horn, conveyor speed, shuttle and discharge direction, strike off lift and lateral movement, hopper wing, steering, parking brake, hopper tilt and lights
- PV 480 digital display for engine oil pressure, water temperature, voltmeter and hydraulic oil temperature, tachometer, hour meter and engine RPMs
Conveyor System
- Independent, variable speed, hydrostatic, dual end drive system
- Two high torque, direct drive hydraulic motors
- Conveyor speeds: 448’ per minute (136.5 mpm), 5.09 mph (8.19 kph)
- Discharge speed controlled with conveyor speed control knob on operator’s console
- On/off function controlled with foot switch located at each control station
- Conveyor belt: 24” (.609 m) wide, high temperature service nitrile belt
- Equipped with adjustable wipers to prevent material build up
- Conveyor assembly able to shift up to 18” (.457 m) either side hydraulically
- Control the direction of conveyor discharge of material to either side of machine from operator’s console
Brakes
- Hydrostatic traction drive primary braking
- Parking brake controlled by electric switch on operator’s console
- Failsafe parking brake
- Foot pedal hydraulic service brake
Tires
- Rear: Two 385/65 R 22.5 radial, tubeless
- Front: Two 425/65 R 22.5 radial, tubeless
Oscillating Push Rollers
- Two bearing equipped push rollers
- Mounted on a 9’ 3” (33.83 m) wide oscillating frame
- Compensates for minor directional misalignment of truck with widener
- Extends out 14” (.356 m)
- Rollers adjustable up and down
- Roller scrapers to remove material build up
Optional Equipment
- 130 hp engine option
- Dual strike-off group
- 1’ (.3 m) contoured strike-off section
- 3’ (.9 m) contoured strike-off section
- 2-3’ (.6-.9 m) telescoping contoured strike-off section, requires dual strike-off group, only one mounted per side
- TopCon P-32 system controls – single grade and slope, sonic
- 4 wheel drive with 4 wheel steering, requires 130hp option
- Washdown system with 2 hose reels and 7 gallon (26 l) tank
- Umbrella
Training, Support and Company
- Training and support manuals
- Optional on-site operator training by Dealer
- One-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 50+ years manufacturing experience
- ISO 9001 Certified
- Manufactured in the USA
Job Application

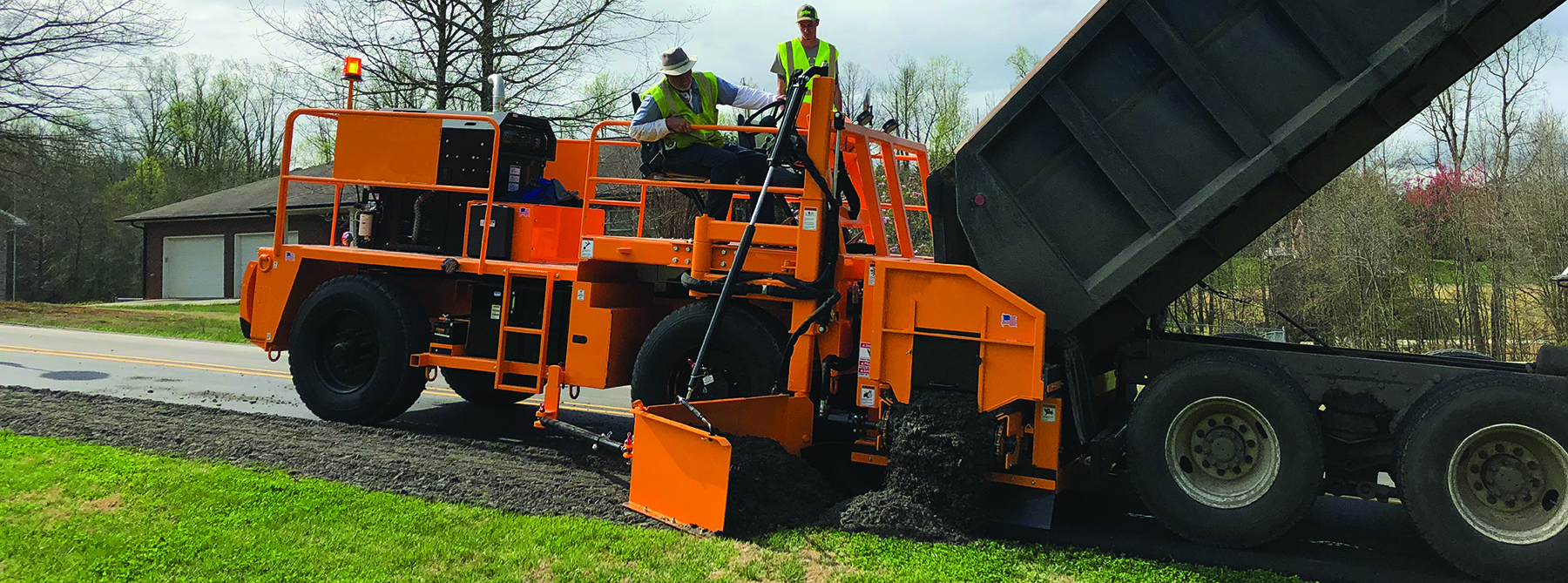

- Placing aggregate material for shoulders to grade and slope to widths of 8’
- Placing asphalt material for shoulders to grade and slope to widths of 8’
- Placing drain rock for trench drains on roadsides
- Placing aggregate for utility work back filling
Key Features
- Shipping width 8’-6“ with strike offs mounted on both sides
- Tilt up hopper for 14.5 degree loading angle
- 24” wide heat resistant chain drive conveyor belt
- Hydraulic extendable push roller
- Place material from 12” above or below grade
- Conveyor shifts 18” to either side
- Contoured strike off
