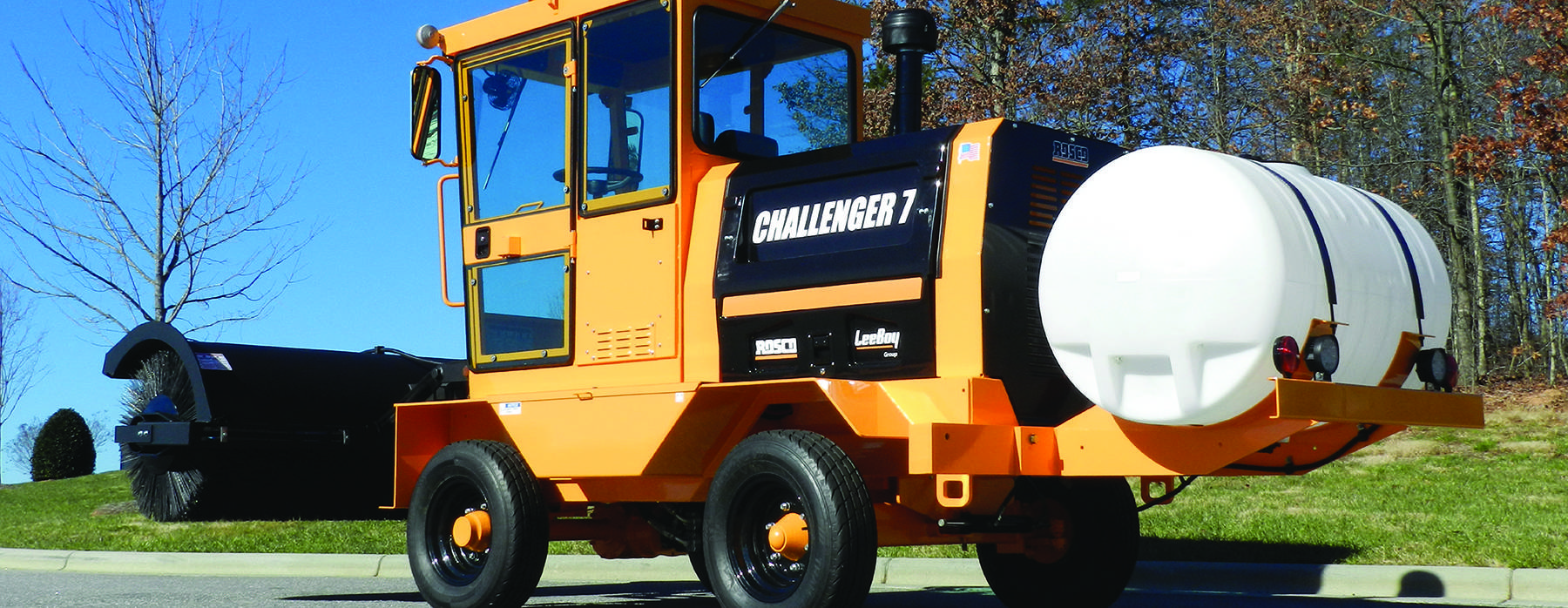

Front-Mount Brush Location
Tier 4 Final - 74 hp (55kW) @ 2,500 RPM
Weight: 7,500 lbs
LBP Equivalent: FB90
Dimensions
- Length: 18’ 6” with water
- 15’ 3” without water
- Width: 8’ 6” not tilted
- Height: 9’ 5” with beacon
- 8’ 4” without beacon
- Wheelbase: 5’ 5”
- Turning radius: 3’
- Total weight: 7,500 lbs
Engine
- Tier 4 Final 74 hp (55kW) @ 2,500 RPM Cummins diesel B2.8
- Air cleaner: Rotary precleaner, primary, safety
- Electrical system: 12 volt system, 120A alternator and battery
- Fuel reservoir: 35 gallons
Front Axle
- Heavy-duty, limited slip differential
- Tires: 8.75 x 15” bias, load range E, highway tread
- Rim: Four steel disc type, 15 x 6.57”
Transmission
- Hydrostatic
- Speed: Infinitely variable from 0 to 15 mph
Front Axle
- Heavy-duty, limited slip differential
- Tires: 8.75 x 15” bias, load range E, highway tread
- Rim: Four steel disc type, 15 x 6.57”
Rear Axle
- Heavy-duty truck type, oscillating
Steering
- Orbital, hydrostatic type
- Tilt steering column
Main Frame
- .75 x 12” plate steel and 2” x 6” rectangular A 500 tubing with 0.25” wall thickness
Brakes
- Dynamic braking with two wheel drive axle disc type brakes in oil bath with hand operated parking brake
Instrumentation
- Graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, water temperature, voltmeter, tachometer, hour meter, fuel gauge
Hydraulic System
- Two separate circuits, one for travel and one for brush control and power steering.
- Hydraulic reservoir: 24 gallons
Brush
- Joystick control of swing and up/float motions
- Variable down pressure, brush rotation, speed control
- Quick change design allows operator to change out brush quickly without tools
- Drive is hydraulic by separate pump and heavy duty motor, independent of propulsion circuit
Brush Frame Choices
- 7’ 6” heavy-duty frame with poly-steel tube brush
- 32” diameter, 7’ 6” long
- Sweep angle: 35⁰ left or right
- Speed: variable, 0 to 180 RPM
- Brush frame is welded, heavy gauge steel
OR
- 8’ heavy-duty frame with poly-steel tube brush
- 32” diameter, 8’ long
- Sweep angle: 35⁰ left or right
- Speed: variable, 0 to 180 RPM
- Brush frame is all welded, heavy gauge steel
Additional Standard Equipment
- Two LED head lights
- Two rear LED work lights
- LED stop, tail and turn signals
- Amber LED strobe light
- Back-up alarm
- Horn
- Slow moving vehicle sign
- Vandalism package
- 0.375” plate steel fenders
- Hydraulic temperature/level gauge on tank
- Tool box
- Rear mounted brush watering system with 150 gallon polyethylene tank with brush spraybar, electric pump and filter
Optional Equipment
- Cab air filtration and pressure monitor system (MERV 16 rated)
- 8’ heavy-duty frame, poly/steel tube brush
- Front windshield washer
- Rear wiper and washer assembly
- Combination poly wafers (in lieu of poly tube)
- Combination poly/steel wafers (in lieu of poly tube)
- Poly/steel tube brush (in lieu of poly tube)
- Suspension seat assembly w/ safety belt
- Back up/reverse camera with in-cab color display
- Radio/CD/Bluetooth with dual speakers and remote, cab model only
- Cold weather package, block heater
- Spare tire with mount
Cab
- Fully enclosed, ROPS cab with air conditioner, heater and defroster
- Padded seat with safety belt
- Dual west coast style mirrors
- Tinted safety glass
- Front windshield wiper
- Dome light
- 12V DC power outlet
- 2-speed defrost fan
- Manual box
- Cup holder
Training, Support and Company
- Training and support manuals
- Optional on-site operator training by Dealer
- Two-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 55+ years manufacturing experience
- ISO 9001 Certified
- Sourcewell Contract#052417-VTL
- Manufactured in the USA
Job Application
- Milling clean up
- Chip and seal prep
- Ship yards, ports
- Waste transfer facilities and landfills
- Quarries
Key Features
- 3 foot turn radius
- Quick-change brush system
- Adjustable control pedestal
- Single hand operation joystick
- Variable brush down-pressure control
