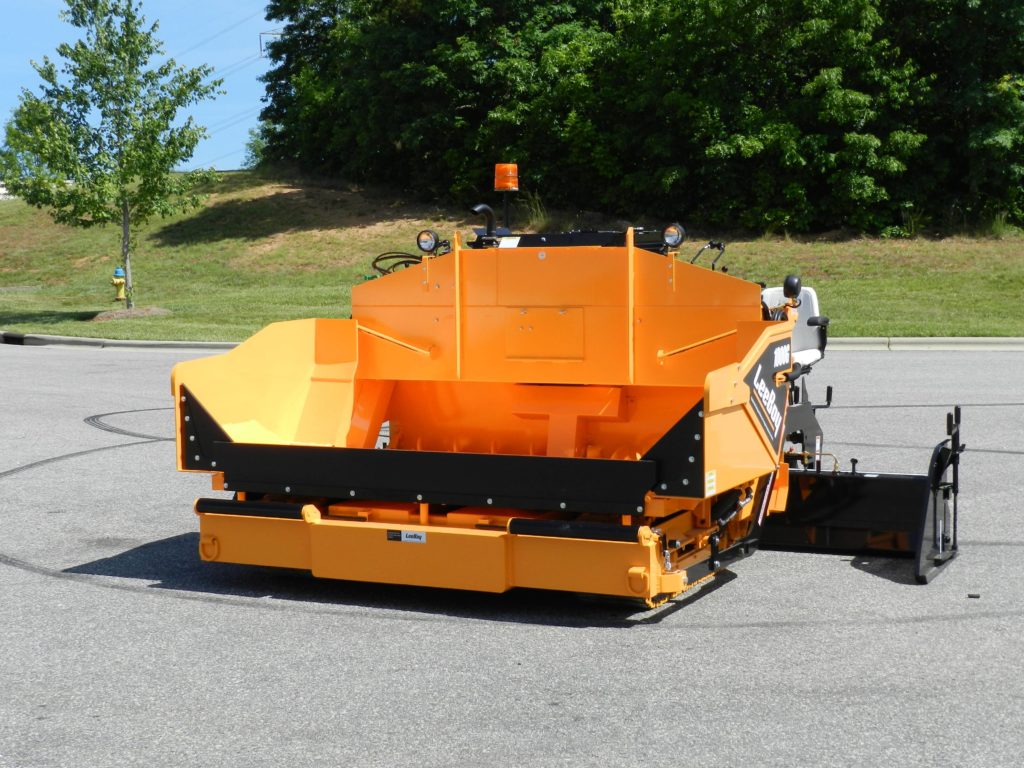

Tier 4 Final – 49hp (37kw) @ 2,600 RPM
Weight (with screed): 11,000 lbs. (4,990 kg)
Paving Widths Variable Up To 13’ (3.9m)
Dimensions
- Length: 9’6” (2.9 m)
- Width: 8’6” (2.59 m) transport
- 9’ (2.7 m) hopper wings down
- Height: 7’ (2.13 m)
- Total Weight (with screed): 11,000 lbs. (4,990 kg)
Engine
- Kubota turbocharged diesel
- Tier 4 Final – 49hp (37kw) @ 2,600 RPM
Capacities
- Fuel: 13.5 gallons (51 l)
- Hydraulic: 45 gallons (170 l)
Hopper
- Gravity fed, hydraulically raised hopper
- Side wings fold in or out
- Hopper size: 5.5 ton (4,900 kg)
- Hopper height: 22” (.559 m)
Paving Widths
- Variable up to 13’ (3.92 m)
Paving Depths
- Depth: 0” to 6” (.152 m)
Screed
- Propane screed standard, weight: 1,750 lbs
- Legend full free floating 19” (.483 m) screed, consisting of a 13” (.330 m) main screed
- Constructed of .375” (.010 m) AR 400 bolt-on wear plates for easy replacement
Screed End Gates
- Equipped with vertical height adjustment and tilt
Screed Extensions
- Two 44” (1.118 m) screed extensions hydraulically actuated to a width of 13’ (3.96 m)
- To eliminate seams, the heated extensions are mounted flush with the main screed and are adjustable with the angle of attack
- Includes replacement .25” (.006m) AR 400 bottom wear plates
Screed Heat
- Two 54,000 BTU propane burners on main screed
- Each extension has one 36,000 BTU propane burner
- One 36,000 BTU burner ignitor
Screed Vibration
- Equipped with a hydraulic vibrator capable of producing 2,000 vibrations per minute
Screed Crown/Invert
- Equipped with a crown/invert adjustment allowing at least 2” (.051m) of crown and 1.5” (.038 m) of valley
- Includes a leveling indicator for the operator to know when the screed is level
Material Flow Gates
- Two independent hydraulically operated 4’ (1.219 m) wide gates located under the augers and constructed of at least .25” (.006 m) A-36 plate steel
Material Augers
- Two independently operated hydraulic casted augers constructed with .625” (.016 m) segmented A 36 steel
- Augers are 9” (.229 m) diameter
Operator’s Platform
- Full machine width platform with left hand seat
Operator’s Controls
- All control levers are on the left side
- Right side levers include left and right drive control, right auger, right screed extension and hopper
Steering
- Independent hydrostatic steering from the left or right side of machine
Washdown System
- Electric HD pump with one 22’ x .375” (6.706 x .009 m) and one 15’ x .375” (4.572 x .009m) diameter hoses and spray nozzles
Hydraulic System
- Variable volume hydraulic pumps for each drive
- A constant volume pump for all other hydraulic functions
- Hydraulic reservoir: 45 gallons (170 l)
Push Rollers
- Two 3” (.076 m) diameter rollers with sealed bearings
Track Drive System
- Hydrostatically powered, self-cleaning friction drive tracks consisting of two drive tires and hydraulically adjustable front idler
- Drive mechanism consists of two torque hubs for variable speeds
- Track size: 14” wide x 48” long (.356 x 1.219 m) steel
- Paving speed: 0 to 220’ per minute (2.5 mph)
- Travel speed: 0 to 220’ per minute (2.5 mph)
Additional Standard Equipment
- Back-up alarm
- Lockable fuel and hydraulic caps
- Rotating safety beacon
- Adaptable for field automation installation
- Wired for optional sonic auger, sensors and cord
Optional Equipment
- Two-speed track drive (track only)
- Failsafe brake
- Rubber tire drive system
- Sonic auger, sensors and cords
- Slope meter
- LED work light package
- Hose reel, limited to one
- Electric screws for grade controls
- Wiring only, grade controls (TopCon), includes A/M modules
- Sonic grade control, one side (TopCon)
Training, Support and Company
- Training and support manuals
- Optional on-site operator training by Dealer
- One-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 50+ years manufacturing experience
- ISO 9001 Certified
- Manufactured in the USA
Job Application
- Driveways
- Parking Lots
- Alleyways
- Patching
- Utility Cuts
- Municipal Work
Key Features
- Highest hopper tilt angle means greater productivity
- Small paver with fully functioning screed
- Easy maintenance, less moving parts
- Lower cost of ownership
- Hydraulic hopper wings
- Longer track, better balance, smooth flotation
