LeeBoy

8608

Asphalt Pavers

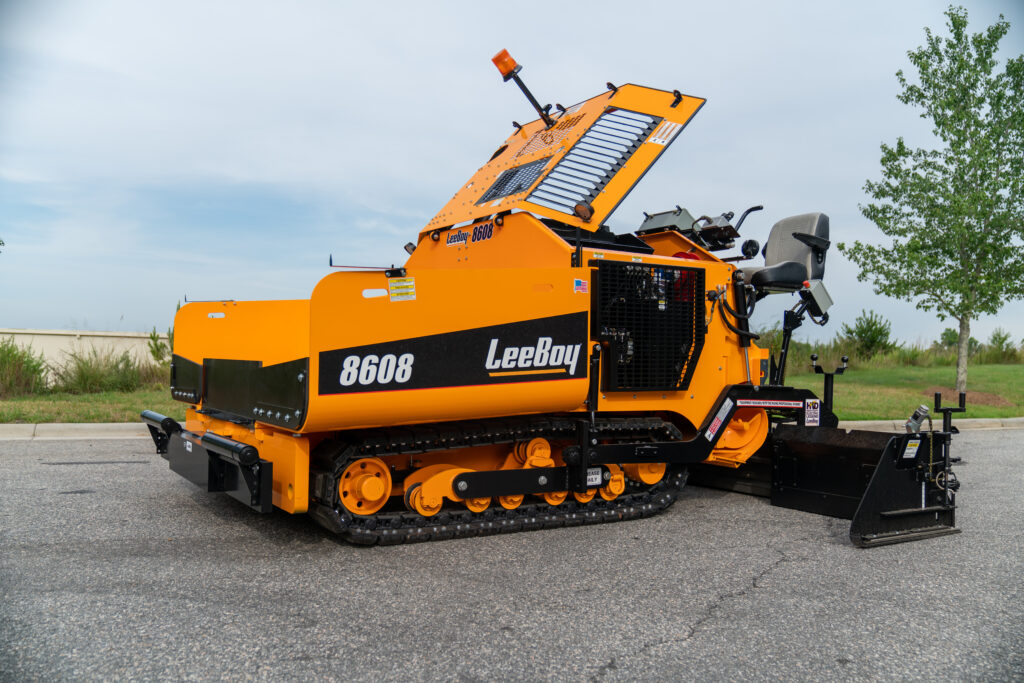

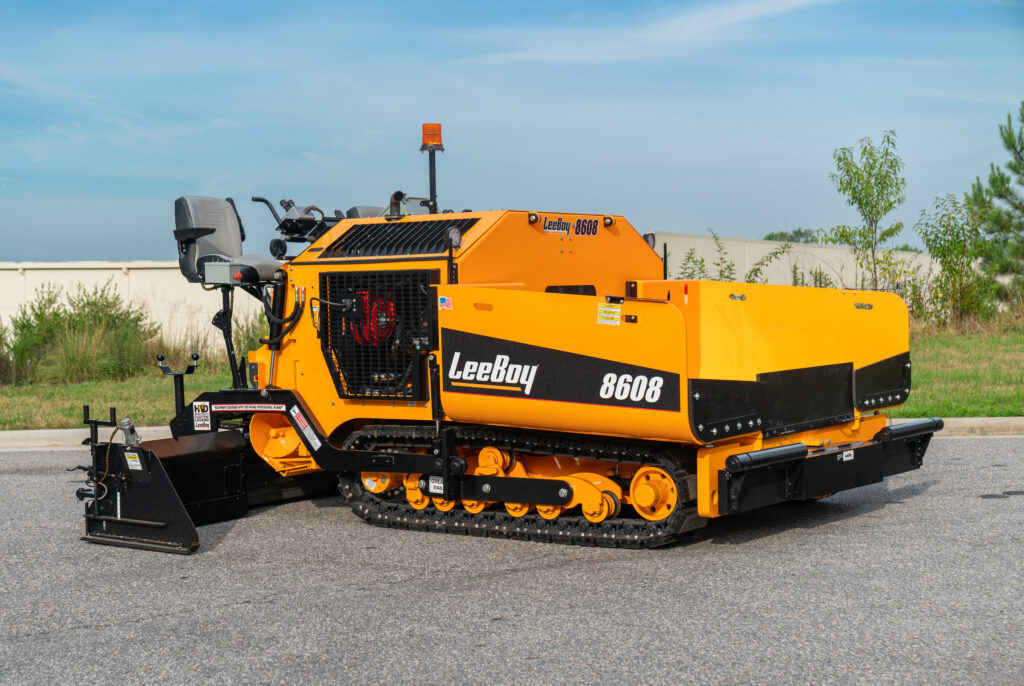

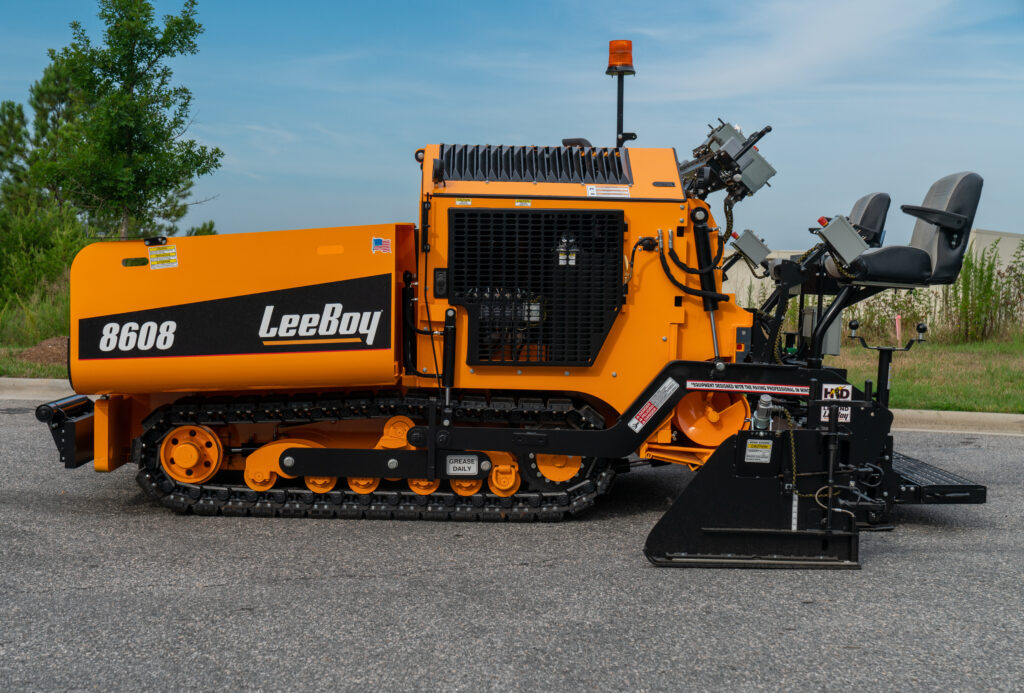

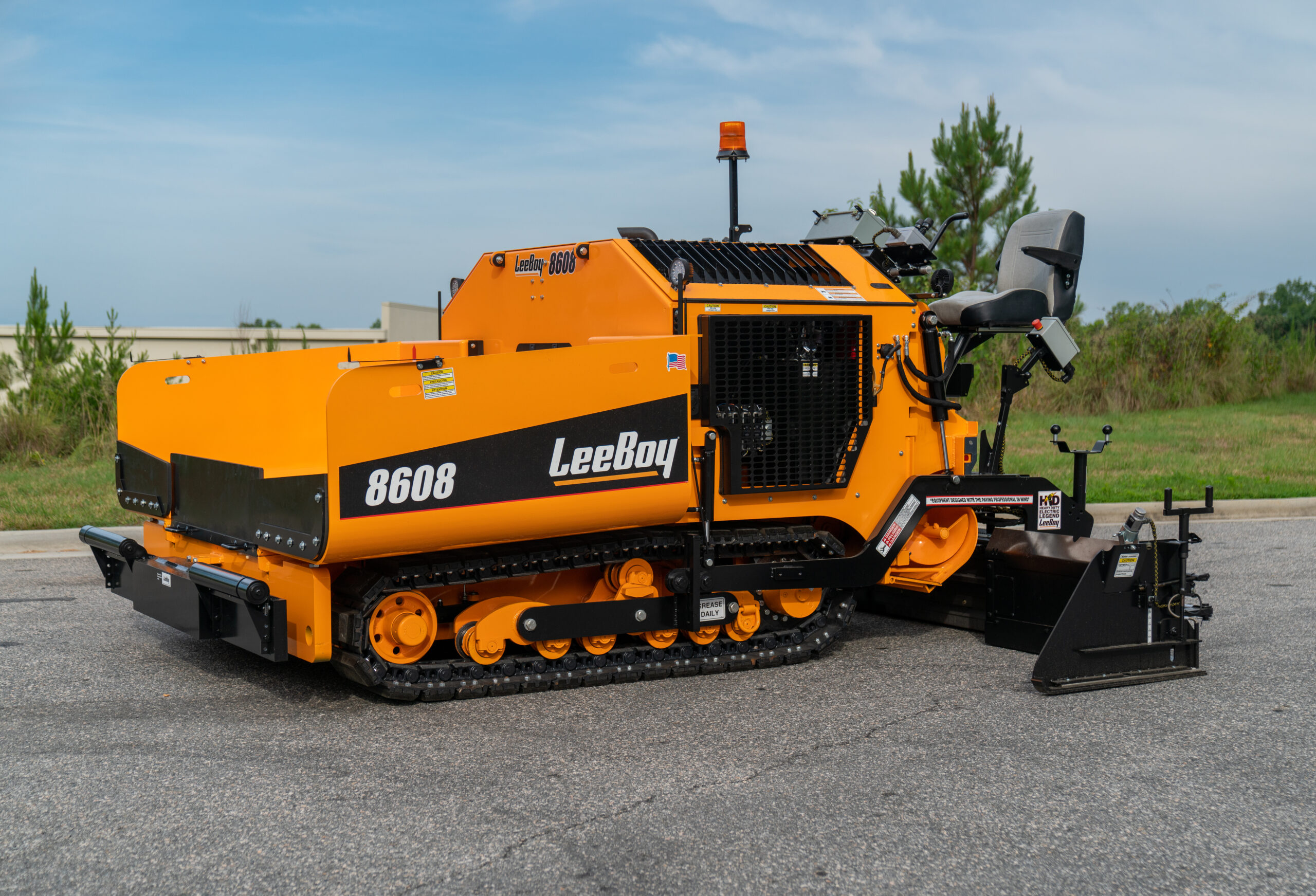

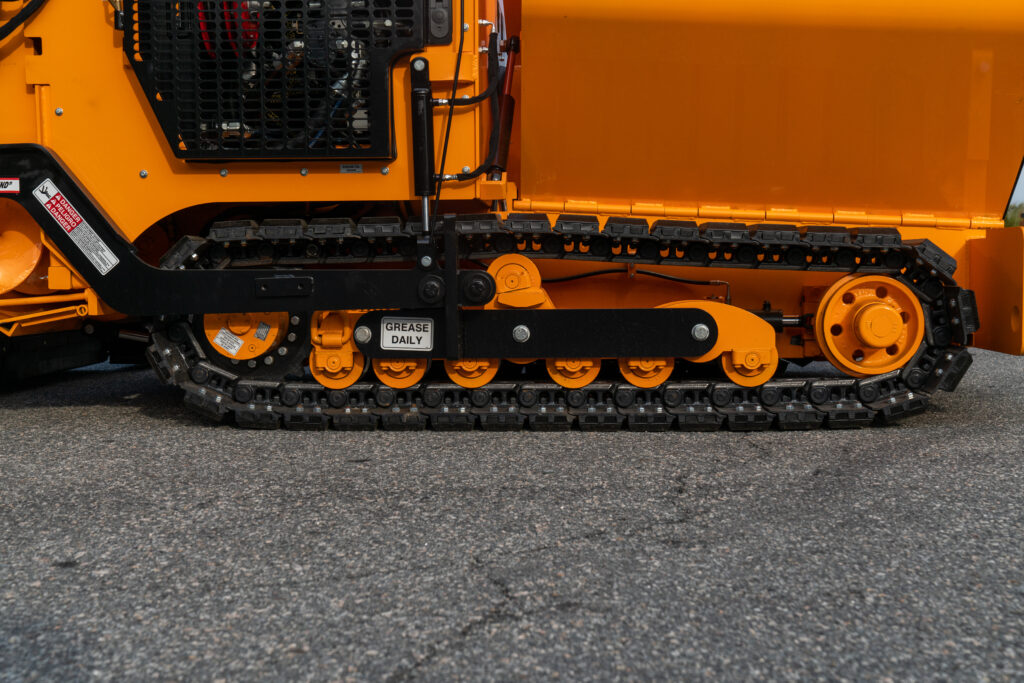

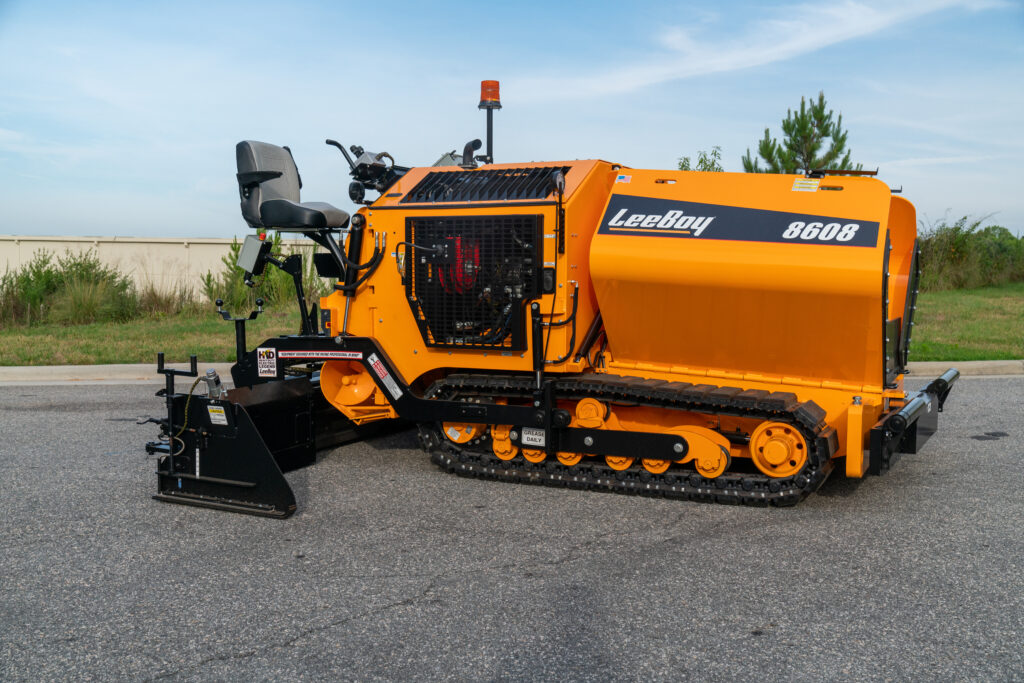

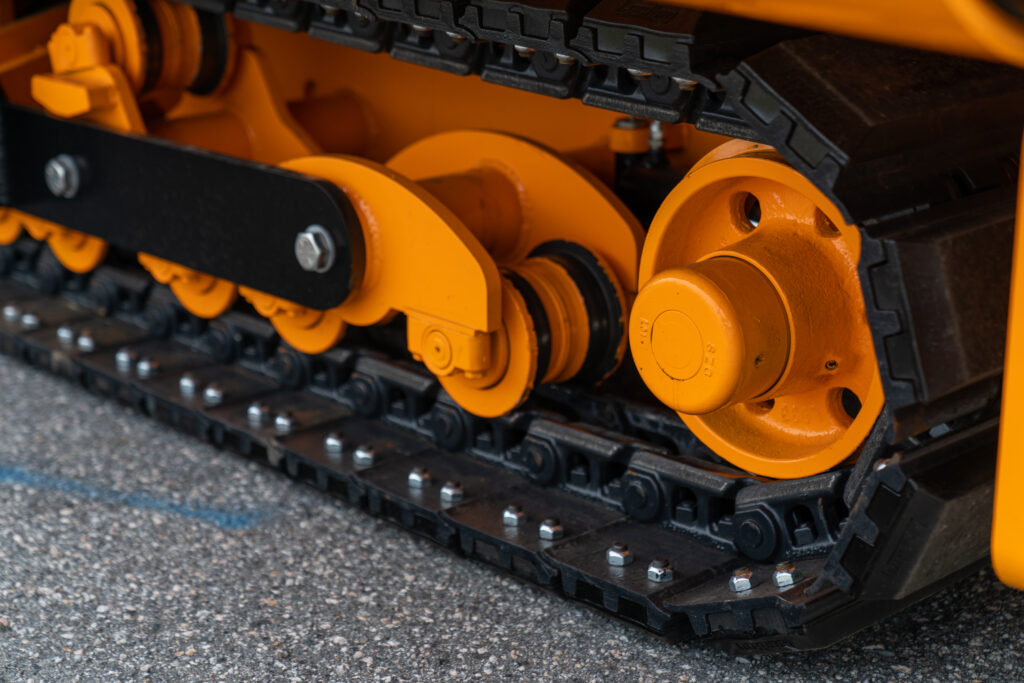

The new 8608 asphalt paver is equipped with an efficient narrow conveyor material management system along with our Oscillating bogie style, B1 smooth ride poly track system. This allows the paver to drive over base imperfections and other obstacles that may be encountered without altering the depth of the mat. This asphalt paver is powered by a 125HP Kubota Tier 4 engine including a lowered SCR, exhaust, and flat hood for enhanced operator visibility and access. The 8608 is equipped with a 14.4 kw belt driven generator. This model includes operator friendly toggle switch controls Leeboy operators are familiar with. The operator’s platform is equipped with the choice of high or low deck controls with electronic steering. Designed with the paving professional in mind, this heavy commercial paver is guaranteed to impress.

Find a Dealer Compare Products

LeeBoy 8608

Technical Specifications

Operator’s Controls

  • High deck/low deck configuration
  • Includes dual electronic steer

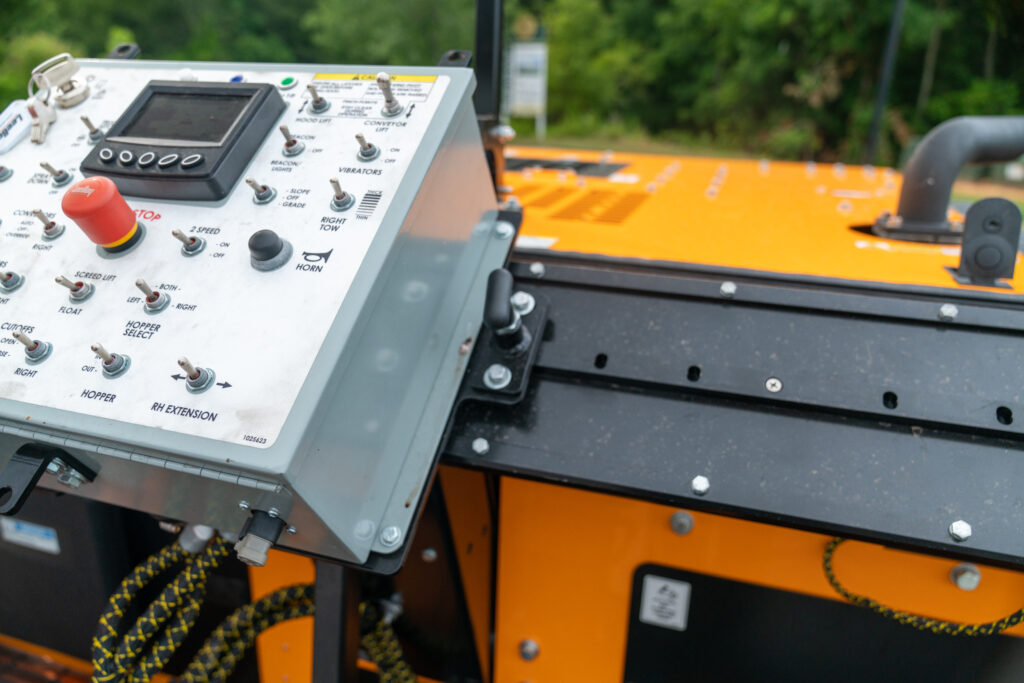

  • All control switches are located in one box that can be slid to each side. Dash panel includes augers, screed extension, cut-offs, hopper wings, conveyors, grade controls, and lights
  • Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics

Dimensions

  • Length: 15’ 3” | 14’ 3” transport
  • Width: 8’ 6” transport
    10’ hopper wings down
  • Height: 6’ 10” high deck
  • Total Weight: 21,920 lbs.

Engine

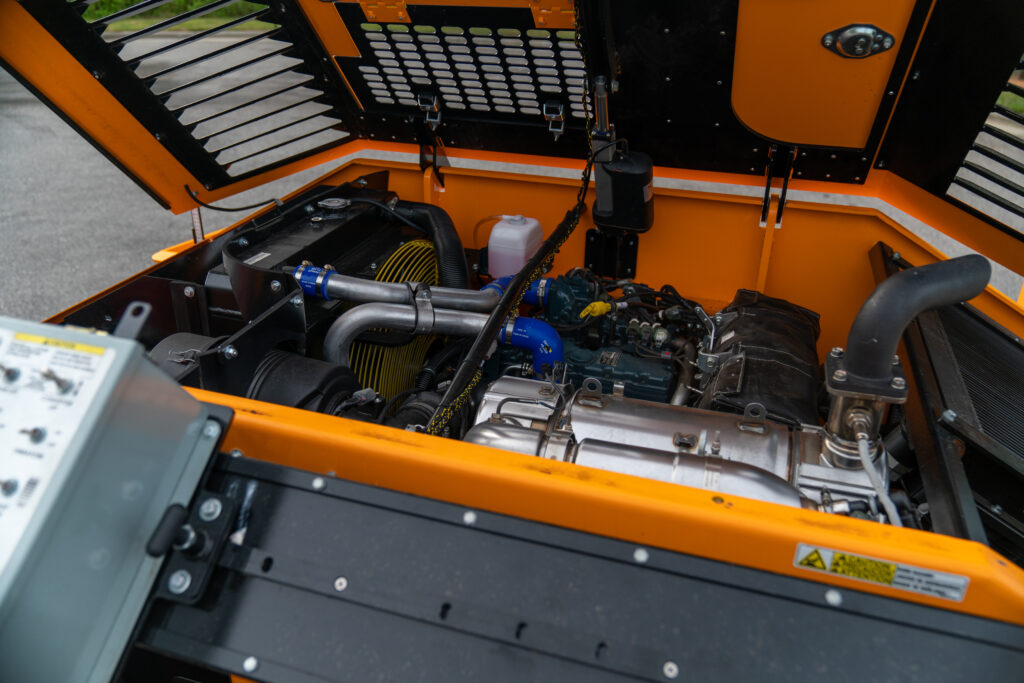

  • Kubota turbocharged diesel,
    Tier 4 Final – 125 hp (93 kw)

Capacities

  • Fuel: 32 gallons
  • Hydraulic reservoir: 25 gallons
  • Washdown tank: 7 gallons
  • DEF tank: 5 gallons

Paving Widths

  • Variable paving widths up to 15’
Download Full Specs
