Asphalt Pavers

Boasting of a small footprint yet retaining a 15 foot-wide screed, the LeeBoy 8500E allows for wider and longer pulls than competitive pavers. The new and improved 8500E series paver is equipped for the next generation, with a 71 hp Kubota turbocharged diesel engine: DOC only. No regen required. This machine is enhanced with 12″ augers, heavy duty radius hopper wings, and more robust hydraulics for cooling and efficiency. The larger fuel tank increases the daily run time. These enhancements make the 8500E more productive than ever, along with less hand work, means the end user minimizes the number of stops which increases productivity and profitability. The 8500E features upgraded controls which lessens any learning curve and allows for immediate use. This paver is a true commercial class machine easily fitting onto a trailer with other complementary equipment in order to provide high revenue opportunities for its patrons.


Find a Dealer Compare Products

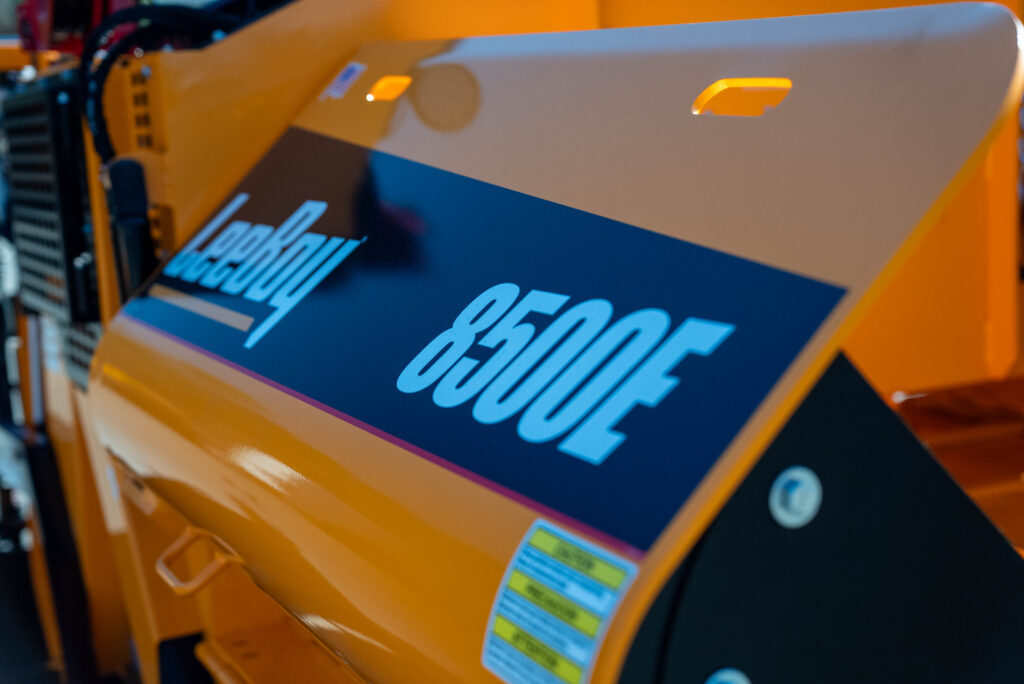

LeeBoy 8500E

Technical Specifications

Operator’s Controls

  • All control levers are on the left side
  • Right side levers include left and right drive control, right auger, right screed extensions, hopper and cut-offs
  • Dash slides from left to right
  • Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics


  • Length: 12’ 8”
  • Width:  8’ 6” transport
    10’ hopper wings down
  • Height:  6’ 4” with beacon folded down
  • Total Weight (with screed):  18,100 lbs


  • Kubota turbocharged diesel: DOC only. No regen required.
  • Tier 4 Final – 71hp (53 kW) @ 2,200 RPM


  • Fuel: 23 gallons
  • Hydraulic Reservoir:  19 gallons
  • Washdown tank: 7 gallons

Paving Widths

  • Variable up to 15’
Download Full Specs

Product Video

8500E Asphalt Paver Walkaround
