• Front-Mount Brush Location

  • 74 hp (55 kw) Hatz Diesel

  • Weight: 6,900 lbs w/out water

  • LBP Equivalent: FB55

Dimensions

  • Length: 15’ 6”
  • Width:  7’ 9” no tilted
  • Height:  9’ 1”
  • Wheelbase:  7’ 3”
  • Turning radius, inside:  4’ 2”
  • Turning radius, outside:  13’ 4”
  • Total weight:  5,700 lbs w/o water
    6,900 lbs w/ water

Engine

  • Tier 4 Final 74 HP (55 kW) Max @ 2,500 RPM Hatz diesel 4H50TIC
  • Air cleaner:  Rotary pre-cleaner
  • Electrical system:  12 volt system, alternator and battery
  • Fuel reservoir:  30 gallons

Transmission

  • Hydrostatic 2 speed
  • Speed: 0 to 12 mph, low range
  • Speed:  0 to 22 mph, high range

Front Axle

  • Comer 068 Series, heavy-duty, limited slip differential, full-float

Rear Axle

  • Heavy-duty, truck type, oscillating
  • Tires: ST 225 x 75-15R, load range E
  • Rim: Four steel disc type, 15 x 6 in

Steering

  • Orbital, hydrostatic type
  • Tilt steering column

Main Frame

  • Rectangular A 500 GRB tubing with 8” x 2” x 0.25" wall thickness

Brakes

  • Two wheel wet disk type brakes with hand operated parking brake
  • Foot operated de-stroke breaking of the hydrostatic drive

Instrumentation

  • Murphy PV380R1 Digital Display (Oil pressure, water temperature, voltmeter, tachometer, hour meter, fuel gauge)

Hydraulic System

  • Two separate circuits, one for travel and one for brush control and power steering
  • Hydraulic reservoir: 25 gallons
  • Heavy-duty gear motor and brush motor

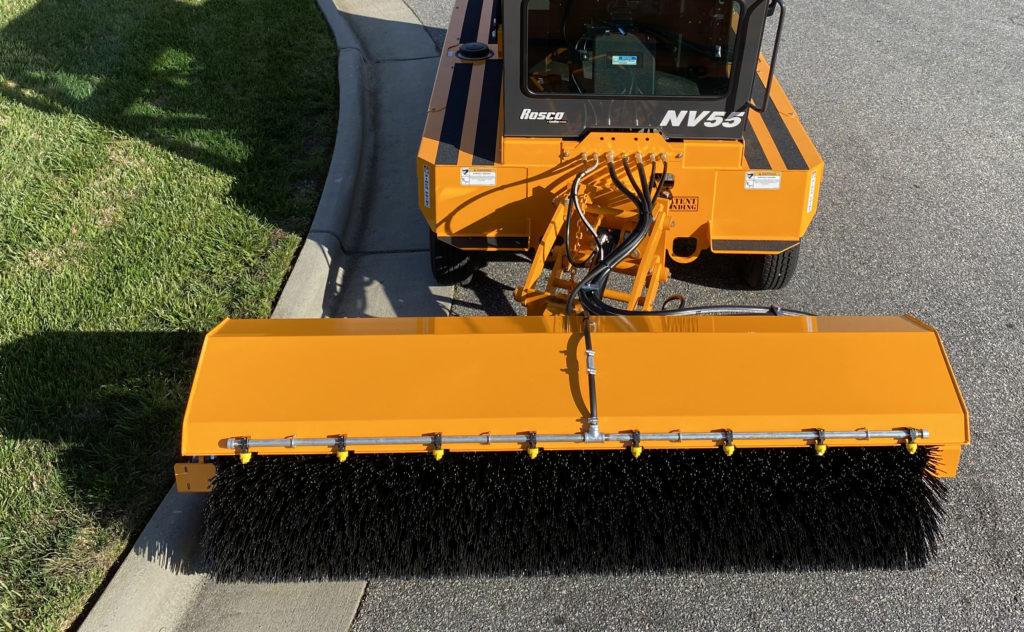

Brush

  • Joystick control
  • Variable down pressure and speed control
  • Speed: 160 rpm max, variable by dial or engine speed
  • Drive mechanism consists of direct hydraulic motor enclosed in broom core
  • Quick change brush system
  • Filter:  tube type, poly, 32” diameter, 7’ 6” long
  • Sweep angle:  30⁰, left or right standard (50⁰ w/side shift option)
  • Speed:  160 rpm max, variable by engine speed

Brush Frame

  • 7’ 6” x 32” diameter poly tube
  • Sweep angle: 30° left or right standard (50° w/side shift option
  • Heavy-duty 11 gauge steel brush cover with 4" x 4" x 0.25" steel tube brush frame

Cab

  • Fully enclosed, ROPS cab with air conditioner, heater and defroster
  • Padded suspension seat with arm rest and safety belt
  • Full-width front window, dual west coast style mirrors w/additional convex safety and center rearview
  • Sliding side window
  • Front windshield wiper
  • Dome light
  • 12V DC power outlet
  • 2-speed defrost fan
  • Manual box
  • Cup holder

Additional Standard Equipment

  • Two LED head lights
  • Two rear LED work lights
  • LED stop, tail and turn signals
  • Amber LED strobe light
  • Back-up alarm
  • Horn
  • Slow-moving vehicle sign
  • Vandalism package

Optional Equipment

  • Side shifting brush head, 18” left and right
  • Cab air filtration and pressure monitor system (MERV 16 rated)
  • Two 75 gallon water tanks with spraying system
  • Forward/reverse brush rotation
  • Front windshield washer
  • Rear wiper and washer assembly
  • Spare tire and mount
  • Back-up/reverse camera with in-cab color display
  • Radio/CD/Bluetooth with dual speakers and remote
  • Telescoping steering column, tilt is standard
  • Extended air intake (above cab)
  • Foot pedal transmission, forward and reverse, in lieu of joystick controls
  • Self-loading brush core system, 32/36 OD, 72-96” length
  • Combination poly wafers (in lieu of poly tube)
  • Combination poly/steel wafers  (in lieu of poly tube)
  • Poly/steel tube brush  (in lieu of poly tube

Training, Support and Company

  • Training and support manuals
  • Optional on-site operator training by Dealer
  • Two-year, unlimited hours warranty against any manufacturer defects
  • Extended warranty available
  • 55+ years manufacturing experience
  • ISO 9001 Certified
  • Sourcewell Contract#052417-VTL
  • Manufactured in the USA

Job Application

  • Production sweeping
  • Municipal work
  • Recycling center
  • Waste facilities

Key Features

  • Rear steering
  • Quick-change brush system
  • 4' 2" foot turning radius
  • Great visibility
  • Variable brush down-pressure control
  • Optional Side-Shift Broom, 18" Left and Right
