• L: 34’ (10.36 m) W: 8’ 6” (2.59 m) transport

  • Tier 4 Final - 130 hp (97kw)

  • Weight: 20,140 lbs (9,135 kg)

Dimensions

  • Length: 34’ (10.36 m) with 28’ (8.53 m) straight conveyor 40’ (12.19 m) with swivel attached
  • Width: 8’ 6” (2.59 m) transport
  • Height: 11’ 7.5” (3.54 m) minimum 12’ 11” (3.93 m) maximum

Weight

  • Total: 20,140 lbs (9,135 kg)
  • Front: 10,020 lbs (4,544 kg)
  • Rear: 10,120 lbs (4,590 kg)
  • Total: 23,500 lbs (10,659 kg) with swivel
  • Front: 7,300 lbs (3,311 kg) with swivel
  • Rear: 16,200 lbs (7,348 kg) with swivel

Engine

  • 130 hp (97kw) Cummins diesel
  • Type: Four stroke turbo charged, in-line, 4-cylinder, Tier 4F diesel engine
  • Air cleaner: Heavy-duty dual element air filter with precleaner and a restriction indicator
  • Electrical system: 12 volt with 130 Amp alternator
  • Batteries: Two 12 volt, 835 CCA (each)

Drive

  • Hand operated servo controlled, variable speed hydrostatic pump with internal pressure override
  • Variable speed hydrostatic motor
  • Dana heavy-duty off road, two-speed gear box and no spin differentia

Tires

  • Front tires: 9R x 22.5, 12 ply
  • Rear tires: 14 x 24, 16 ply

Brakes

  • Service brakes are hydrostatic dynamic braking
  • Secondary brakes are foot operated, power assisted wet disc
  • Parking brakes are spring applied hydraulically released wet disc

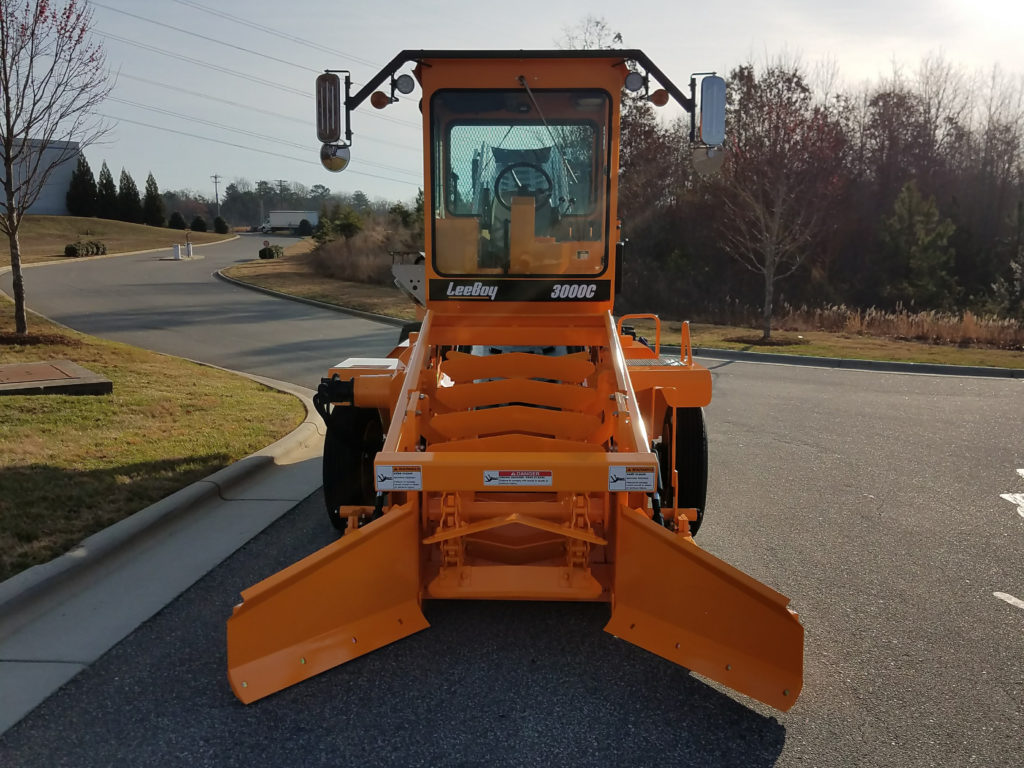

Moldboard

  • Tapered moldboard with replaceable cutting edges and factory set 7’ (2.13 m) operating system
  • Float position provided and hydraulically raised, lowered and tilted
  • Multi-purpose auger moldboard - OPTIONAL

Steering

  • Hydraulic power steering

Capacities

  • Fuel tank: 52 gallons (197 l)
  • Cooling system: 5.5 gallons (21 l)
  • Hydraulic reservoir: 52 gallons (197 l)
  • Diesel exhaust fluid: 5 gallons (18.9 l)

Feeder Assembly

  • Replaceable paddles attached to a chain assembly driven by a hydrostatically operated gear reduction and drive shaft/sprocket assembly
  • Feeder chain assembly has float capability
  • Paddle size: 3’ (.914 m) wide x 6” (.152 m) high

Instrumentation

  • Low engine oil pressure, high engine temperature alarm/shut down
  • Voltmeter
  • Fuel gauge
  • Oil pressure gauge
  • Tachometer gauge
  • Water temperature gauge
  • Hour meter
  • Air filter restriction indicator
  • Hydraulic sight level and temperature gauge
  • Diesel exhaust fluid gauge

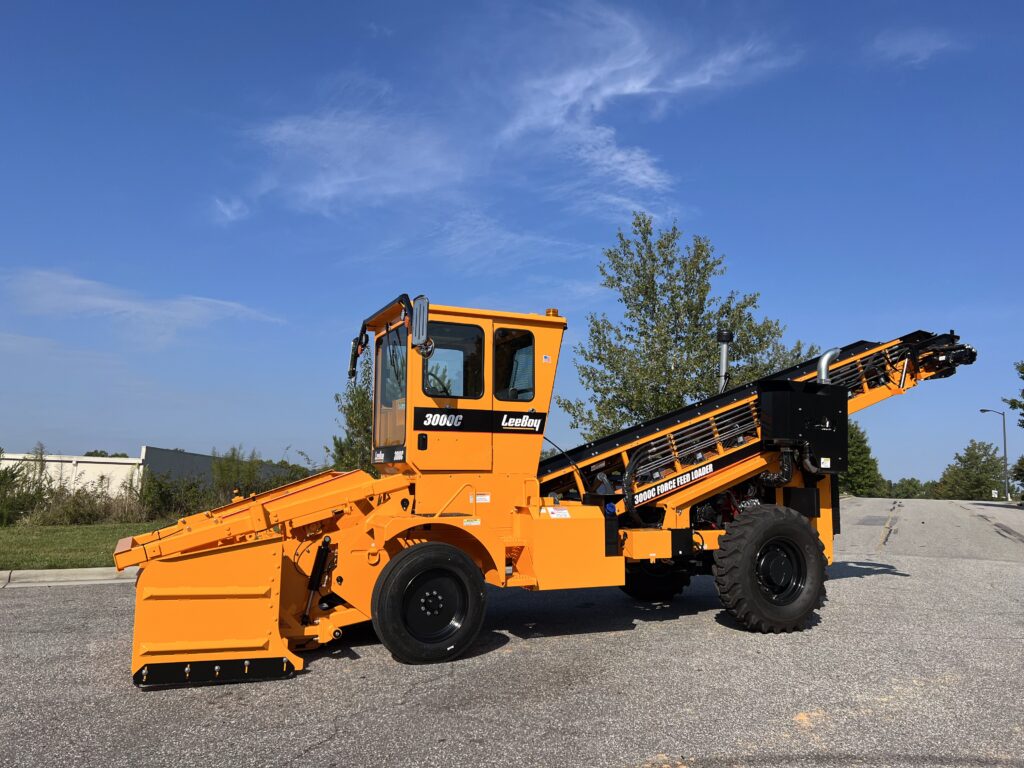

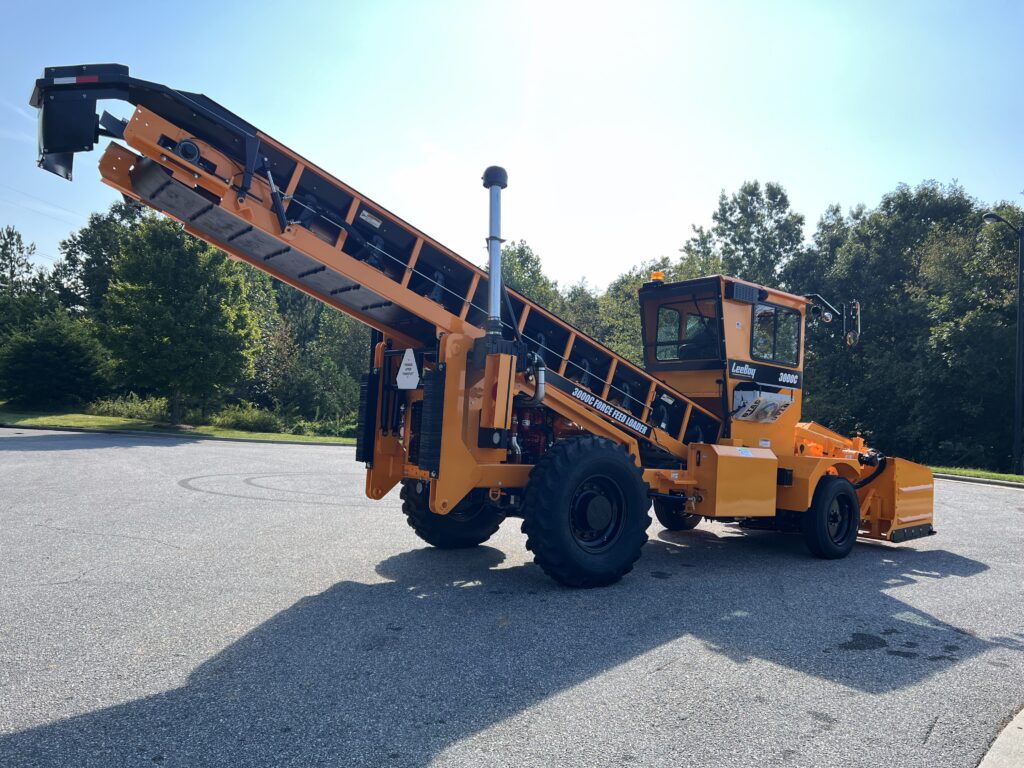

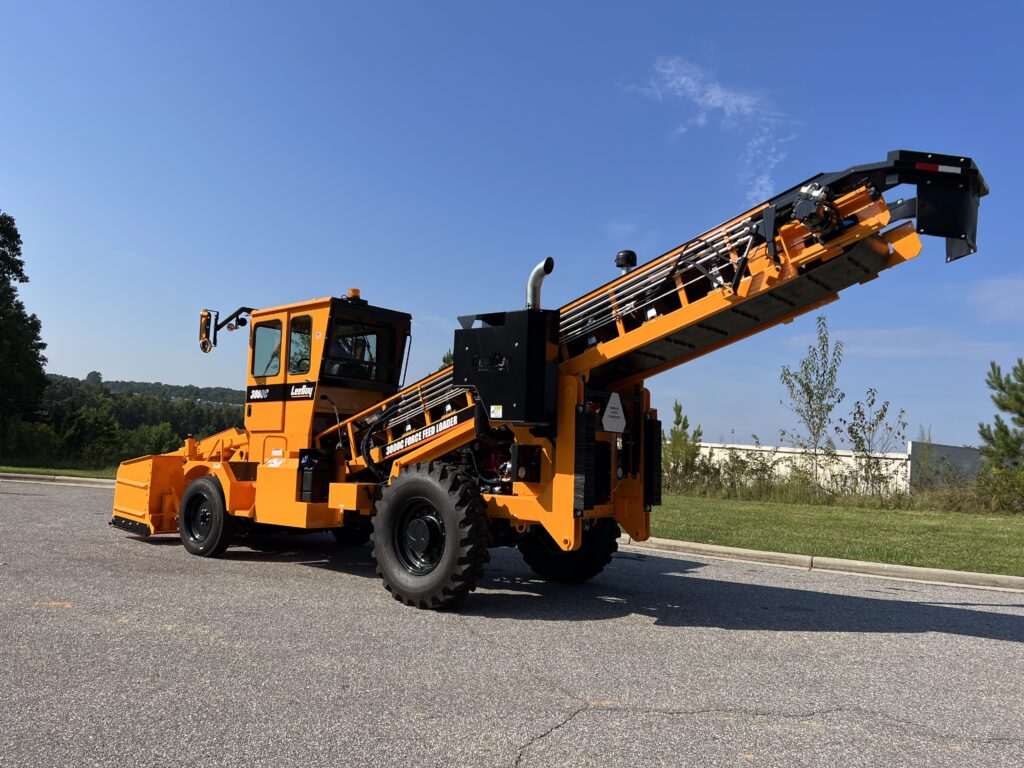

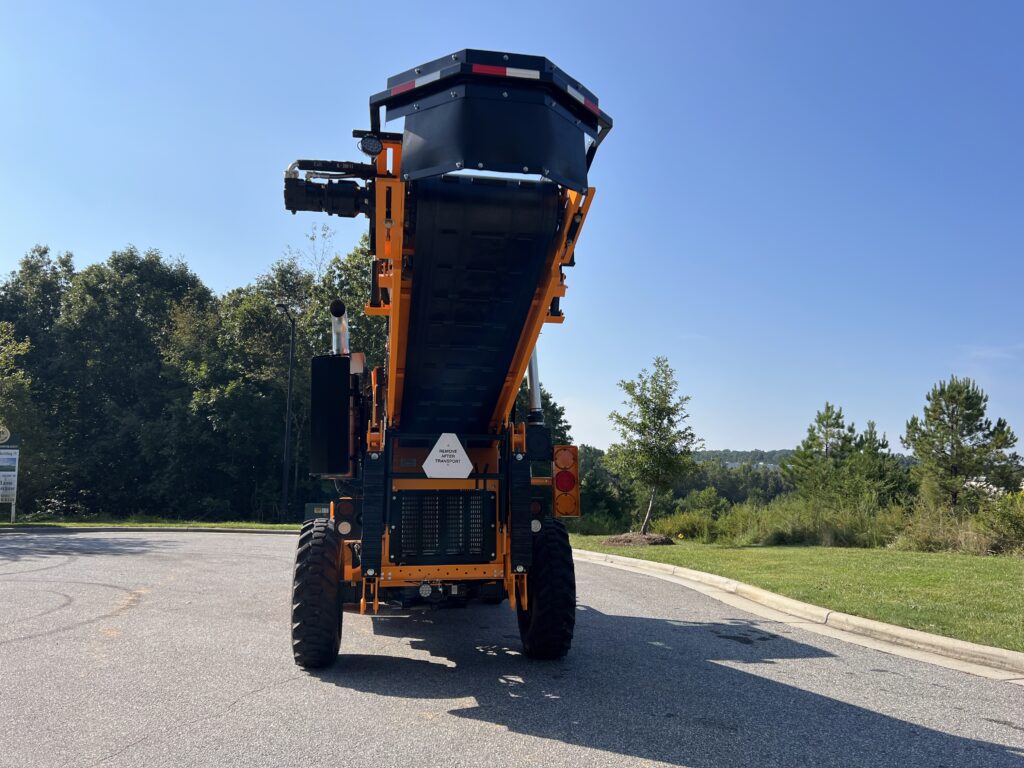

Conveyor

  • Hydraulically raised and lowered
  • Belt is a heavy-duty, reversible, 2-ply polyester cord carcass with rubber covers
  • Includes 1” (.254 m) rubber cleats
  • Independently controlled for variable speed
  • Conveyor length: 28’ (8.534 m) standard
  • Belt width: 30” (.762 m)
  • Belt speed: 0 to 600’ per minute (182 mpm)

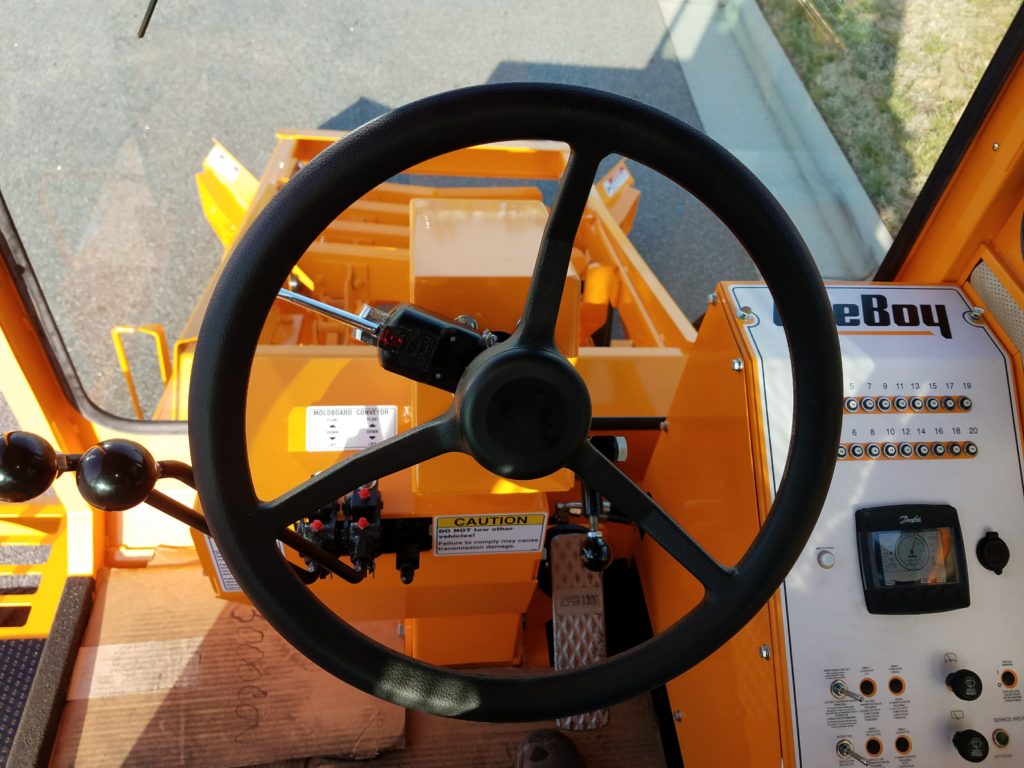

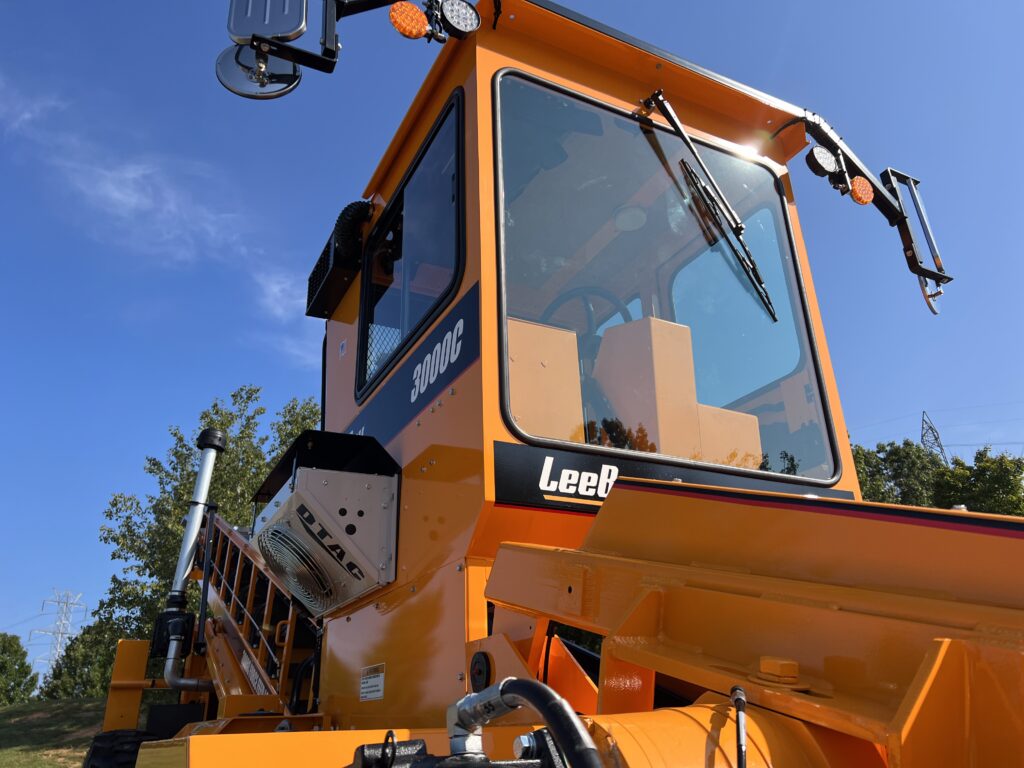

Operator's Area

  • Fully-enclosed cab included safety glass
  • Front and rear wiper and washer
  • Deluxe seat with safety belt
  • Instrument Panel
  • Sound suppression
  • Tilt console

Optional Equipment

  • Heating/air conditioner
  • LED night operating lights (4 lights)
  • Truck signal light
  • Radio/CD/speaker, cab install
  • 180 degree swivel conveyor
    - 180 degree rotation
    - Hydraulically raised and lowered
    - Belt is a heavy-duty, 2ply polyester cord carcass with rubber covers
    - Includes 1” (25.4 mm) rubber cleats
    - Conveyor length: 8’ (2.43 m)
    - Belt width: 30” (.76 m)
    - Belt speed: 539’ per minute (164 mpm)
    - Swivel conveyor stands optional

Additional Standard Equipment

  • Lockable cab
  • Convex and west coast style mirrors
  • Fail safe brakes system
  • Cold weather engine package (block heater and glow plugs)
  • Fuel/water separator
  • Front fenders
  • Head lights and turn lights
  • Safety beacon
  • Back-up alarm
  • Vandalism protection
  • Rear window guard
  • Horn

Training, Support and Company

  • Training and support manuals
  • Optional on-site operator training by Dealer
  • One-year, unlimited hours warranty against any manufacturer defects
  • Extended warranty available
  • 50+ years manufacturing experience
  • ISO 9001 Certified
  • Manufactured in the USA

Job Application

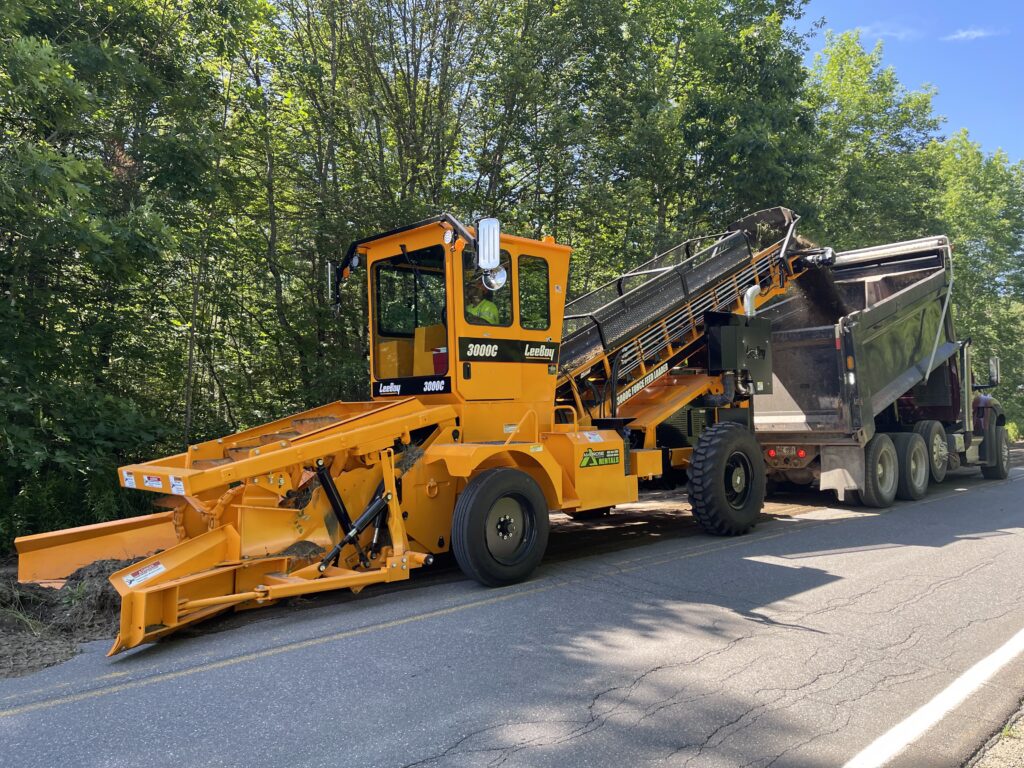

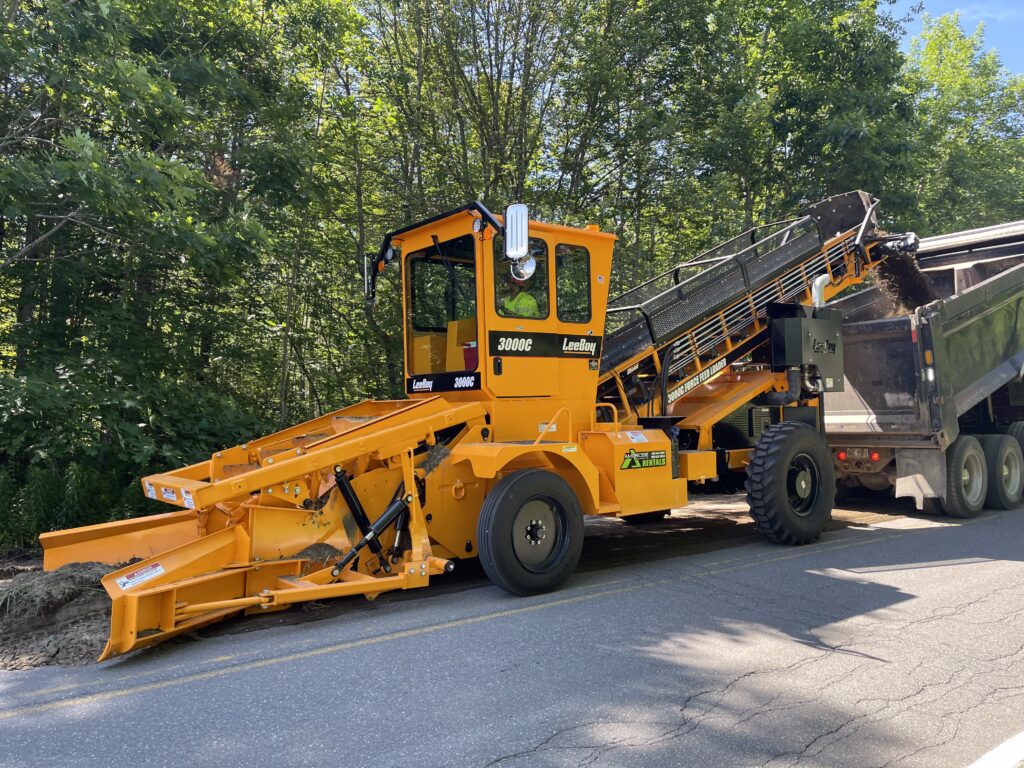

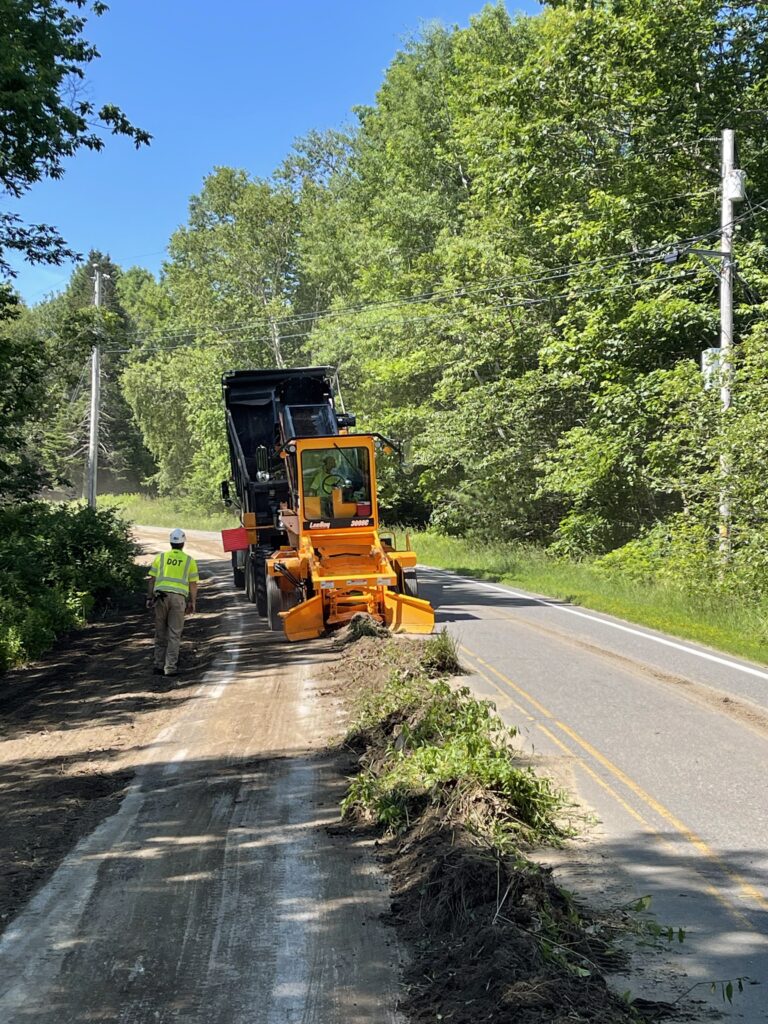

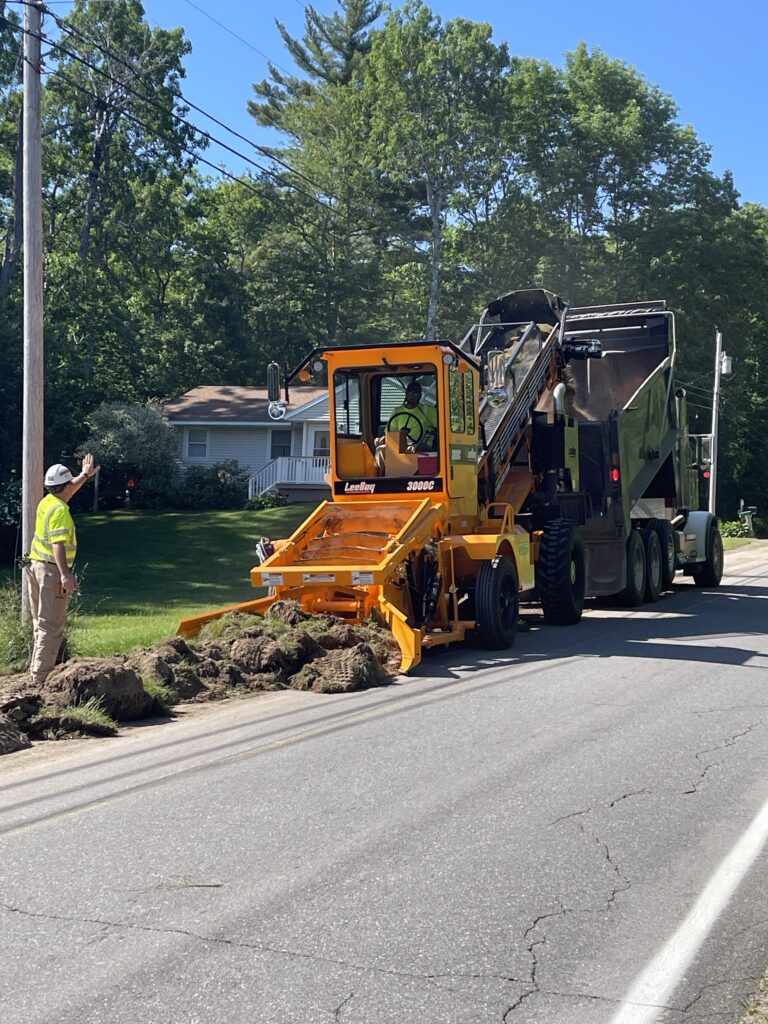

  • Ditch and berm cleaning
  • Snow removal
  • Leaf pick-up
  • Railroad ballast pick-up
  • Any windrowed material

Key Features

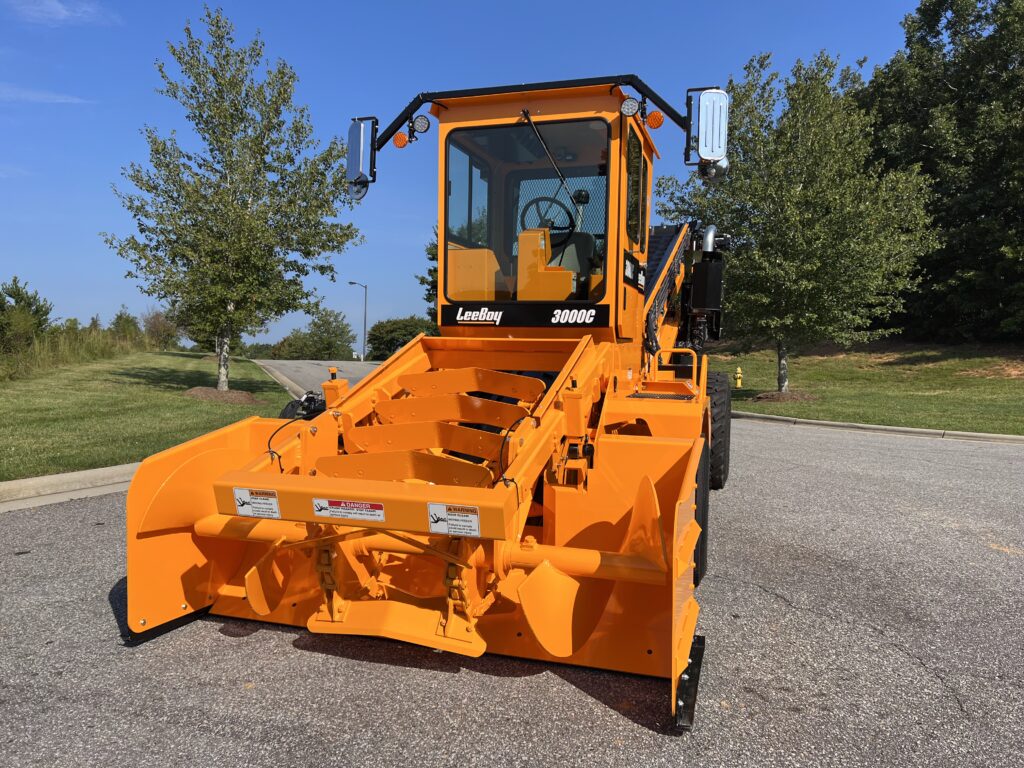

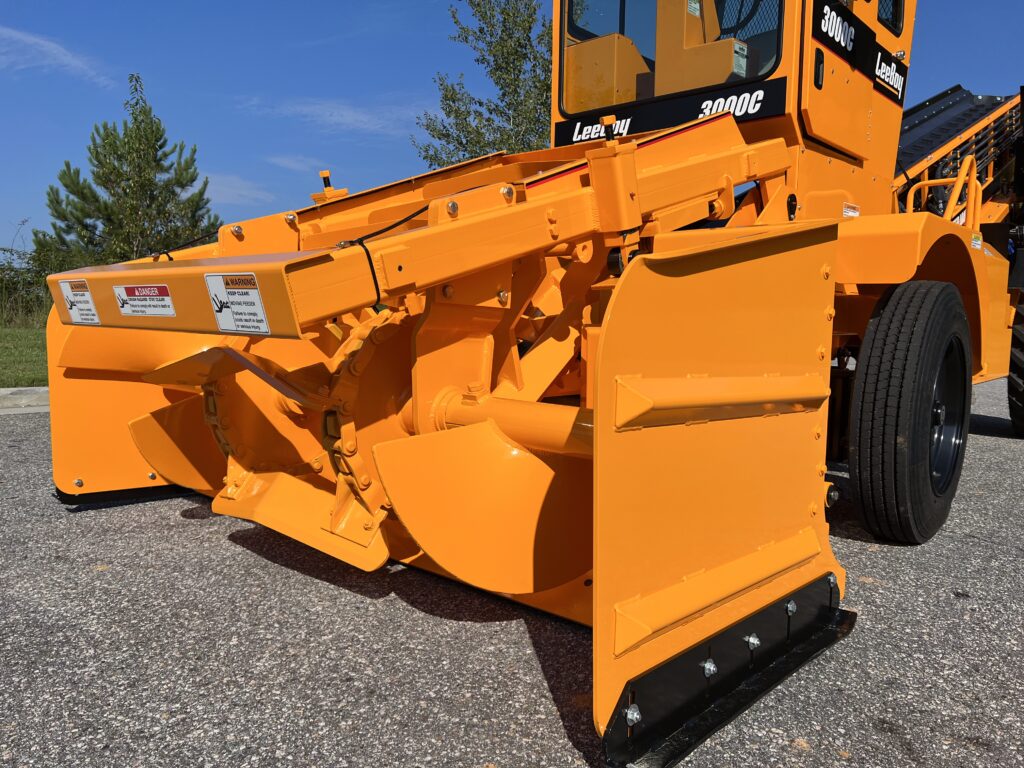

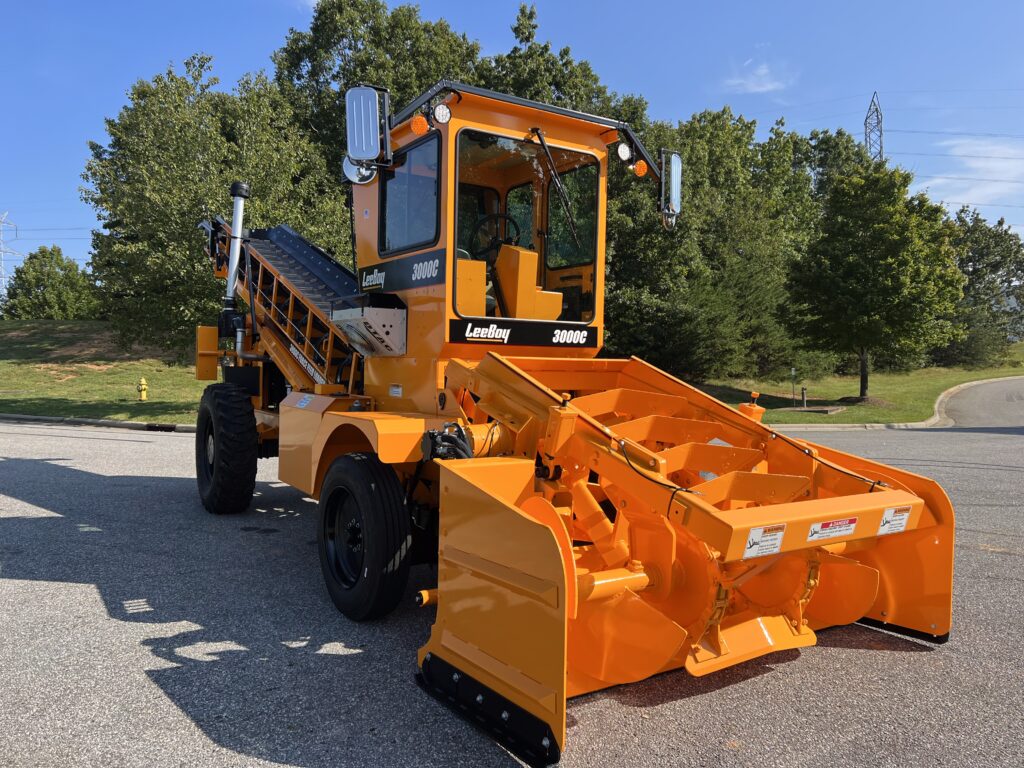

  • Choice of utility or snow head
  • Heated and air conditioned cab
  • Swing boom for side loading
  • Loads into tri-axle trucks
  • Heady-duty paddle and convey
