Tier 4 Final – 64 hp (48 kw) @ 2,400 rpm
Weight (with screed): 13,000 lbs. (5,897 kg)
Paving Widths Variable Up To 13’ (3.9m)
Dimensions
- Length: 11’ (3.35 m)
- Width: 8’6” (2.59 m) transport
10’ (3.05 m) hopper wings down - Height: 7’ (2.13 m), adjustable to 6’4” (1.93 m)
- Total Weight (with screed): 13,000 lbs. (5,897 kg)
Engine
- Kubota water cooled, turbocharged
- Tier 4 Final – 64 hp (48kw) @ 2,400 rpm
Capacities
- Fuel: 13 gallons (49 l)
- Hydraulic: 40 gallons (151 l)
- Washdown tank: 7.5 Gallons (28.4 l)

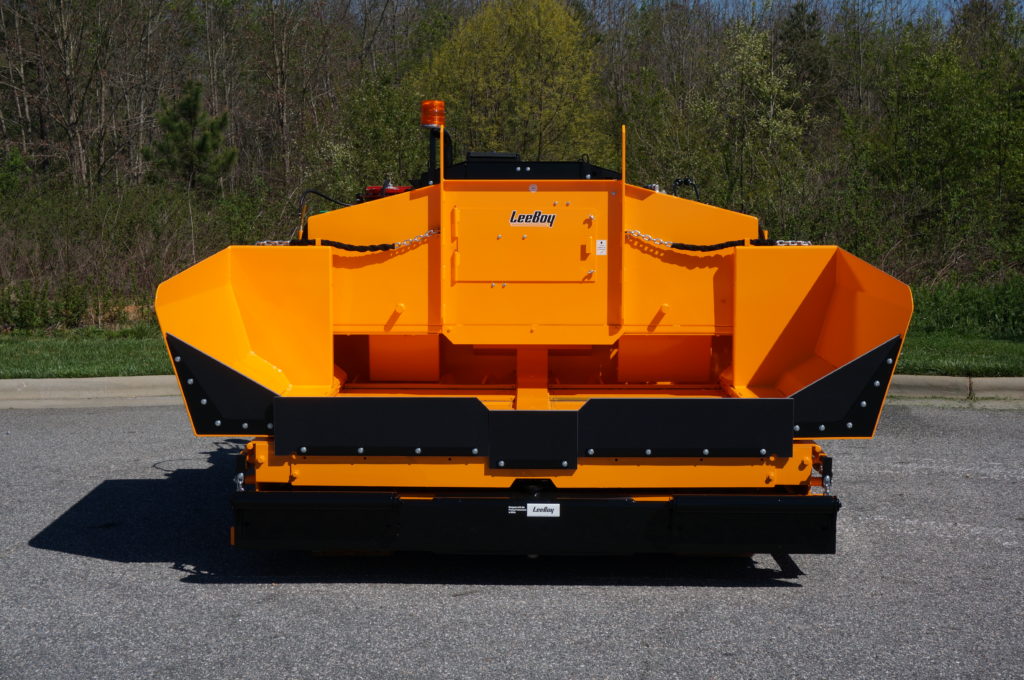

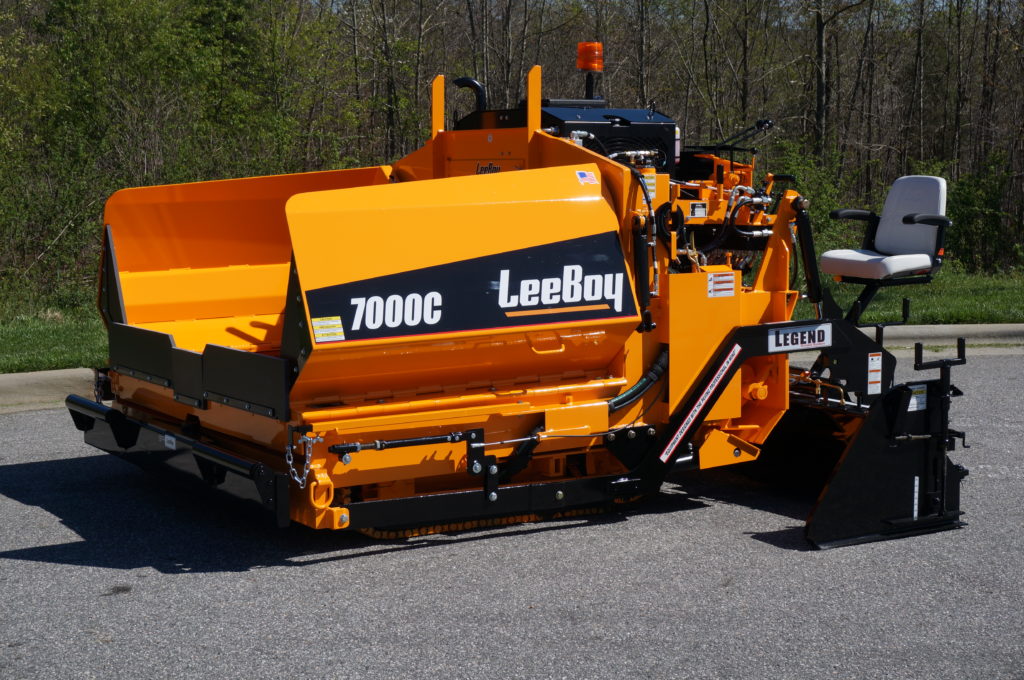

Hopper
- Dual 36” (.914 m) feeding conveyors
- Each conveyor is independent with automatic cut-offs
- Hopper is hydraulically raiseable to allow for cleaning and service
- Hopper size: 6 ton (5,443 kg)
- Hopper height: 22” (.559 m)
Paving Widths
- Variable up to 13’ (3.92 m)
Paving Depths
- Includes manual flights screws positioned on the screed
- Depth: 0” to 6” (.152 m)
- OPTIONAL: Electrically operated thickness screws with toggle switches connected to a heavy-duty coil cord to allow operation from either side of the paver

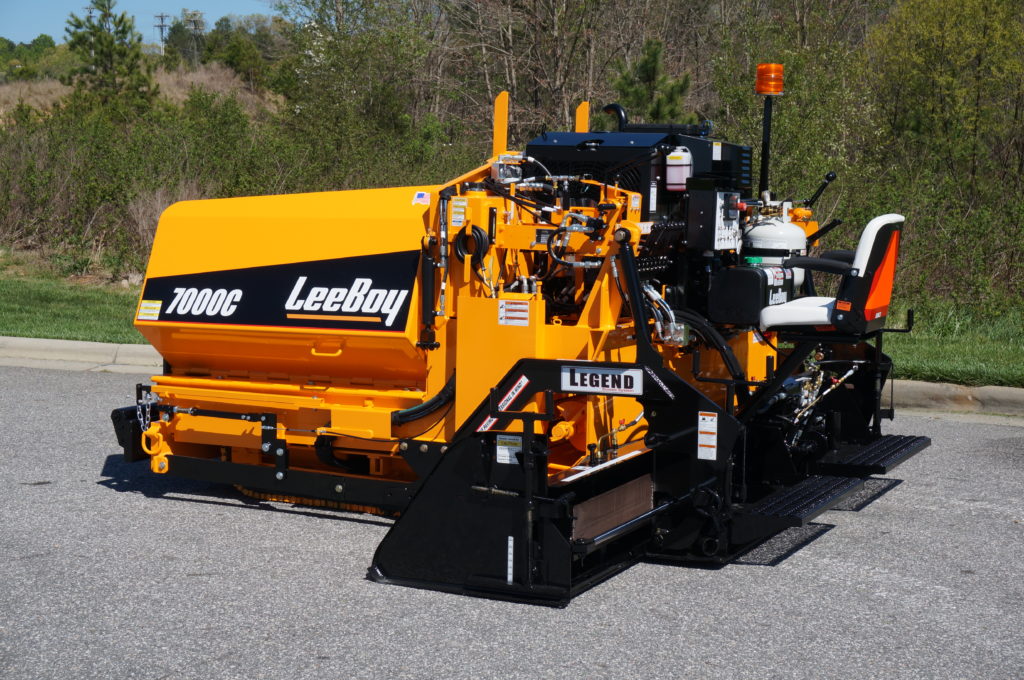

Screed
- Propane screed standard, weight: 1,775 lbs
- Legend full free floating 19” (.483 m) screed, consisting of a 13” (.330 m) by 8’ (2.438 m) wide main screed
- Constructed of .375” (.010 m) AR 400 bolt-on wear plates for easy replacement
Screed Extensions
- Two 44” (1.118 m) screed extensions hydraulically actuated to a width of 13’ (3.96 m)
- To eliminate seams, the heated extensions are mounted flush with the main screed and are adjustable with the angle of attack
- Includes replacement .25” (.006m) AR 400 bottom wear plates
Screed Heat
- Two 54,000 BTU propane burners on main screed
- Each extension has one 36,000 BTU propane burner
- One 36,000 BTU burner ignitor
Screed Vibration
- Equipped with a hydraulic vibrator capable of producing 1,800 vibrations per minute
Screed Crown/Invert
- Equipped with a crown/invert adjustment allowing at least 2” (.051m) of crown and 1.5” (.038 m) of valley
- Includes a leveling indicator for the operator to know when the screed is level
Screed End Gates
- Equipped with vertical height adjustment and tilt
Under Auger Material Cutoff
- Two independent hydraulically operated 4' (0.051 m) wide gates located under the augers and constructed of at least .375" (.009 m) A-36 plate steel
Material Augers
- Two independently automatically or manually operated hydraulic casted segmented augers constructed with .625” (.016 m) AR 4140 HT (heat treated) steel with replaceable flights
- Augers are 9” (.229 m) diameter
- Unit is wired for sonic auger controls
Operator’s Platform
- Full machine width platform with left hand seat

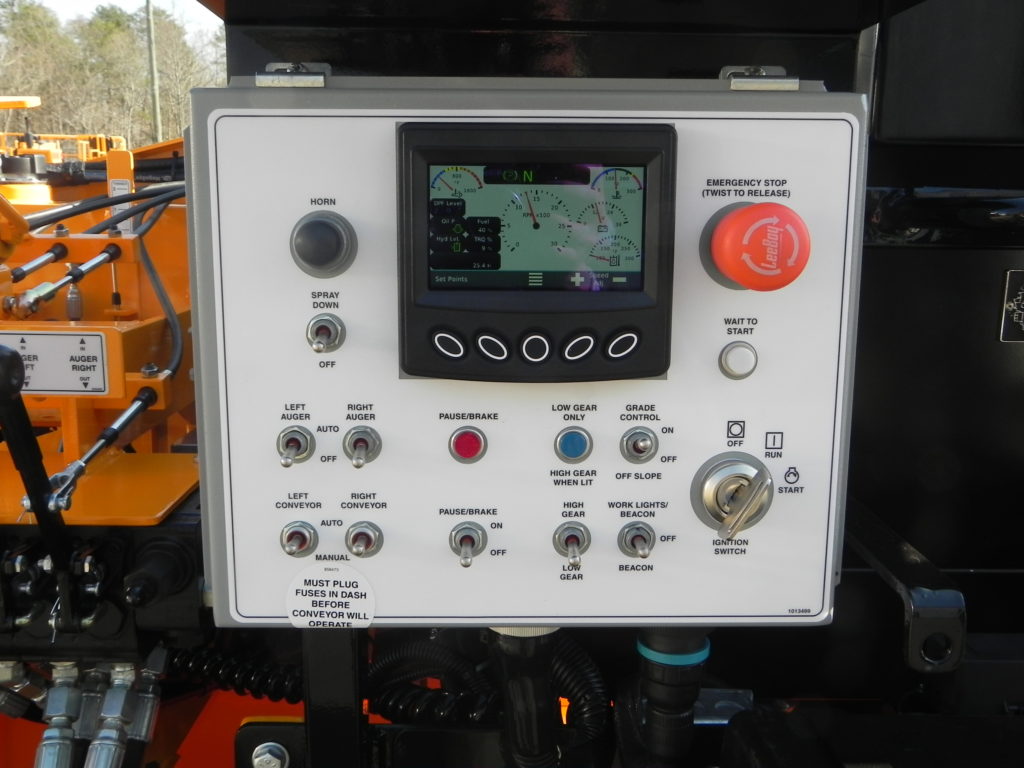

Operator’s Controls
- All control levers are on the left side
- Right side levers include left and right drive control, right auger, right screed extensions
- Includes a horn and back-up alarm
Steering
- Independent hydrostatic steering from the left to right side of machine
Washdown System
- Electric HD pump with one 22’ x .375” (6.706 x .009 m) and one 15’ x .375” (4.572 x .009m) diameter hose
Hydraulic System
- Variable volume hydraulic pumps for each drive
- A constant volume pump for conveyors and a constant volume pump for all other hydraulic functions
- Equipped with hydraulic oil cooler
- Hydraulic reservoir: 40 gallons (151 l)
Push Rollers
- Two 3” (.076 m) diameter rollers with sealed bearings mounted on swivel frame

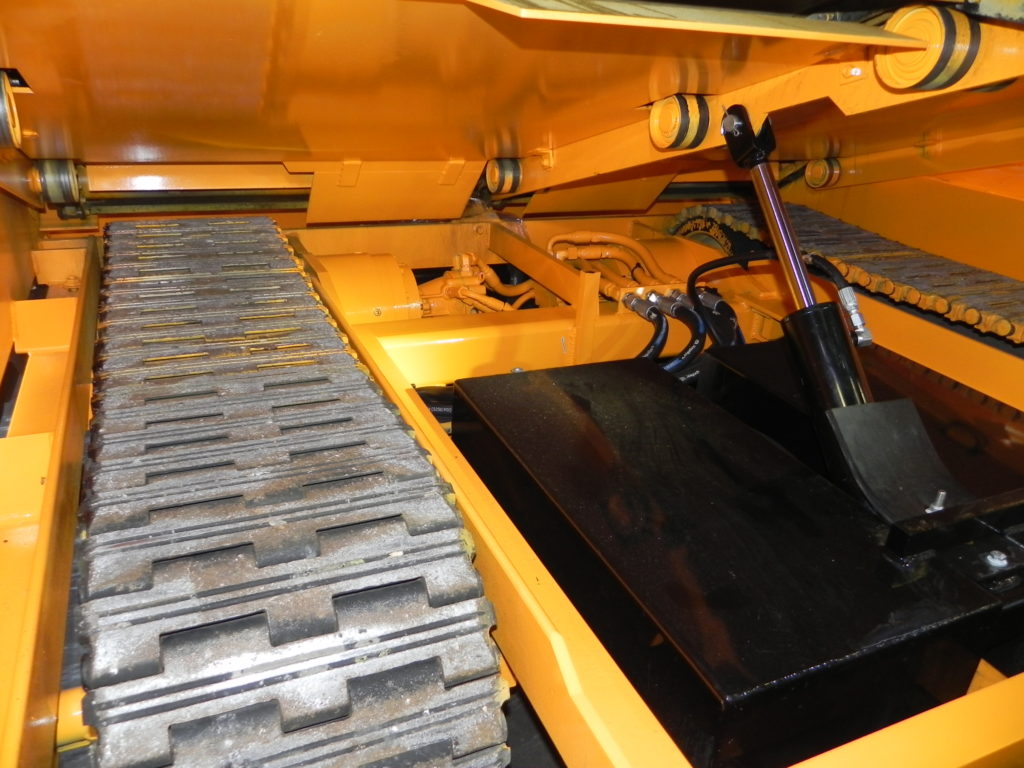

Track Drive System
- Hydrostatically powered, self-cleaning friction drive tracks consisting of two drive tires, one roller and hydraulically adjustable front idler
- Drive mechanism consists of two torque hubs for variable speeds
- Track size: 14” wide x 5’ long (.356 x 1.524 m) steel
- Paving speed: 0 to 210’ per minute (2.4 mph)
- Travel speed: 0 to 210’ per minute (2.4 mph)
Additional Standard Equipment
- Back-up alarm
- Rotating safety beacon
- Gauge package (electronic Murphy PU480 display containing oil pressure, voltmeter, fuel)
- Glow plugs
- Wired for sonic auger, sensor and cords
Optional Equipment
- Truck hitch
- Failsafe brake with anti-creep
- Slope meter
- Second seat
- LED work light package
- Sonic auger, sensor and cords
- Hose reel, limited to one
- Electric screws for grade controls
- Wiring only, grade controls (TopCon), includes A/M modules
- Sonic grade control, one side (TopCon)
Training, Support and Company
- Training and support manuals
- Optional on-site operator training by Dealer
- One-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 50+ years manufacturing experience
- ISO 9001 Certified
- Manufactured in the USA
Job Application
- Parking Lots
- Driveways
- Municipal Work
- Subdivisions
Key Features
- Entry-level conveyor paver
- Cost efficient production unit
- Ability to push trucks with this unit for continuous paving
- Easy-to-haul, fits on trailer with other paving equipment
