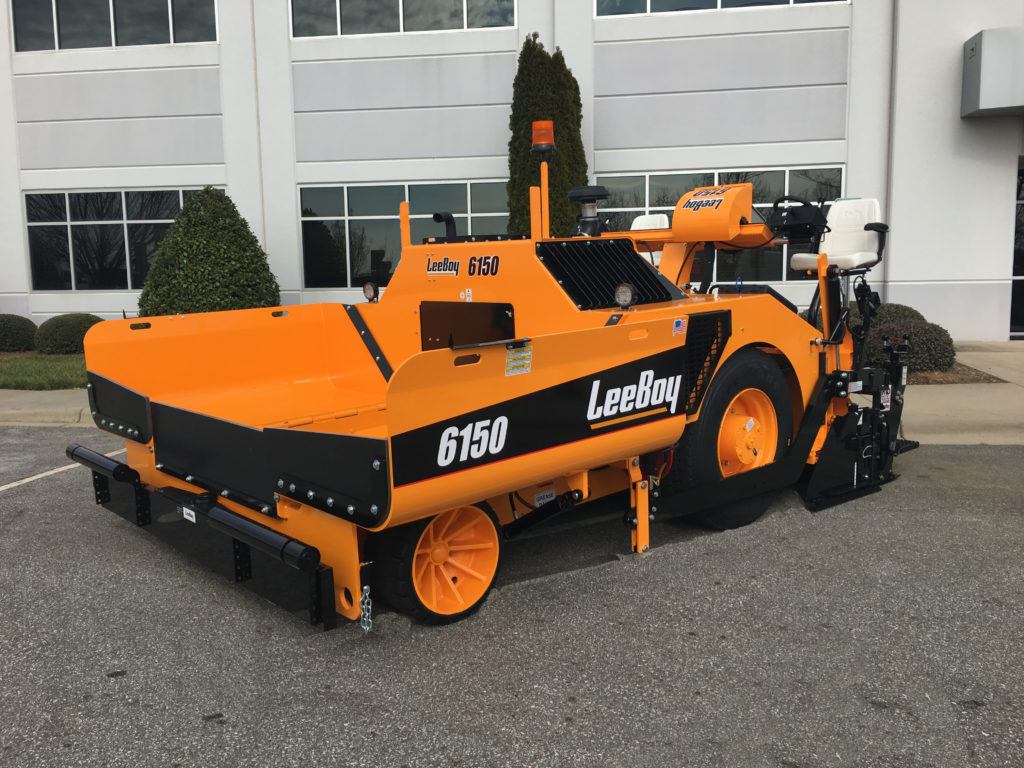

Tier 4 Final – 74 hp (55 kw) @ 2,200 rpm
Weight (with screed): 18,180 lbs. (8,246 kg)
Paving Widths Variable Up To 15’ (4.57m)
Dimensions
- Length: 16’ 6” (5.03 m)
- Width: 8’ 6” (2.59 m) transport
10’ 7” (3.21 m) hopper wings down - Height: 7’ 8” (2.34 m)
- Total Weight (with LP screed): 17,550 lbs. (7,960 kg)
Engine
- Kubota turbocharged diesel
- Tier 4 Final – 74hp (55 kw) @ 2,200 RPM
Capacities
- Fuel: 36 gallons (140 l)
- Hydraulic: 36 gallons (140 l)

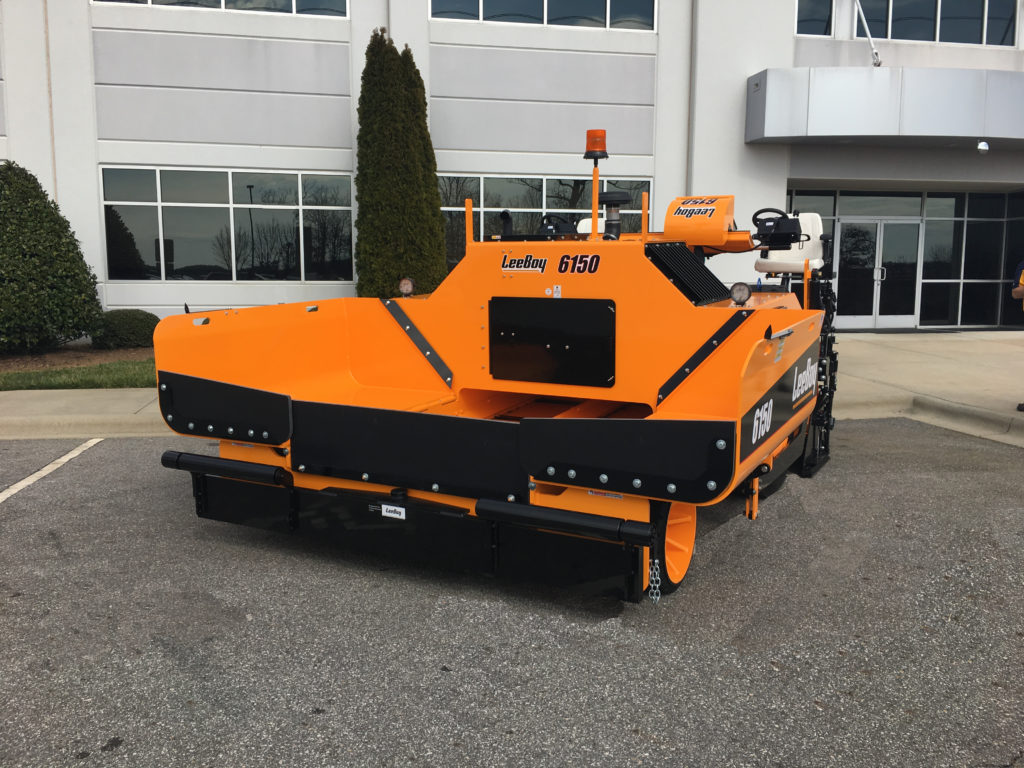

Hopper

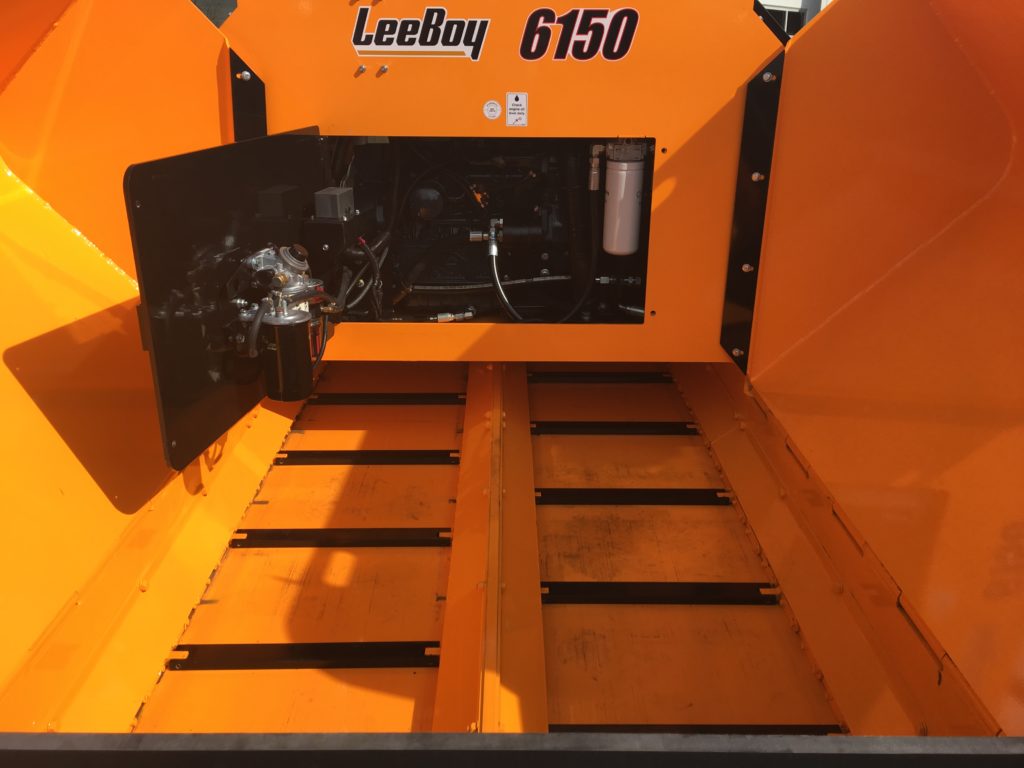

- Conveyor fed

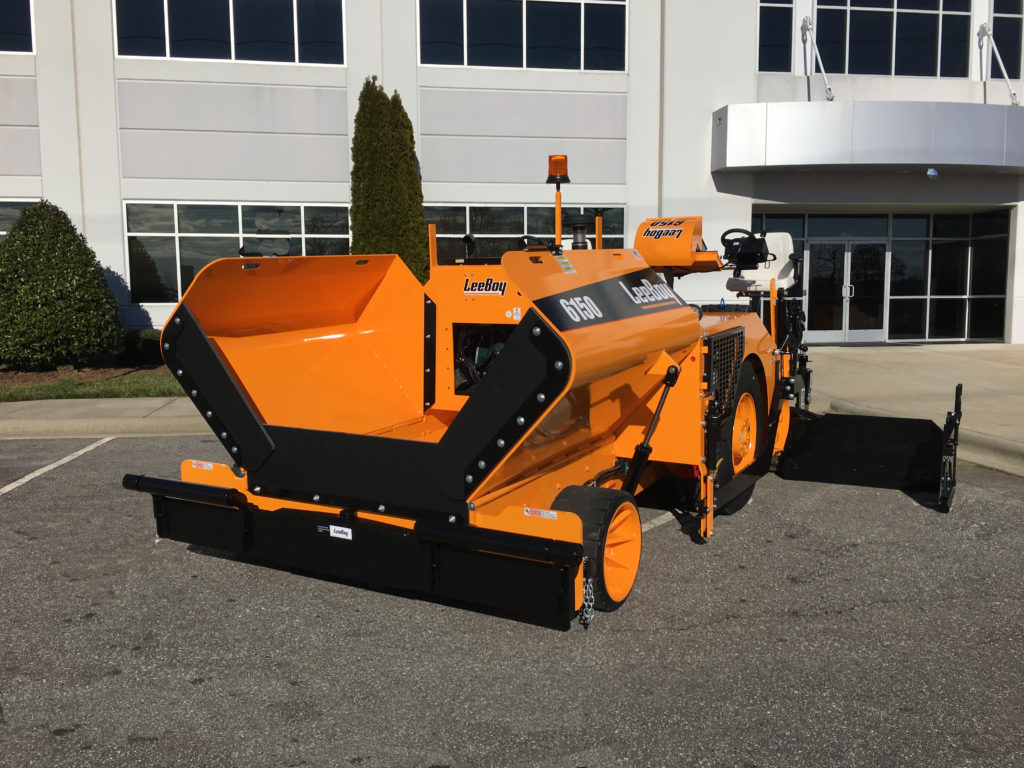

- Side wings hydraulically fold in or out
- Hopper size: 7 ton (6,350 kg)
- Hopper height: 22” (.559 m)
Paving Widths
- Variable paving widths up to 15’ (4.6 m)
Paving Depths
- Depth: 0” to 6” (.152 m)
Screed
- Propane screed standard, weight: 2,510 lbs
- 8’ (2.43 m) main screed
- Constructed of .375” (9.5 mm) AR 400 bolt-on wear plates for easy replacement

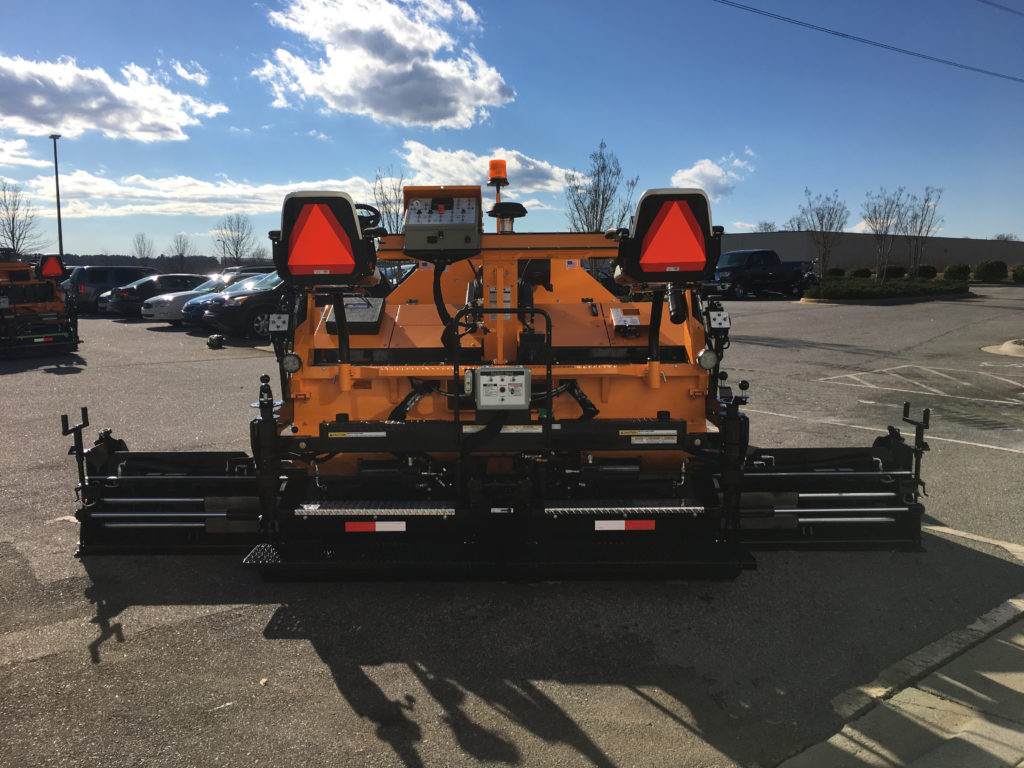

Screed Extensions
- Two 44” (1.18 m) screed extensions hydraulically actuated to a width of 15’ (4.57 m)
- The heated extensions are mounted flush with the main screed and are adjustable with the angle of attack
- Includes replacement .25” (6.35 mm) AR 400 bottom wear plates
Screed Heat
- Two 54,000 BTU propane burners on main screed
- Each extension has one 36,000 BTU propane burner
- One 36,000 BTU burner ignitor
Screed Vibration
- Equipped with two hydraulic vibrators capable of producing 2,000 vibrations per minute
Screed Crown/Invert
- Equipped with a crown/invert adjustment allowing at least 2” (76.2 mm) of crown and .75” (19.05 mm) of valley
- Includes a leveling indicator for the operator to know when the screed is level

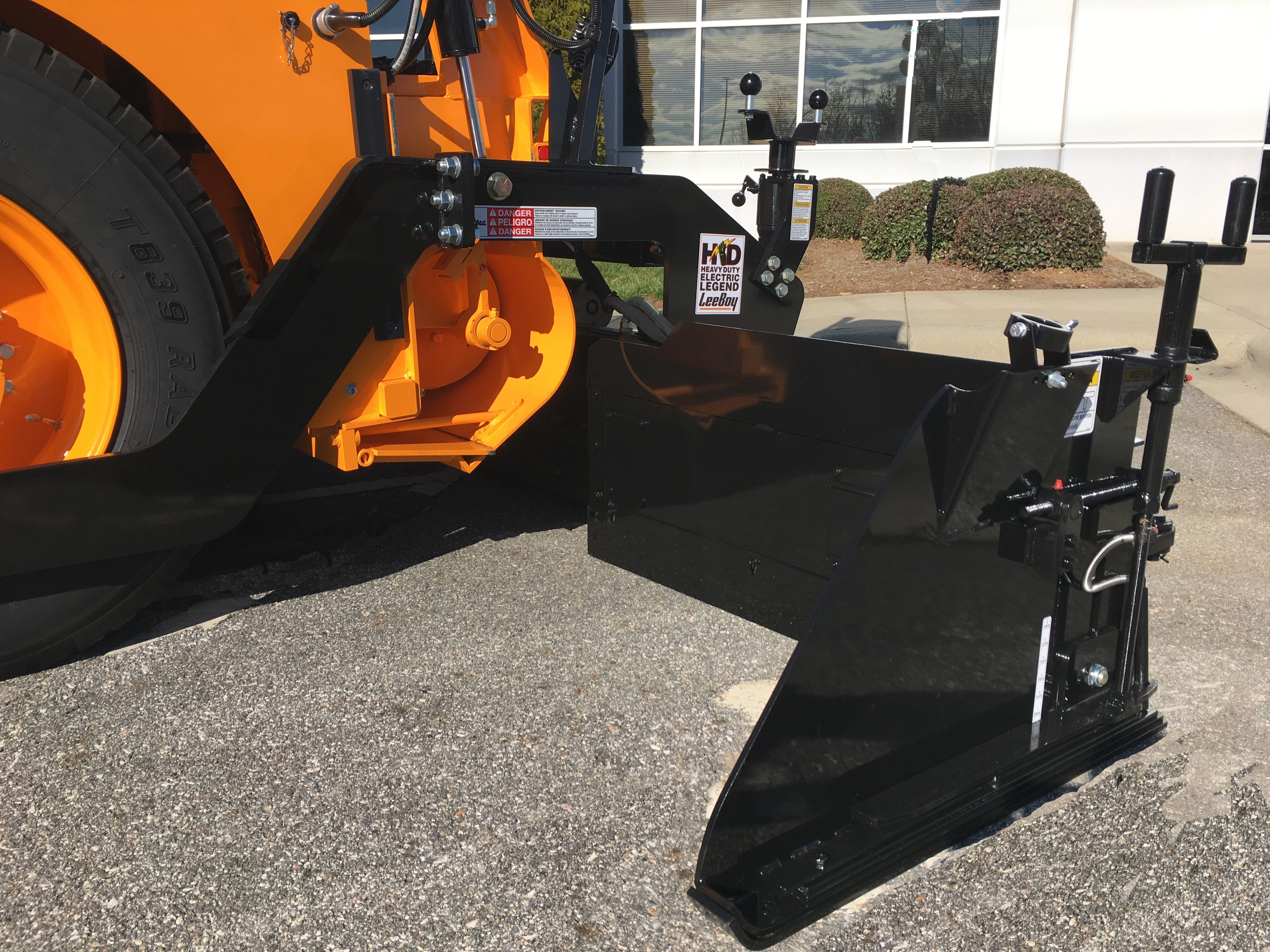

Screed End Gates
- Equipped with vertical height adjustment and tilt
Under Auger Material Cutoff
- Two independent hydraulically operated 4' (0.051 m) wide gates located under the augers and constructed of at least .375" (.009 m) A-36 plate steel
Material Augers
- Two 12” (.305 m) replaceable segmented augers constructed of casted .625” (.016 m) thick Ni-hard steel
- Augers can be controlled automatically by sonic sensors (non-contacting)
Operator’s Platform
- Full machine width platform with dual seats
Steering

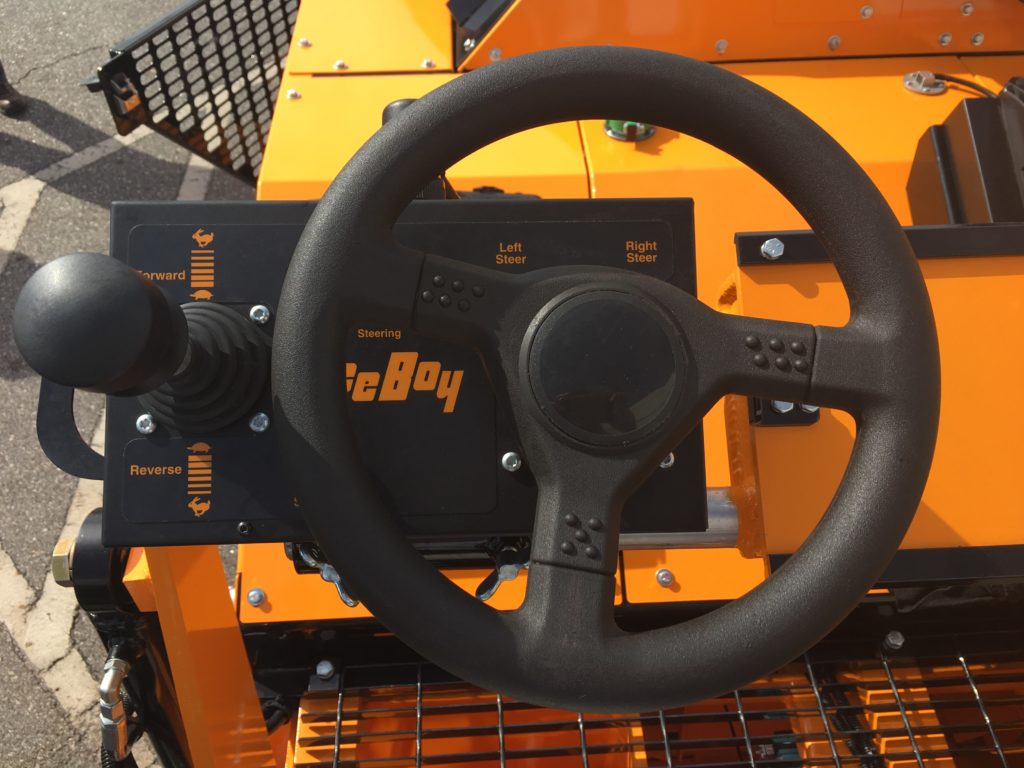

- Dual electronic steering wheels with joystick for forward, reverse operation
- Allows driver control from right or left side of paver
Operator’s Controls
- High deck/low deck configuration
- Dash panel is movable from left to right and contains all machine controls
- Pivot steer and posi-trac
- Equipped with auger and conveyor bypass
- E-stop
Washdown System
- Electric HD pump with two 25’ x .375” (7.62 x .009 m) diameter hose reels and spray nozzles
- Washdown Tank: 7 gallons (26.4 l)
Hydraulic System
- Variable volume hydraulic pumps for each drive
- Fixed volume gear pump for augers and general functions
- Fixed volume gear pump for conveyors
- Fixed volume gear pump for generator and steering
- Hydraulic reservoir: 36 gallons (140 l)
Push Rollers
- Two 3" (0.076 m) diameter rollers with sealed bearings mounted on a swivel frame
- Vertically adjustable push rollers, 7” (.178 m) of height adjustment
Wheeled Drive System
- Hydrostatic drive with 2-speed hydrostatic motors
- Rear: 385/65 R22.5 heavy-duty hydroinflated truck tires
- Front: steerable wheels, 12” x 22” (.304 x .558 m) diameter solid rubber tires
- Paving speed: 0 to 228’ per minute (2.6 mph)
- Travel speed: 0 to 660’ per minute (7.5 mph)
Additional Standard Equipment
- Back-up alarm
- Lockable fuel and hydraulic caps
- Rotating LED safety beacon
- LED work lights
- Electronic gauge package (oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, hydraulic level warning, engine diagnostics)
Optional Equipment
- Electric Legend Plus Screed, variable up to 15’ (4.572 m), 10 kw generator, weight: 2,600 lbs
- Legend 815 Heavy-Duty Electric Screed, variable up to 15’ (4.572 m), 10kw generator, weight: 3,010 lbs
- Remote screed controls
- Automatic screed temperature controls
- Screed extension vibration
- Sloping screed extensions
- Power crown
- Slope meter
- Heated endgates, only available on the Legend Electric and HD Electric Screeds
- 12" (0.304 m) x 4.5” (.114 m) berm extensions, right and left
- Walkboard extensions slide outs, right and left
- Single point lube system, conveyors
- Single point lube system, screed
- Hydraulic tow points
- 3:1 flight screw adjusters
- Horizontal flight screws
- Wiring only, grade controls (TopCon), includes A/M modules
- Sonic grade control, one side (TopCon)
- Dual grade control (TopCon P-32 system)
- Dual grade and slope (TopCon P-32 system)
- Umbrella
Training, Support and Company
- Training and support manuals
- Optional on-site operator training by Dealer
- One-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 50+ years manufacturing experience
- ISO 9001 Certified
- Manufactured in the USA
Job Application
- Overlays
- Patching
- Municipal Work
Key Features
- Quick travel speed, 0 to 660’ per minute (7.5 mph)
- Designed and built with LeeBoy controls, features
- Redesigned, low profile for greater visibility
- Similar components to LeeBoy track pavers
