HB4T
Perfect for the all-inclusive paving contractor and municipalities, the HB4T Hot Box provides a perfectly sized hopper for patching potholes and utility cuts.
Daily tasks can be completed with ease by relying on the trouble-free Beckett burner and the proven reliable user-friendly design. The Hot Box keeps plant material hot and warms cold mix to the optimal working temperature. Uniquely configurable, the customizable options give the contractor the ability
to create a solution specific to their exact needs.

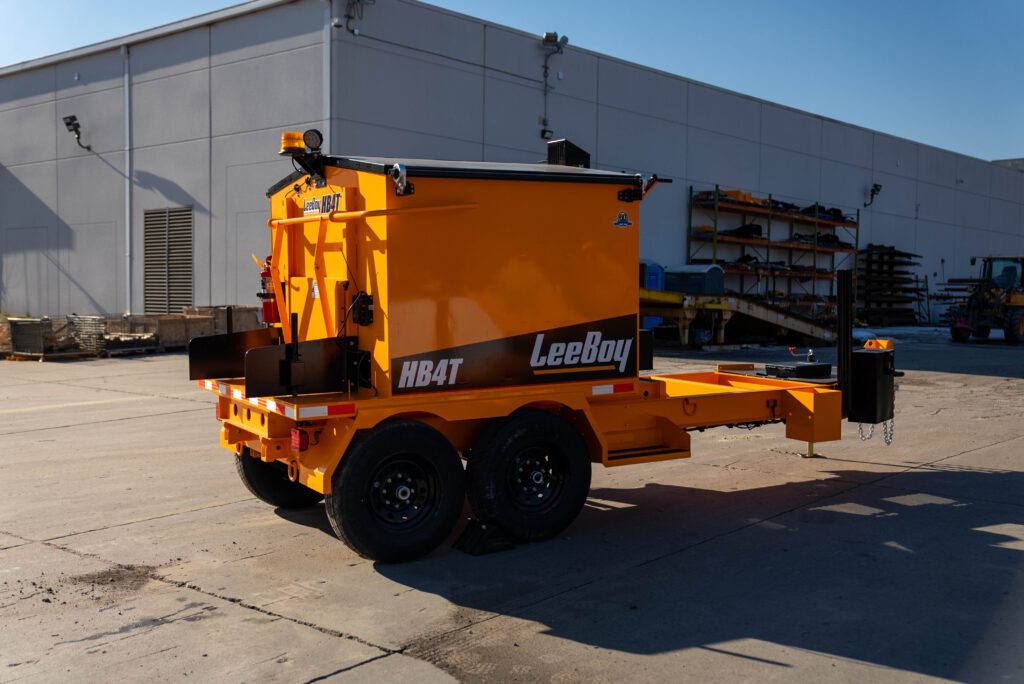

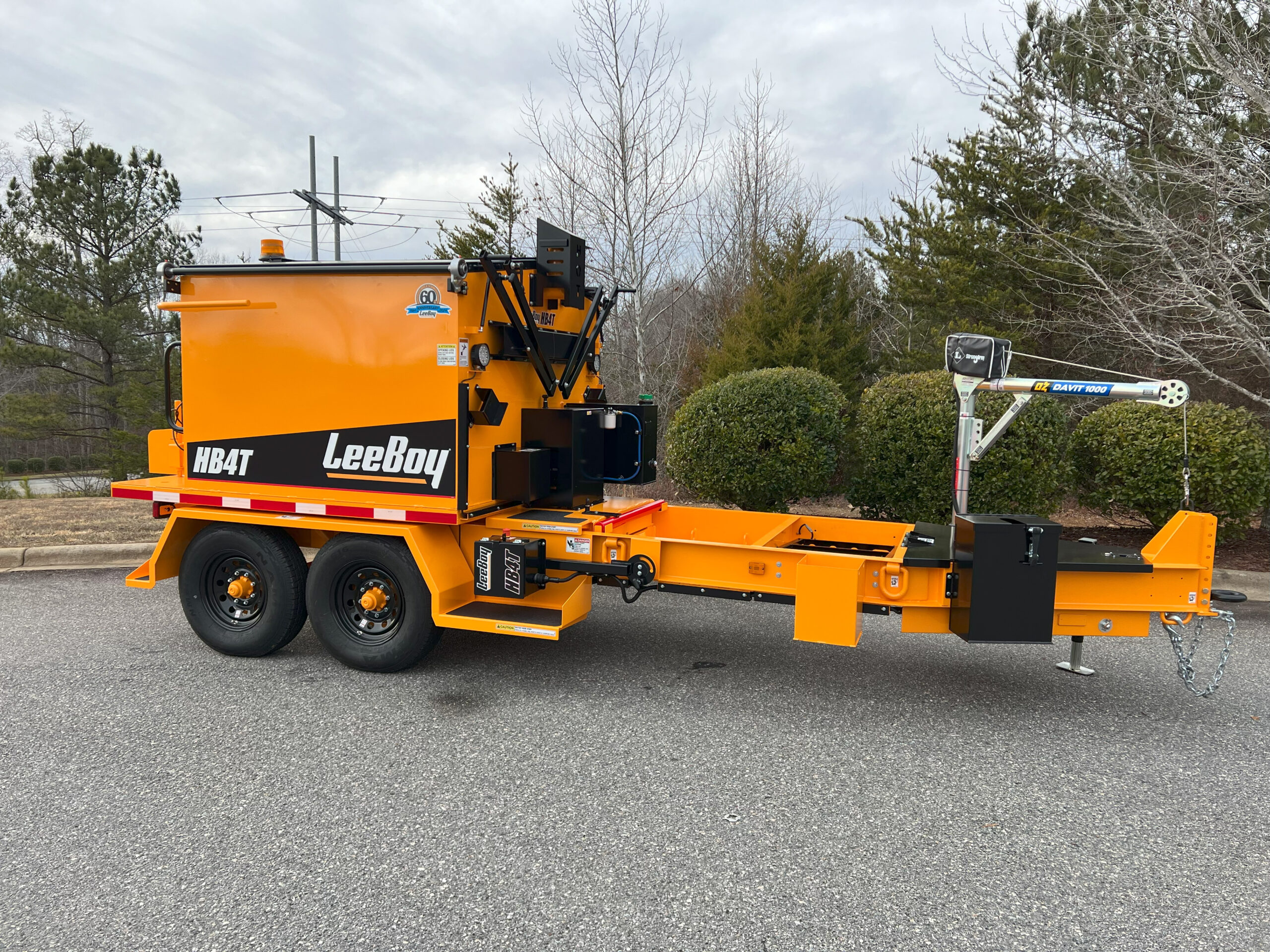

LeeBoy HB4T
Technical Specifications
Dimensions (trailer configuration)
- Length: 17′ 10”
- Width: 6’ 9”
- Height: 7’ 8”
- Shipping Weight: 5,000 lbs
Hopper Dimensions (for trailer configuration)
- Length: 72’’
- Width: 64”
- Height: 51”
- 2’’ Insulation
Material Unloading Doors
- Insulated Guillotine style
- 36.25’’ x 22.25’’ x 1.5’’
- Multi position door
Material Loading Doors
- Dual cantilever door
- 65’’ x 36.68’’ x 2’’
Dump Hoist
- Large single scissor style
- Capacity Range: 6.4-12.9 tons
- Wired remote with magnet
Heat System
- 105,000 BTU diesel burner
- Diesel Tank: 16 gallons
- Thermostatically controlled heating
Overnight Heat
- Thermostatically controlled
Batteries
- One 12.8V 280AH lithium battery
- On-board battery charge
- Battery disconnect switch
