NB25

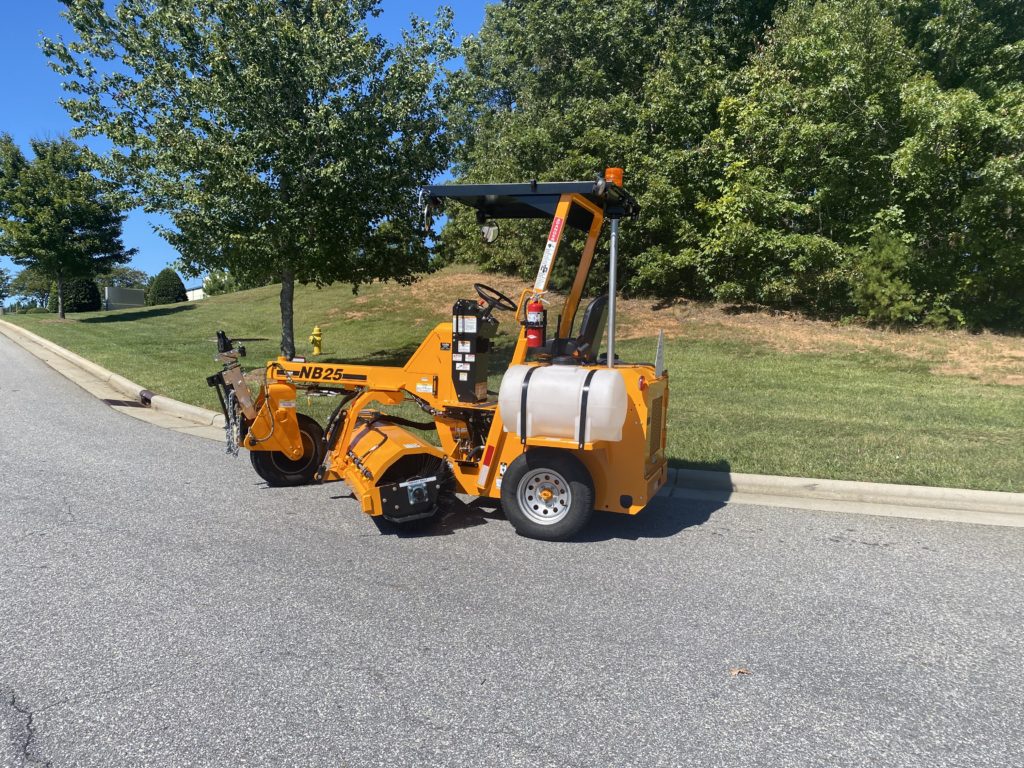

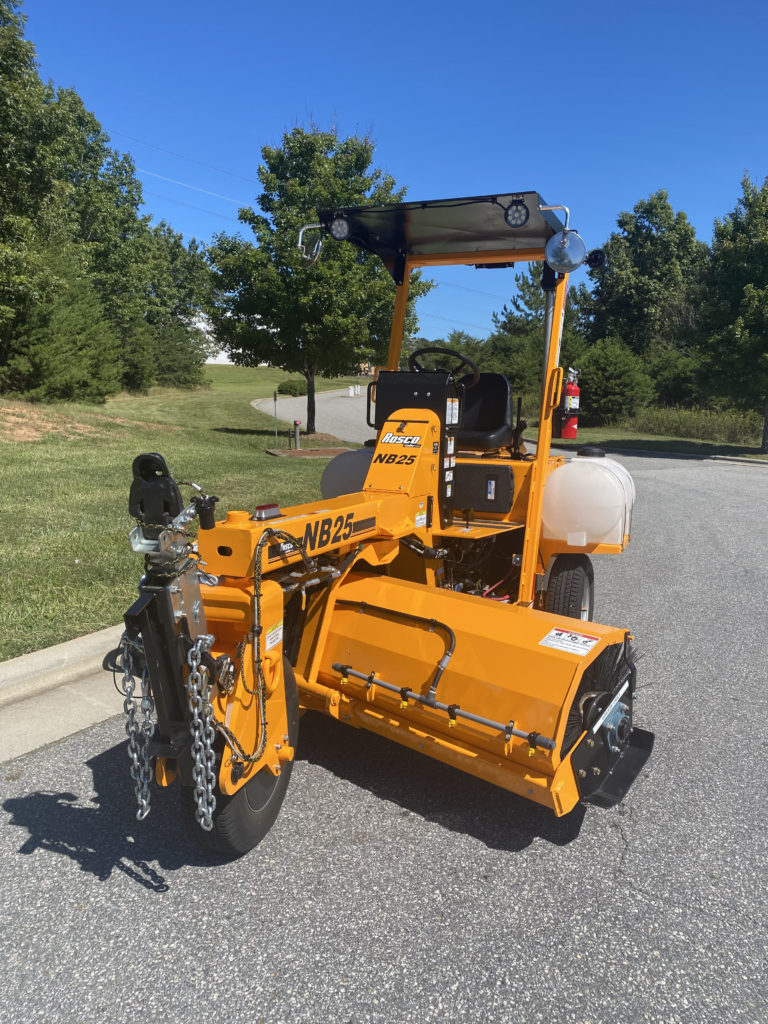

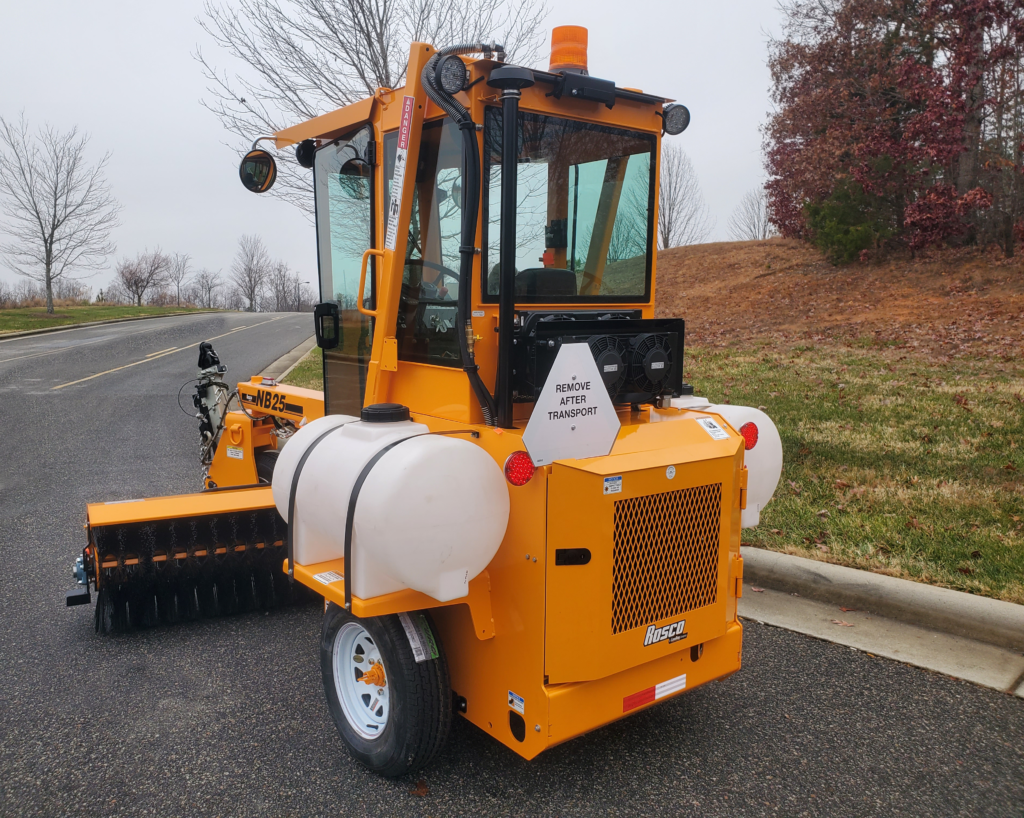

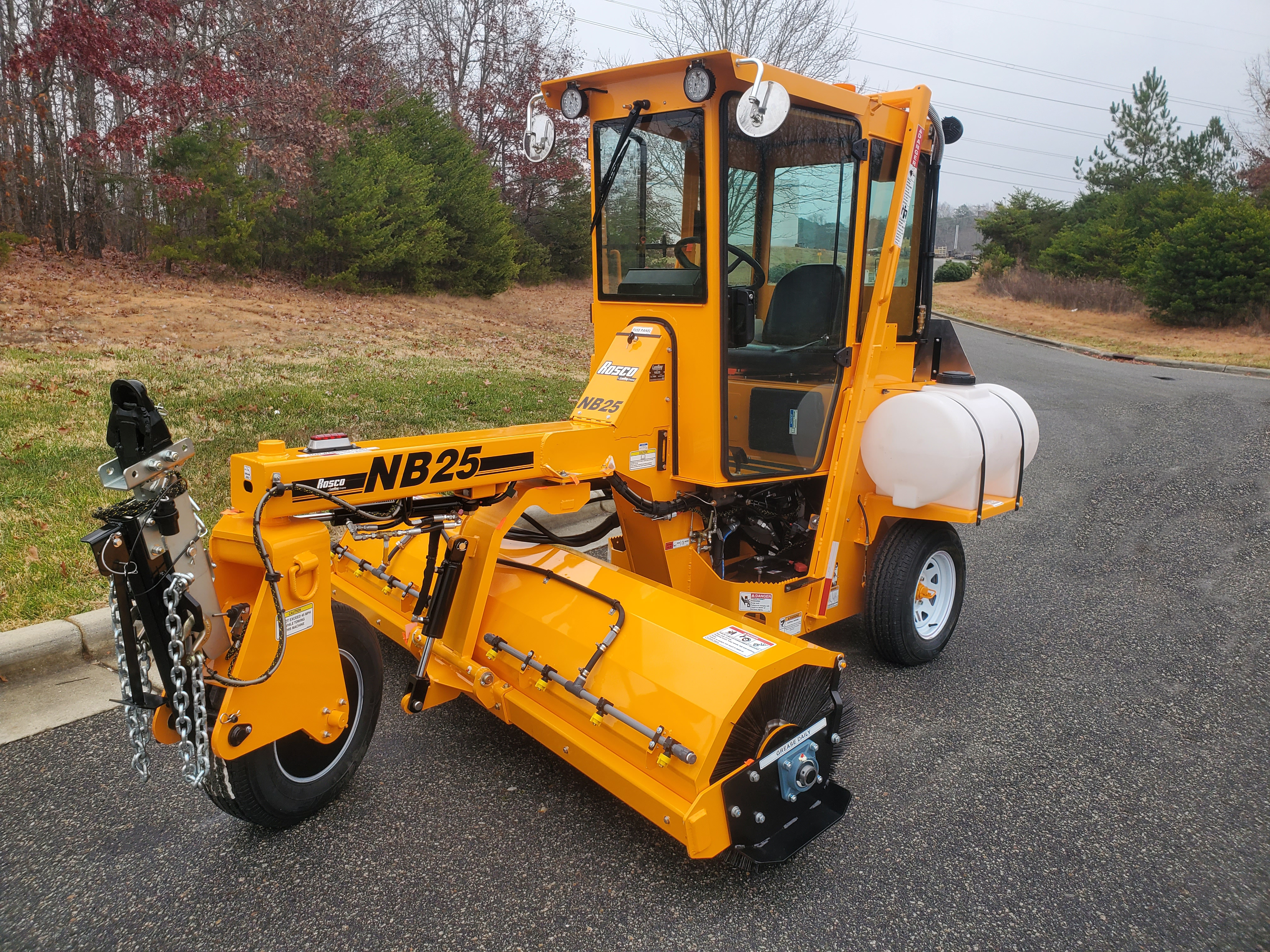

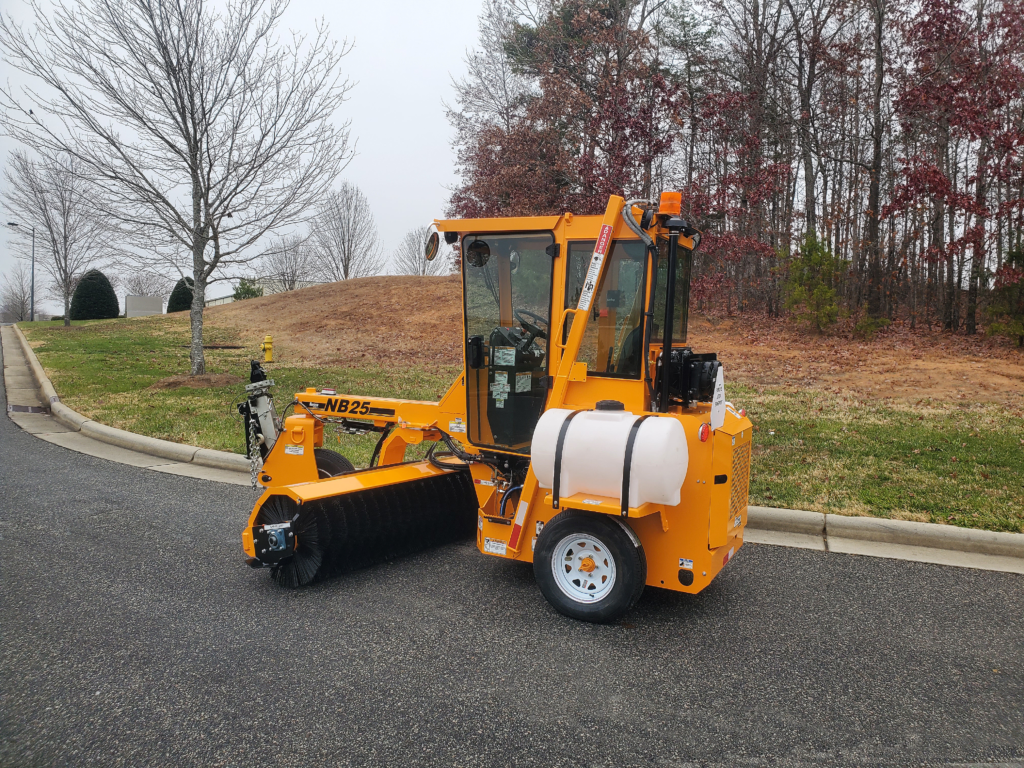

The NB25 is LeeBoy’s 3 Wheeled Self-Propelled Sweeper. This broom is Designed with the Paving Professional in Mind® who is in need of a reliable and quality built 3 wheel sweeper. The frame is heavy duty, operator area is ergonomically friendly with optional climate controlled cab and the machine is easy to tow, if desired. The NB25 is perfect for the rental industry or general application sweeping for any surface with its heavy duty brush core.
Find a Dealer
Rosco NB25
Technical Specifications
Brush Location
- Center-Mount Brush Location

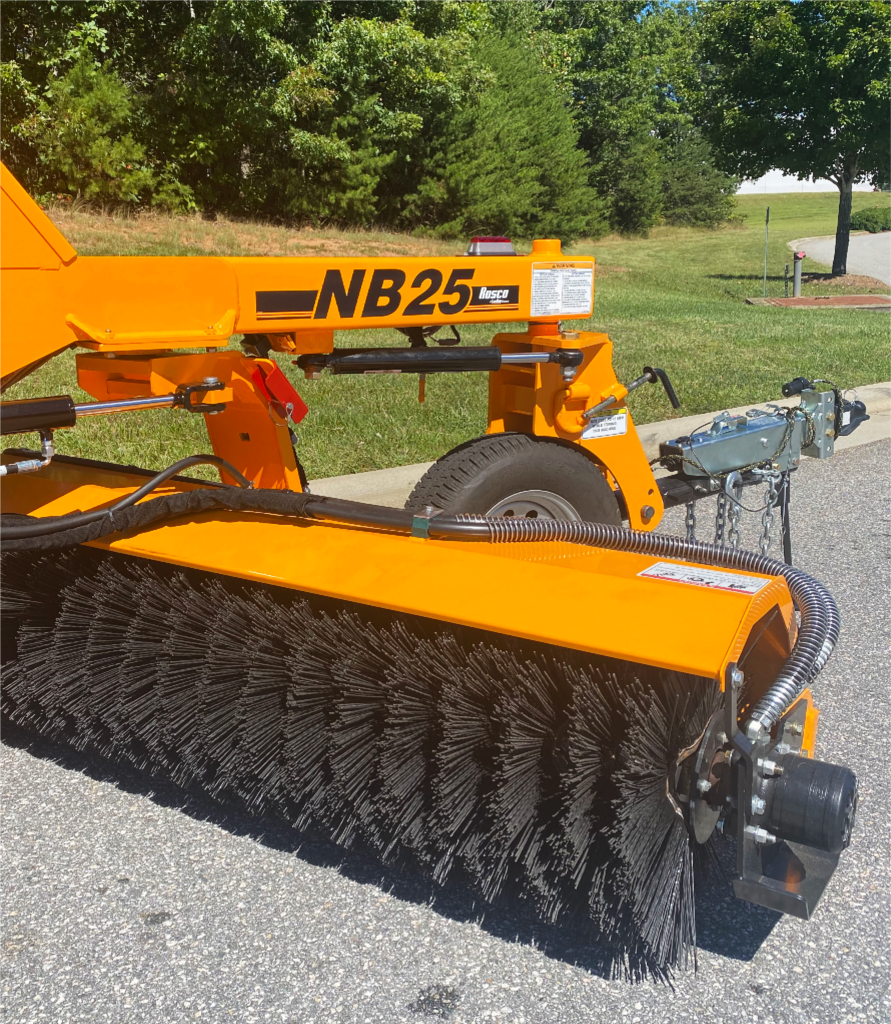

Brush
- Toggle switch controls
- Variable down pressure
- Speed: 180 rpm max, variable by engine speed
- Drive mechanism consists of direct hydraulic motor
- Filler: wafer type. poly, 24″ diameter, 8′ long
- Sweep angle: 50°, left or right
Dimensions
- Length: 15’1″ w/ Trailer hitch down
-
- 13′ w/ Trailer hitch up
- 12’2″ w/o Tow package
-
- Width: 9′ Brush centered
-
- 7’7″ Brush fully rotated
-
- Height: 8’ 1′ Beacon flipped down, shipping
-
- 8’9″ Beacon flipped up, operating
-
- Wheelbase: 8’5″
- Track width: 4’3″
- Ground Clearance: 7″
- Turning Radius: 10’2″ center front wheel
- Turning Circle: 6’6″ inside rear wheel
- Total Weight: 3,050 lbs. w/o water (Canopy)
-
- 3,175 lbs. w/o water (Cab)
- 3,650 lbs. w/ water (Canopy)
- 3,775 lbs. w/ water (Cab)
-
Engine
- Standard: 25 hp max @ 2,300 rpm, Kubota V1505-E4B (Canopy)
- Optional: 25 hp max @ 2,300 rpm, Deutz D2.2 (Cab)
- Electrical system: 12 volt system, alternator and battery
- Fuel reservoir: 8 gallons
