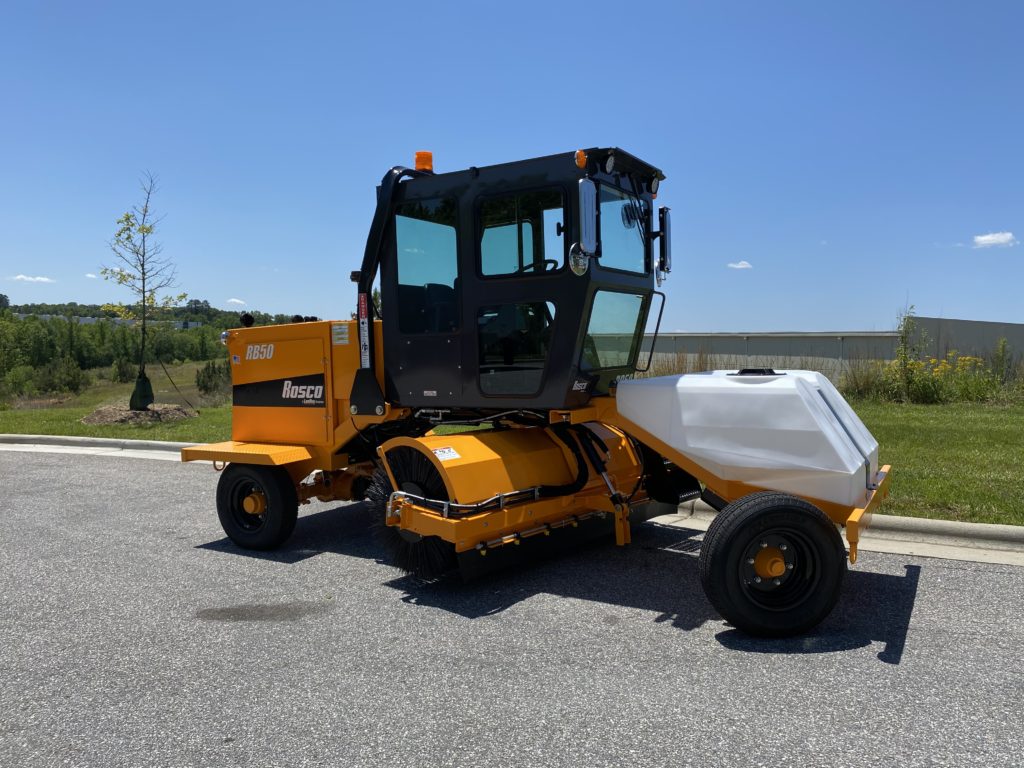

• Center-Mount Brush Location

  • Tier 4 Final - 74 hp (55 kw) @ 2,500 RPM

  • Weight: 5,510 lbs (2,499 kg) w/o water

Dimensions

  • Length: 15’ 6” (4.73 m)
  • Width: 7’ 9” (2.43 m) no tilted
  • Height: 8’ 5” (2.56 m) w/ROPS, shipping
  • 9’ 5” (2.87 m) w/ROPS and beacon, operating
  • Wheelbase: 11’ 8” (3.556 m)
  • Turning radius: 10’ (.305 m) inside
  • 18’ 9” (5.715 m) outside
  • Total weight: 5,510 lbs (2,499 kg) w/o water
  • 6,710 lbs (3,043 kg) w/ water

Engine

  • Tier 4 Final 74 hp (55 kw) max @ 2,500 rpm Hatz diesel 4H50TIC*
  • Air cleaner: Rotary pre-cleaner
  • Electrical system: 12 volt system, alternator and battery
  • Fuel reservoir: 30 gallons (114 l)

Front Axle

  • Heavy-duty, truck type, oscillating
  • Tires: ST 225 x 75-15R, load range E
  • Rim: 4 steel disc type, 15” x 6”

Transmission

  • Hydrostatic
  • Speed: 0 to 12 mph (19 kph), low range
  • Speed: 0 to 22 mph (35 kph), high range

Rear Axle

  • Comer 068 Series, heavy-duty, limited slip differential

Steering

  • Orbital, hydrostatic type

Main Frame

  • Rectangular A 500 GRB tubing with 8” x 6” x .25” (203 x 152 x 6 mm) wall thickness

Brakes

  • Two wheel wet disk type brakes with hand operated parking brake
  • Foot operated de-stroke breaking of the hydrostatic drive

Instrumentation

  • Murphy PV380R2 digital display (oil pressure, water temperature, voltmeter, tachometer, hour meter, fuel gauge)

Hydraulic System

  • Two separate circuits, one for travel and one for brush control and power steering.
  • Hydraulic reservoir: 25 gallons (95 l)

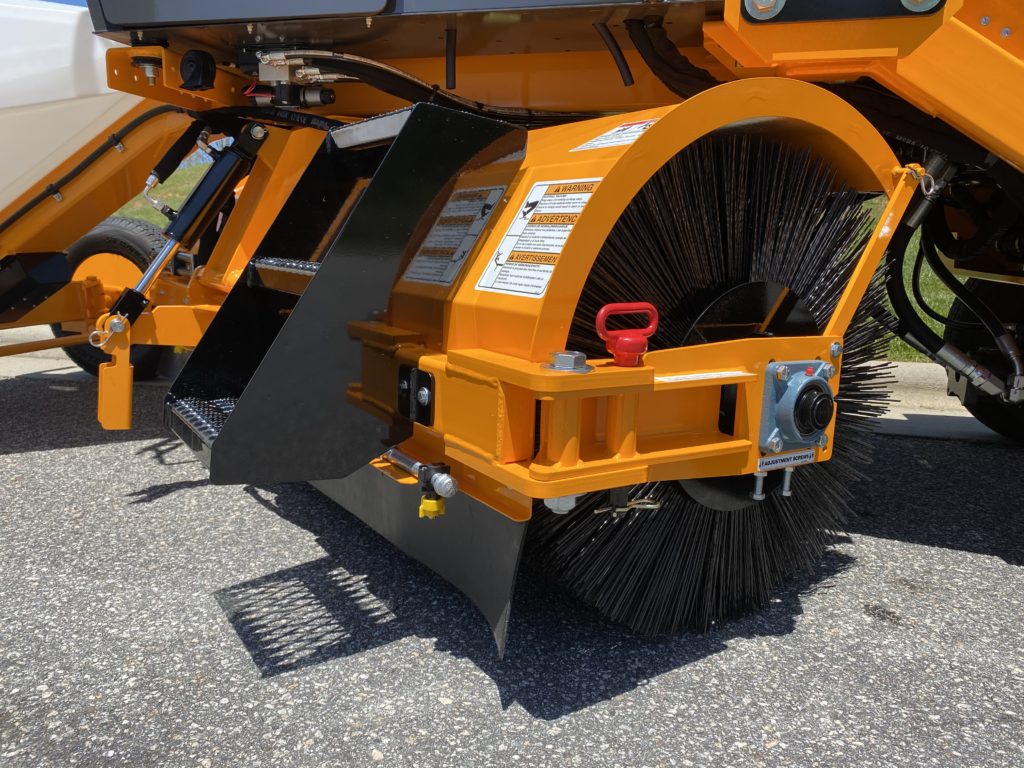

Brush

  • Joystick control
  • Variable down pressure
  • Drive mechanism consists of direct hydraulic motor enclosed in broom core
  • Quick change brush system
  • Filter: tube type, poly, 32” (.813 m) diameter, 7’ 6” (2.286 m) long
  • Sweep angle: 45⁰, left or right
  • Speed: 200 rpm max, variable by engine speed

Additional Standard Equipment

  • Canopy w/rollover protective structure (ROPS)
  • Seat with safety belt, horn, dual west coast style mirrors and dome light
  • Two LED head lights, stop, tail and turn signals
  • Two rear LED work lights
  • Amber LED strobe light

Optional Equipment

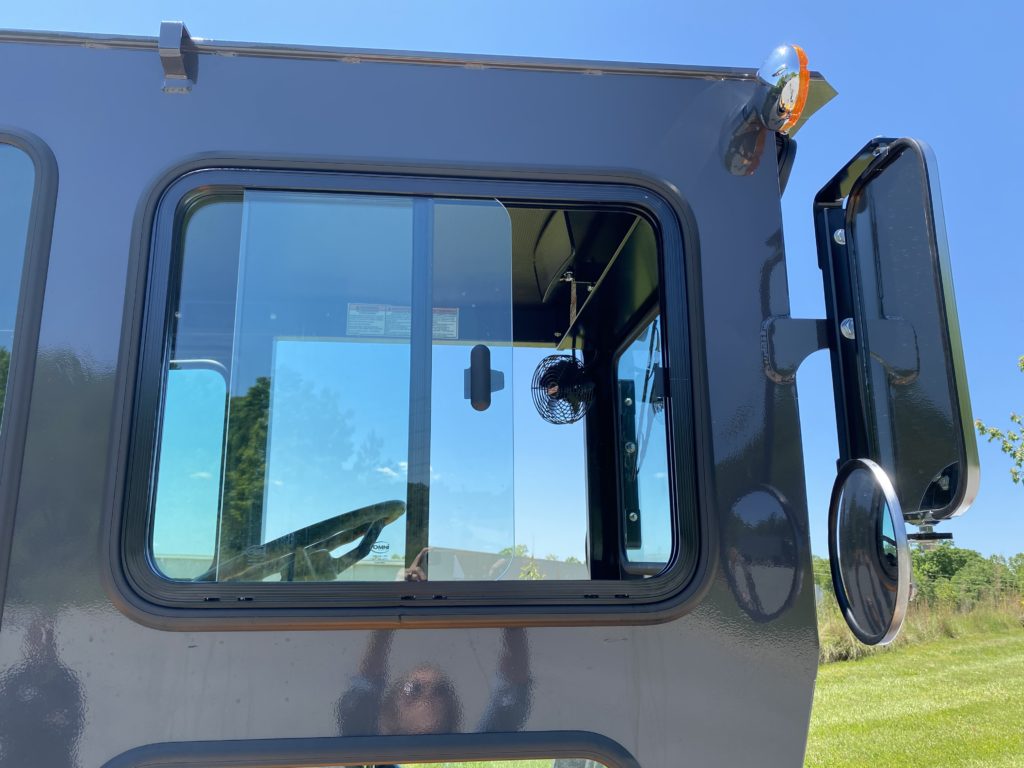

  • Fully enclosed cab w/over cab rollover protective structure (ROPS)
  • Air conditioner and heater, cab model only

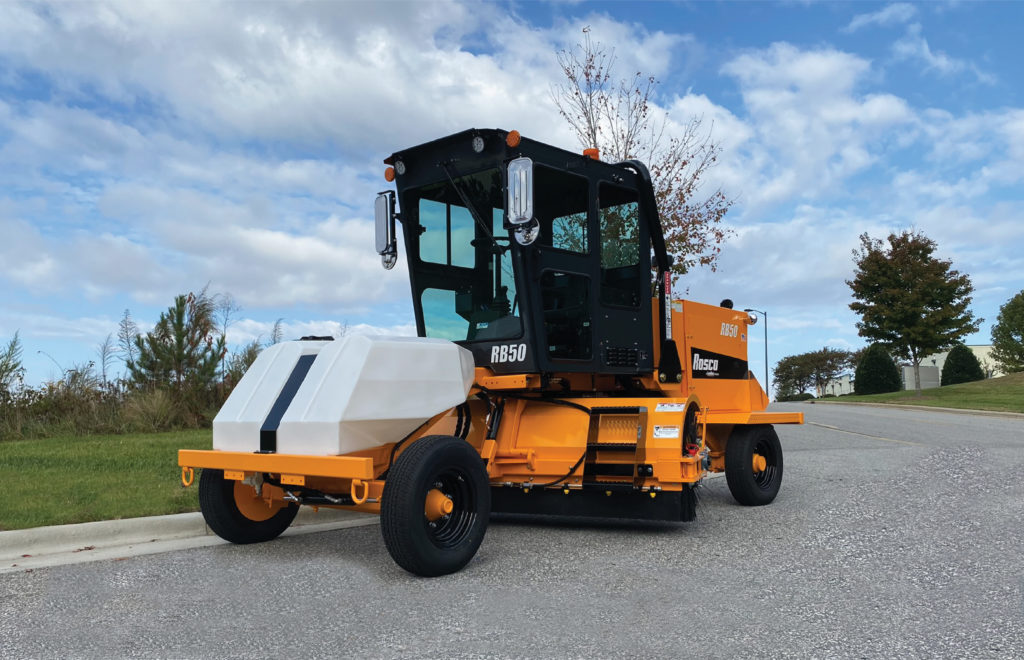

  • Brush watering system with 150 gallon (568 l) tank
  • Combination poly wafers (in lieu of poly tube)
  • Combination poly/steel wafers (in lieu of poly tube)
  • Poly/steel tube brush (in lieu of poly tube)
  • Rear wiper and washer assembly, cab model only
  • Front windshield washer, wiper is standard
  • Front snow blade
  • Curb brush
  • Spare tire and mount
  • Suspension seat assembly
  • Back-up/reverse camera with in-cab color display
  • Radio/CD cab install

Training, Support and Company

  • Training and support manuals
  • Optional on-site operator training by Dealer
  • One-year, unlimited hours warranty against any manufacturer defects
  • Extended warranty available
  • 50+ years manufacturing experience
  • ISO 9001 Certified
  • Manufactured in the USA

Job Application

  • Milling clean-up with front blade
  • Chip and seal prep
  • Road clean-up prep for paving
  • General sweeping

Key Features

  • Great visibility of brush frame
  • Robust frame design
  • Comfortable cab and control layout
  • Variable brush down-pressure control
  • Quick-change brush system
