Tier 4 Final – 127 hp (95 kw) @ 2,400 rpm
Weight (with screed): 23,450 lbs. (10,637 kg)
Paving Widths Variable Up To 15’ 6" (4.72m)
Dimensions
- Length: 16’ 4’(4.98 m)
- Width: 8’ 6” (2.59 m) transport
10’ (3.05 m) hopper wings down - Height: 6’ 8” (2.02 m) low deck
7’ 10” (2.38 m) high deck - Total Weight (with screed): 23,450 lbs. (10,637 kg)
Engine
- Kubota turbocharged diesel
- Tier 4 Final - 127 HP (95 kW)
- Remote mounted DOC + DPF + SCR
- MURR I/O distributor blocks with LED lighting
Capacities
- Fuel: 37 gallons (140 l)
- Hydraulic: 31 gallons (117 l)
- Washdown tank: 7 gallons (26.5 l)
- DEF tank: 5 gallons (18.9 l)

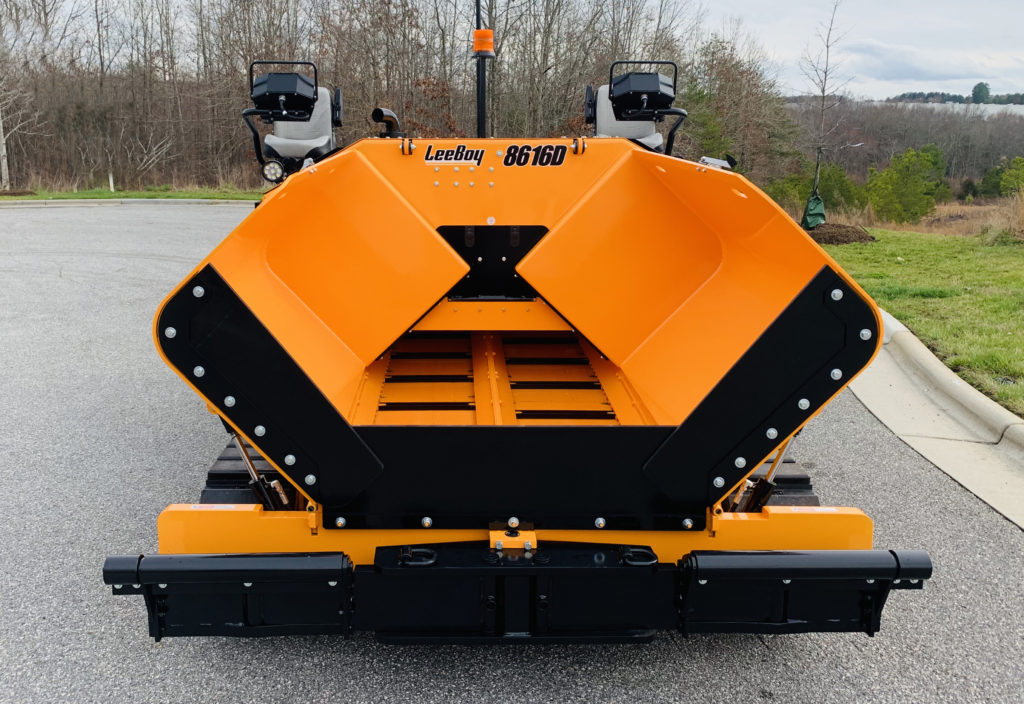

Hopper
- Hopper size: 9 ton (8,164 kg)
- Hopper height: 33” (0.84 m)
Hopper Wings
- Hopper wings: heavy-duty .5” (12.7 mm) with large radius corners
- Wide radius corners allow for cleaner operation
- Rear hopper wing wipers
Paving Widths
- Machine has variable paving widths up to 15’ 6” (4.72 m)
Paving Depths
- Electronically operated tow point cylinders
- Includes manual flights screws positioned on the screed
- Depth: 0 to 8” (203 mm)

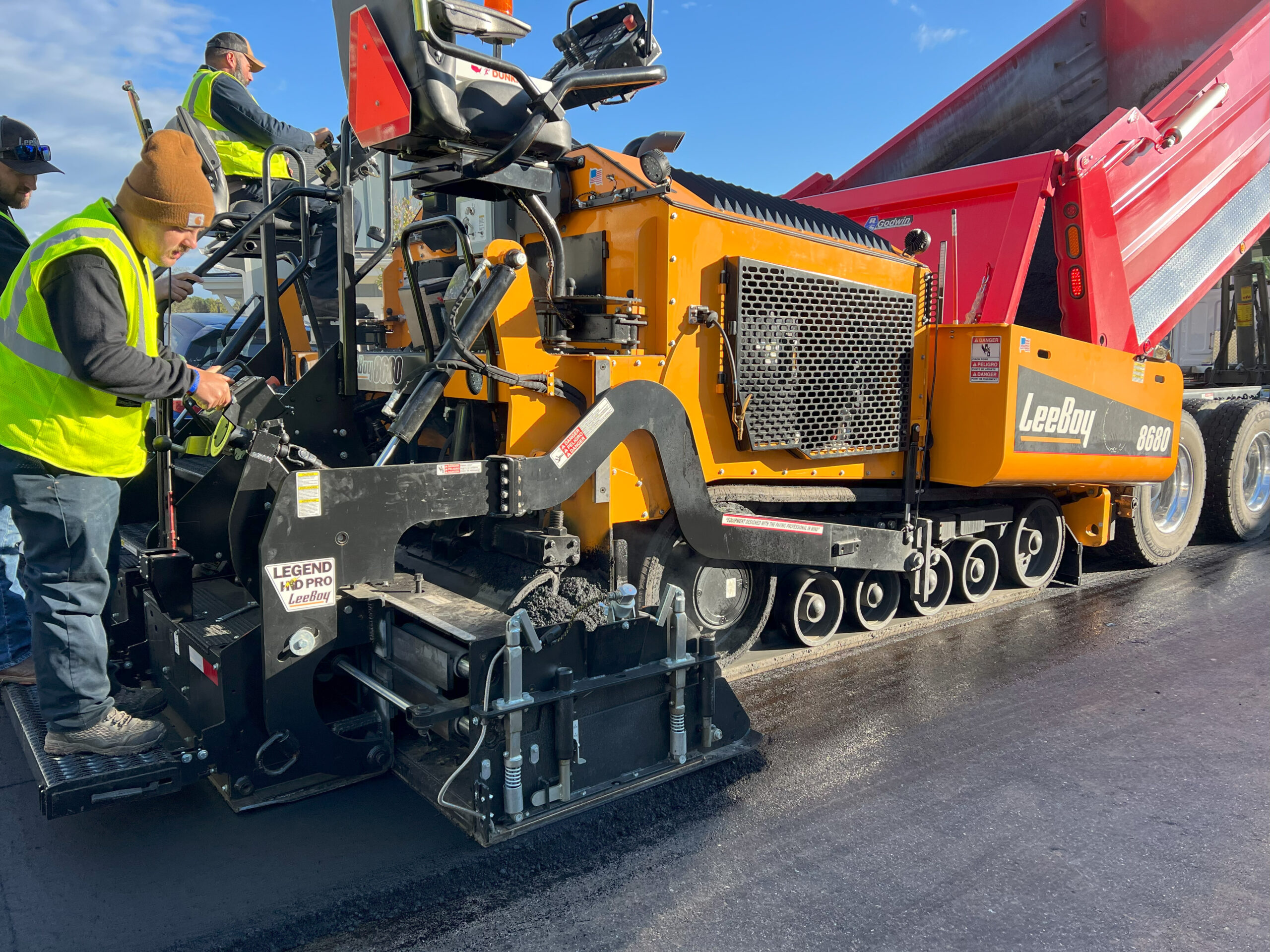

Screed
- Legend HD PRO screed standard, weight: 4,150 lbs (1,886 kg)
- Legend HD PRO full free floating 96” (2.44 m) main screed
- Consist of a 18” (.457 m) deep main screed
- Constructed of .375” (9.52 mm) HARDOX 450 bolt-on wear plates for easy placement
- Wear plate has bullnose on front
- Rear wear plate adjustment
- Adjustable strike offs
Screed Extensions
- Two 46” (1.16 m) x 9” (229 mm) hydraulically operated screed extensions
- The heated extensions are adjustable and mounted flush with the main screed
- Energy chain, each screed extension
- Includes replaceable .375” (9.53 mm) by 9” (229 mm) AR 450 bottom wear plate
- Walkway width: 12” (0.305 m)
- Hydraulic sloping screed extensions standard
- Adjustable strike offs
Screed Heat
- Legend HD PRO Screed, electric heat
- 14.4 kw generator
- Electric timer and automatic temperature control (ATC)
- Automatic RPM control system
- Environmentally safe, sealed S-curve elements in main screed and sealed, blade-style elements in extensions
Screed Vibration
- Equipped with two electric vibrators producing 70lbs of force each
- 4,100 rpm, each vibrator
Screed Crown/Invert
- Equipped with a crown/invert adjustment allowing at least 2.5" (0.063 m) of crown and 1.5" (0.038 m) of valley
- Includes a levelling indicator for the operator to know when the screed is level
Screed End Gates
- Spring-loaded end gates
- Equipped with vertical height adjustments and tilt with replaceable wear shoes
Material Augers
- Two independent, hydraulically driven, segmented augers. Operated automatically or manually
- Augers are reversible
- Variable speed from 0-168 rpm
- Quick change auger assemblies
- Augers are 12” (.305 m) diameter, 12” (.305 m) pitch and are cast from .75” (19 mm) HRC 55-60
- System has manual override function and automatic functions are controlled by sonic sensors (non-contracting)
- Single point lube system
Operator’s Platform
- Includes both right and left hand seats 6’ 1" (1.85 m) above ground with a lockable cover for the instrument panel
- Various pivoting and adjustable swing out seat positions
- Two piece, grip strut, anti-slip walk board platform
- Walk board extensions slide out, left and right
- Walk boards fold up and lock for transport and working requirements
Operator’s Controls
- High deck/low deck configuration
- Includes dual electronic steer
- Dual, independent adjustable control stations interchangeable in the field
- Dash panel includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lights
- User-friendly, icon-based CAN Bus controls
- Backlit keypad with LED indicator lights
- Colored LED, sunlight viewable control screen with digital readouts. Review and monitor system vitals including: RPM, paving speeds, system pressures, screed temperature and generator usage
Steering
- Dual electronic steering controls
- Machine can be controlled from a high deck position or lowered to control at the screed
- Electronically controlled pumps operate the forward/reverse motion from dual joysticks

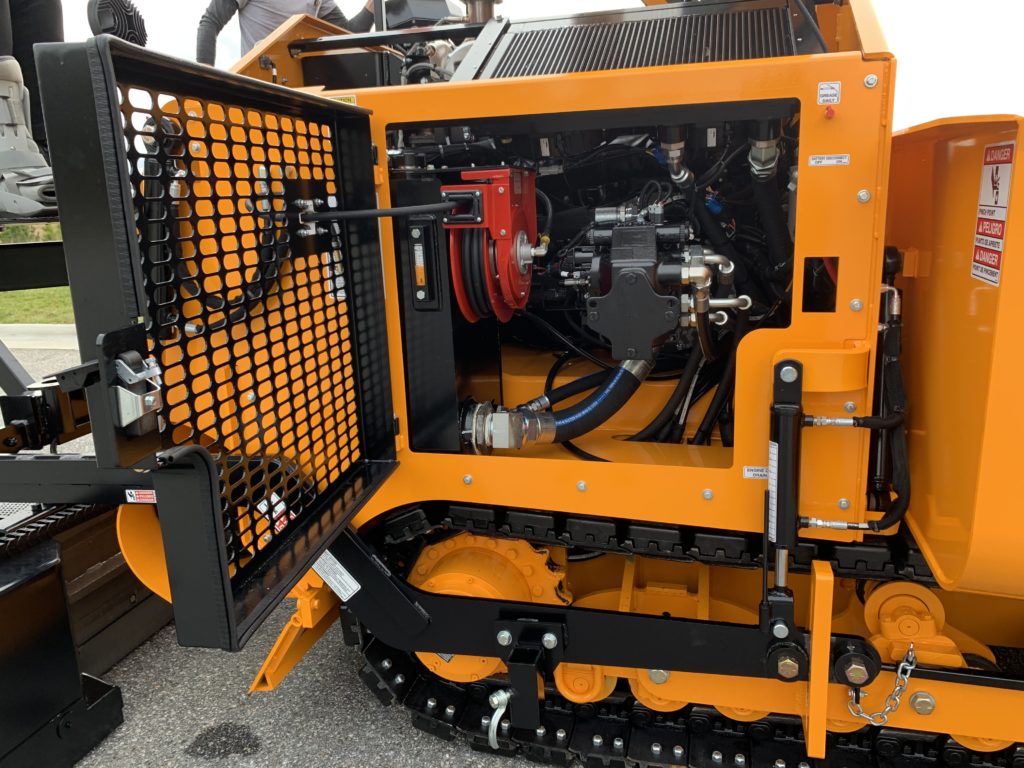

Washdown System
- Electric HD pump with two hose reels with 15' X .3125" (4.572m x 8 mm) diameter hose
- Citrus tank sight gauge
Hydraulic System
- Variable volume hydraulic pumps for each drive
- Load sense pump for augers, conveyors and cylinder functions
- Hydraulic reservoir: 31 gallons (117 l)
- Hydraulic oil: all weather, all temperature
- Single 154,000 BTU oil coolers
Push Rollers
- Two 3" (0.076 m) diameter rollers with sealed bearings mounted on a swivel frame
- Vertically adjustable push rollers, 7” (.178 m) of height adjustment
- Built in material scraper on each push roller
Track Drive System
- Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, eight rollers (five oscillating) and hydraulically adjustable front idler
- Drive mechanism is torque hub driven which consist of two speeds and obtained by means of a keypad button
- Fail safe brakes
- Track size: 14" (0.356 m) wide x 108" (2.74 m) poly 8 rollers
OR - Track size: 14" (0.356 m) wide x 108" (2.14 m) long
- Paving speed: 0 to 125’ per minute (1.4 mph)
- Travel speed: 0 to 350’ per minute (3.9 mph)
Additional Standard Equipment
- Power crown
- Gauge package (oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, engine diagnostics)
- Actuator-driven hood lift
- Ground-level service access doors
- Integrated dual tool boxes on screed
- Back-up alarm
- Quick-folding safety beacon
- Sliding LED work lights
- Vandalism protection covers
- Horn
- 2 seats
- Magnetic cup holders
Optional Equipment
- Additional control post and wire harness for the left side
- Smooth ride HD poly pad track
- Screed extension vibration
- Heated endgates
- Slope meter
- Horizontal flight screws
- 3:1 flight screw adjusters
- Truck hitch
- Truck hitch valving, excludes truck hitch
- Hydraulically extendable oscillating push rollers (not available with truck hitch)
- Central point lube system, screed
- Steering knob drive controls (in lieu of joysticks)
- Power crown
- Wiring only, grade controls (TopCon)
- Sonic grade control, one side (TopCon P-32 system)
- Dual grade control (TopCon P-32 system)
- Dual grade and slope (TopCon P-32 system)
- 12” x 6” Berm extension, left and right
- LED blade light system, DC powered, 2 individually mounted LED blades
- Umbrella mount (x2)
Training, Support and Company
- Training and support manuals
- Optional on-site operator training by Dealer
- Two-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 55+ years manufacturing experience
- ISO 9001 Certified
- Sourcewell Contract#052417-VTL
- Manufactured in the USA

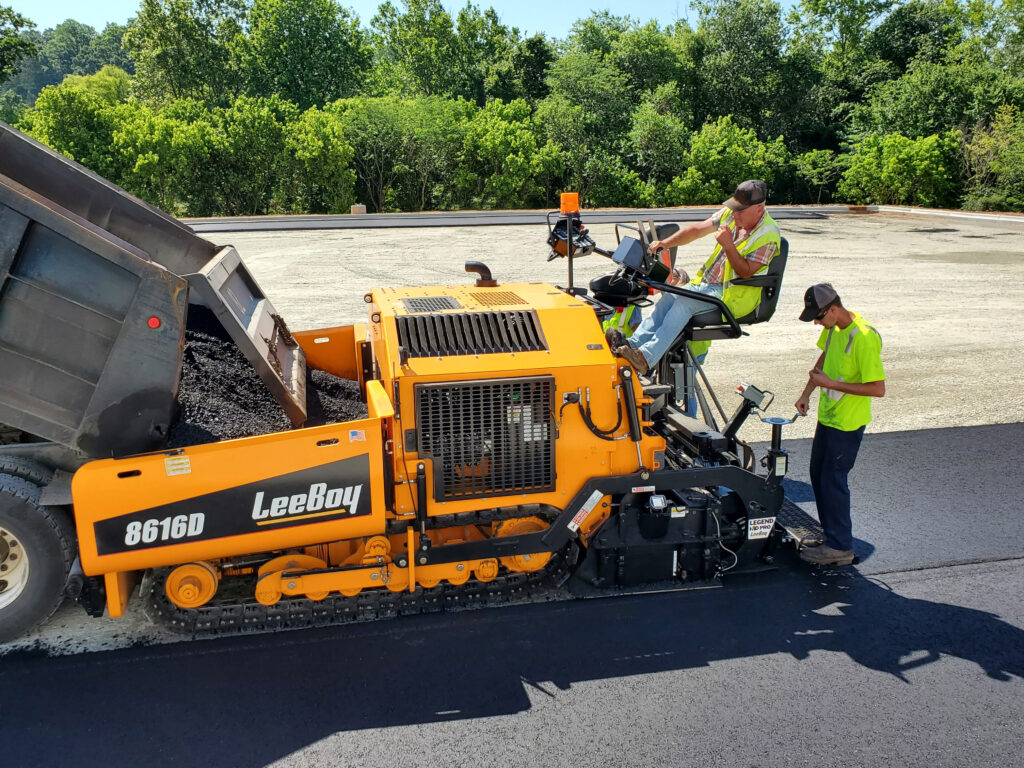

Job Application
- Parking Lots
- Driveways
- Municipal Work
- Subdivisions
- State Roads
- County Roads
Key Features
- Highway class conveyor system
- Heavy-duty undercarriage
- High visibility
- Legend HD PRO Screed standard
- Easily converts to high deck or low deck configuration
- Control panel shifts from left to right, operator’s choice
