LeeBoy

5300B

Asphalt Pavers

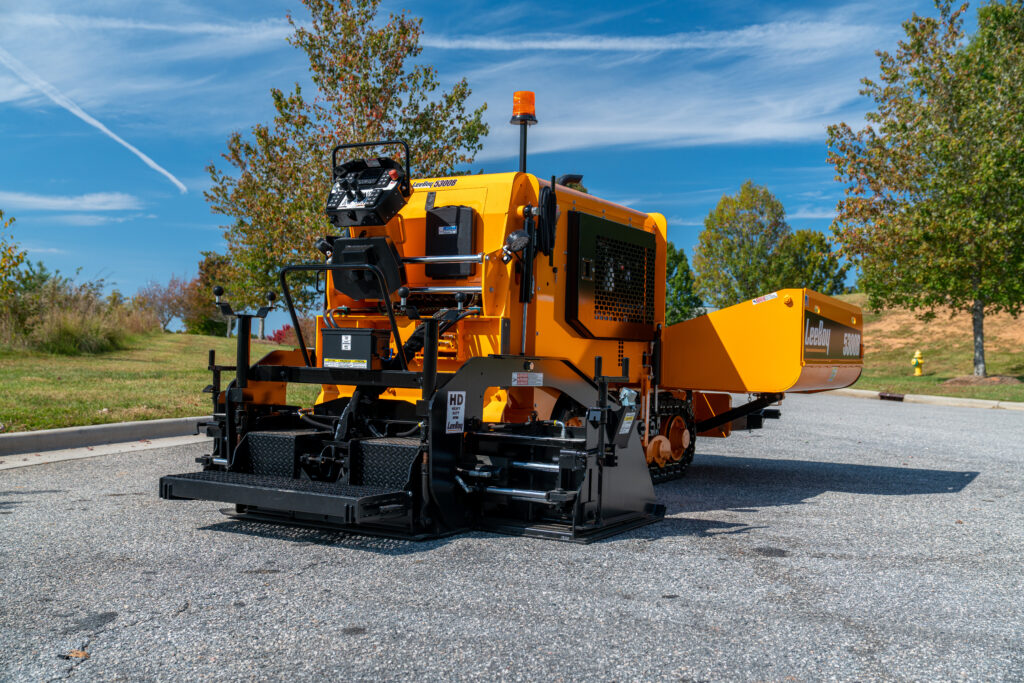

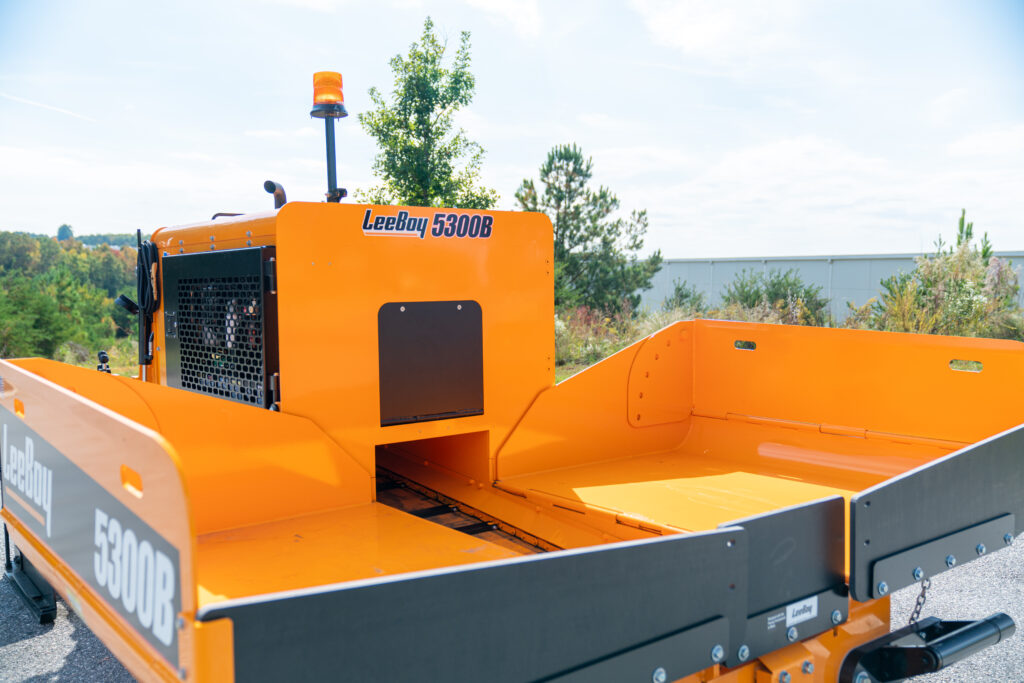

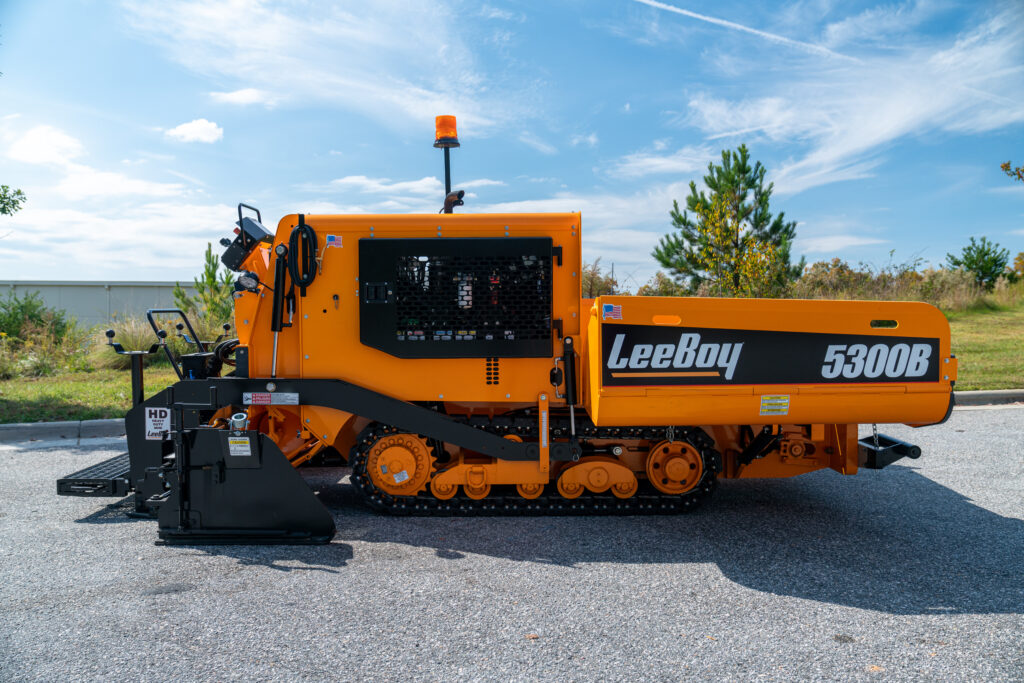

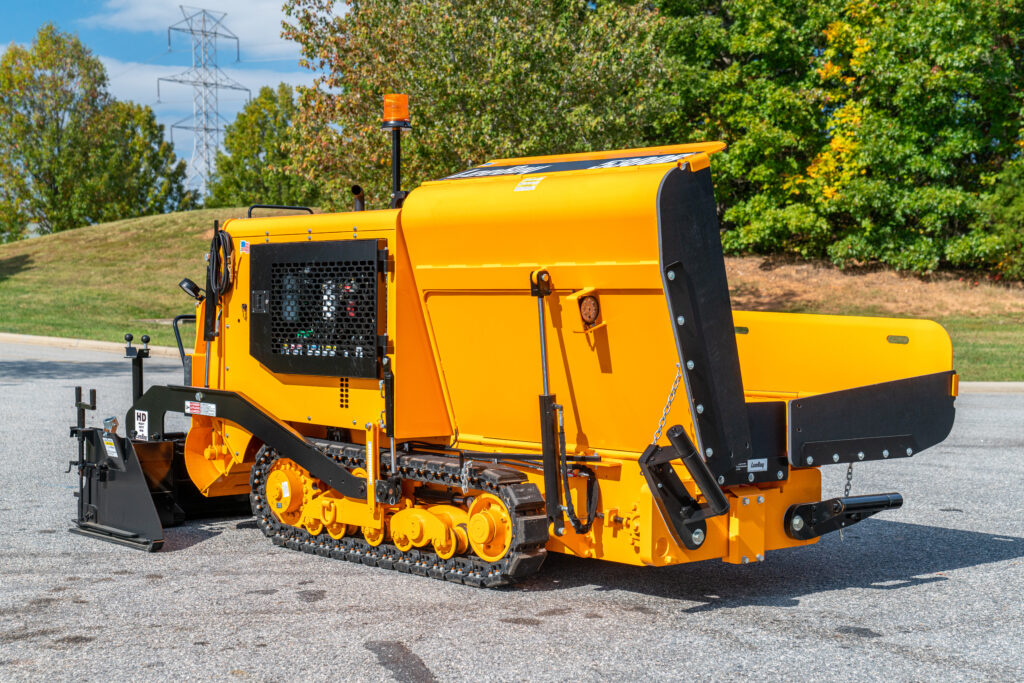

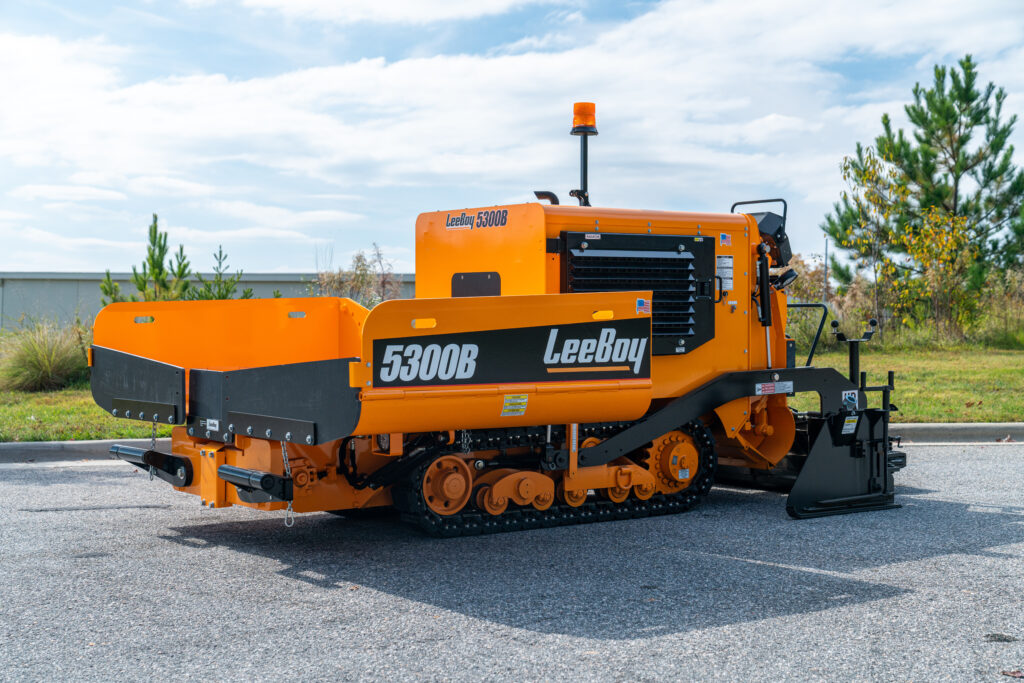

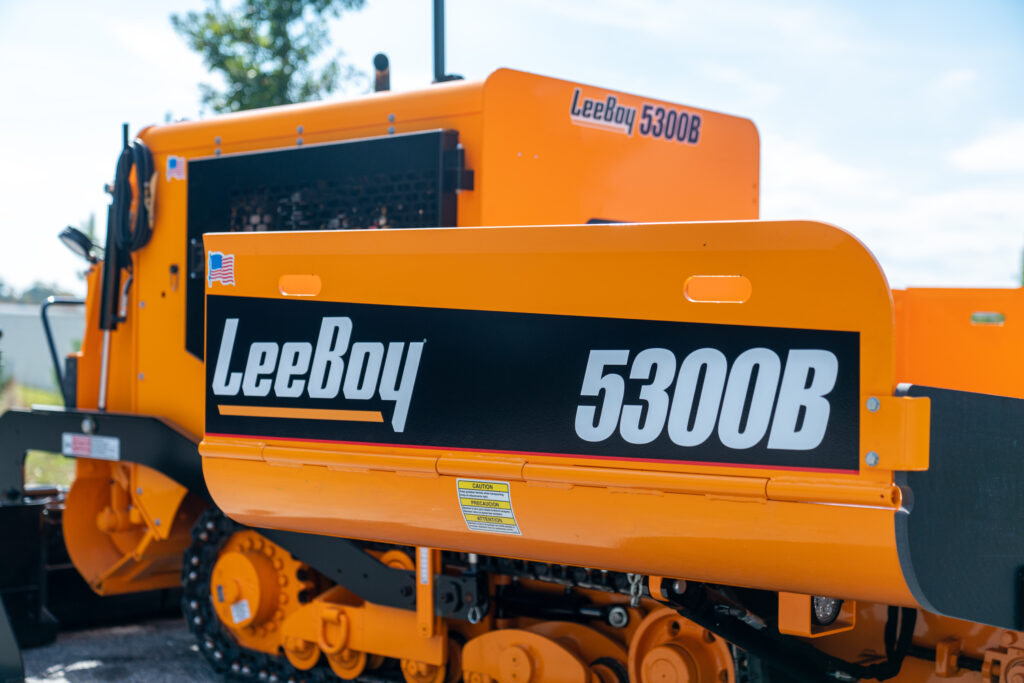

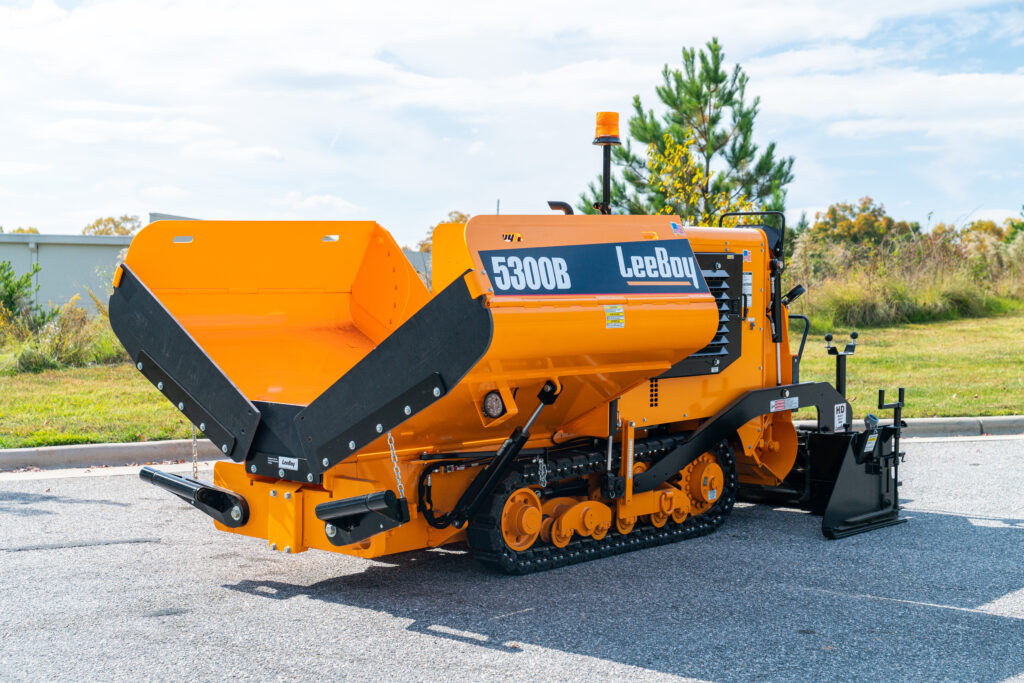

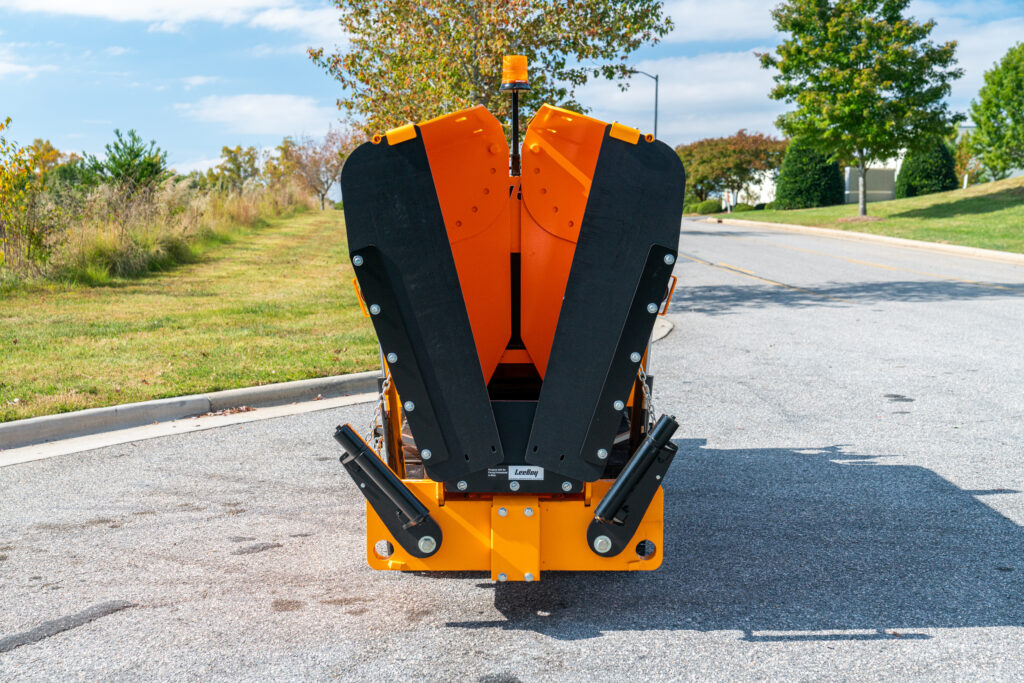

One of the industry’s most versatile and quietest compact pavers, the LeeBoy 5300B asphalt paver material hopper allows several variations, one side up or both sides down to allow asphalt to be fed from a shuttle buggy or skid steer or dump truck. While allowing for the ability to fit into tight spaces. By maintaining a large capacity material hopper and ultra-efficient material management system, the paver provides the operator with precise control of the head of material at the main screed and hydraulic extensions. This unique design is ideal for the smallest of paving jobs to include walking trails, cart paths, sidewalks, trenches, mill, patch and repair work.

Find a Dealer Compare Products

LeeBoy 5300B

Technical Specifications

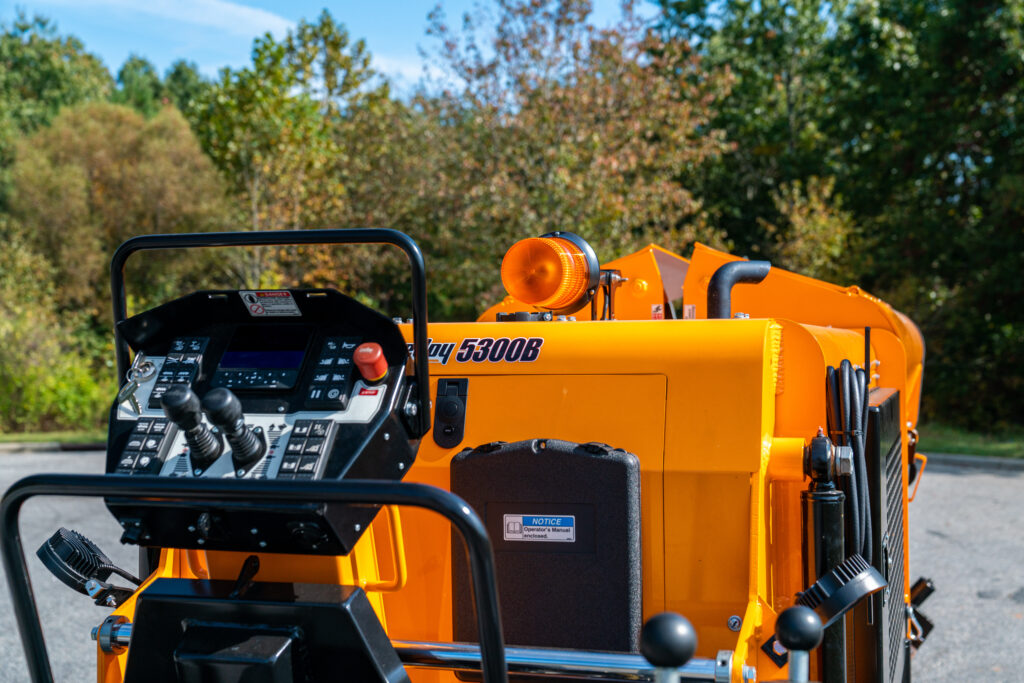

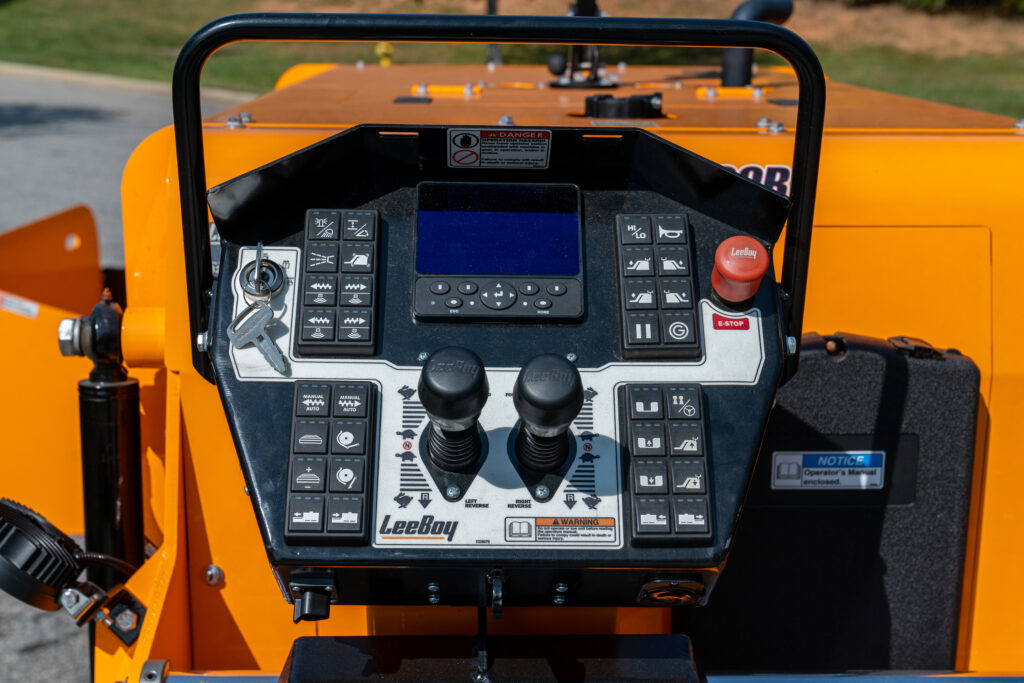

Operator’s Controls

  • Colored LED, sunlight viewable control screen with digital readouts. Review and monitor system
    vitals including: RPM, paving speeds, system pressures, screed temperature and generator
    usage
  • Dash panel includes augers, screed extension, cut-offs, screen, hopper wings, conveyor, grade controls, steering lights
  • User-friendly, icon-based CAN Bus controls
  • Backlit keypad with LED indicator lights

Dimensions

  • Length: 15’ 5”
  • Width:  4’ 5” transport
    9’ 7” hopper wings down
  • Height:  5’ 9”
  • Total Weight (with screed):  12,700 lbs

Engine

  • Kubota turbocharged diesel
  • Tier 4 Final – 64.4 hp (48 kw) @ 2,400 rpm

Capacities

  • Fuel: 25 gallons
  • Hydraulic reservoir: 33 gallons
  • Washdown tank: 5 gallons

Paving Widths

  • Variable up to 7’
Download Full Specs
