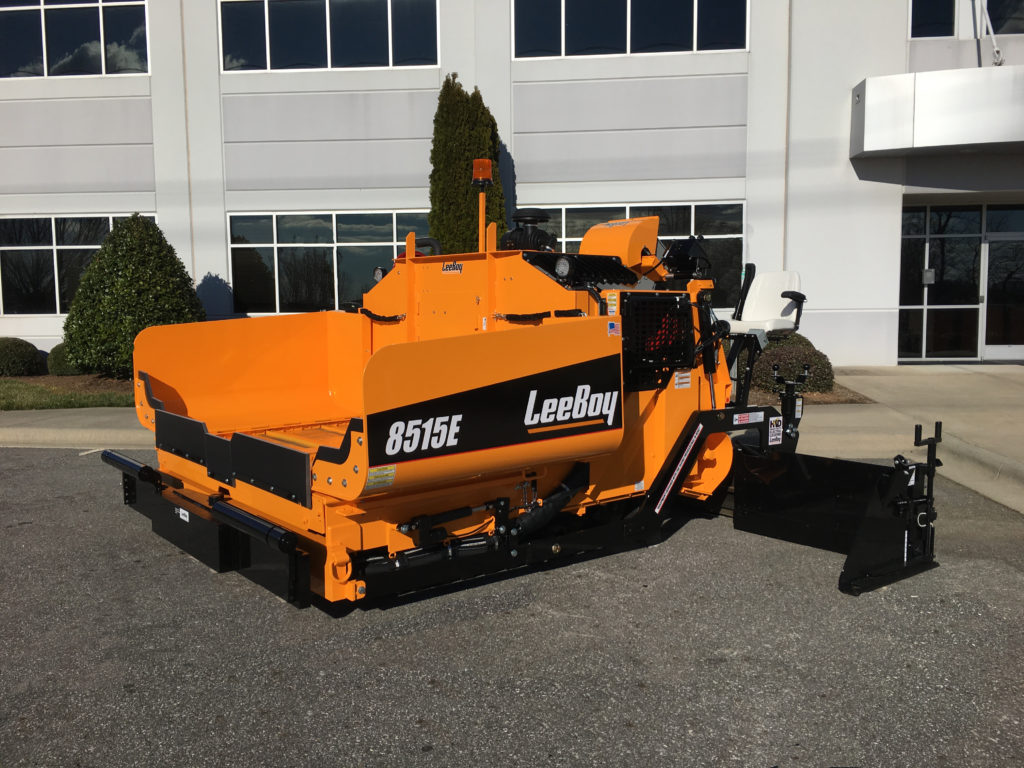

Tier 4 Final – 74 hp (55.4 kw) @ 2,200 rpm
Weight (with screed): 17,600 lbs. (7,983 kg)
Paving Widths Variable Up To 15’ (4.6m)
Dimensions
- Length: 13’ 5” (4.08 m)
- Width: 8’ 6” (2.59 m) transport
10’ (3.05 m) hopper wings down - Height: 8’ (2.43 m)
- Total Weight (with screed): 17,600 lbs. (7,983 kg)
Engine
- Kubota diesel
- Tier 4 Final - 74 HP (55.4 kW) @ 2,200 rpm
Capacities
- Fuel: 19 gallons (71 l)
- Hydraulic: 67 gallons (254 l)
- Washdown tank: 7 gallons (26 l)

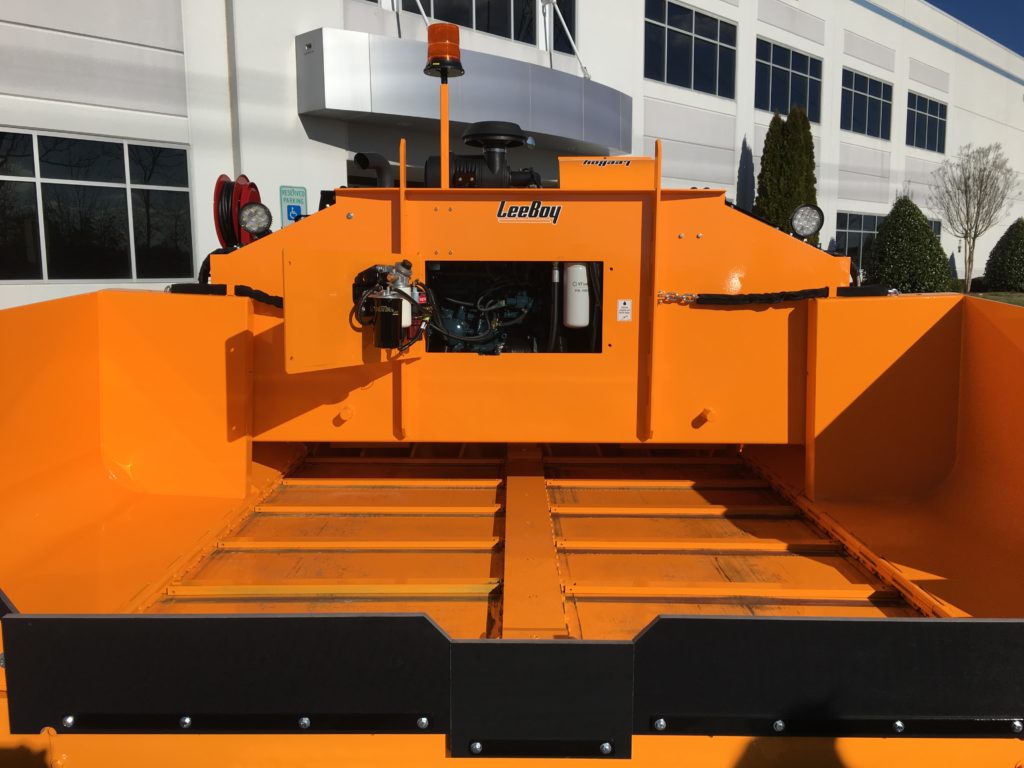

Hopper
- Dual 3’ (0.914 m) feeding conveyors
- Each conveyor is independent with automatic cut-offs.
- Conveyor is hydraulically raiseable to allow cleaning and service
- Hopper size: 7.5 ton (6,804 kg)
- Hopper height: 23” (0.584 m)
- Hopper wings: Heavy-duty 3/8” (0.01 m) with large radius corners
Paving Widths
- Machine has variable paving widths up to 15’ (4.6 m)
Paving Depths
- Electronically operated tow point screws with toggle switches allow operation of grade from the high deck position
- Includes manual flights screws positioned on the screed
- Depth: 0 to 6” (0.152m)

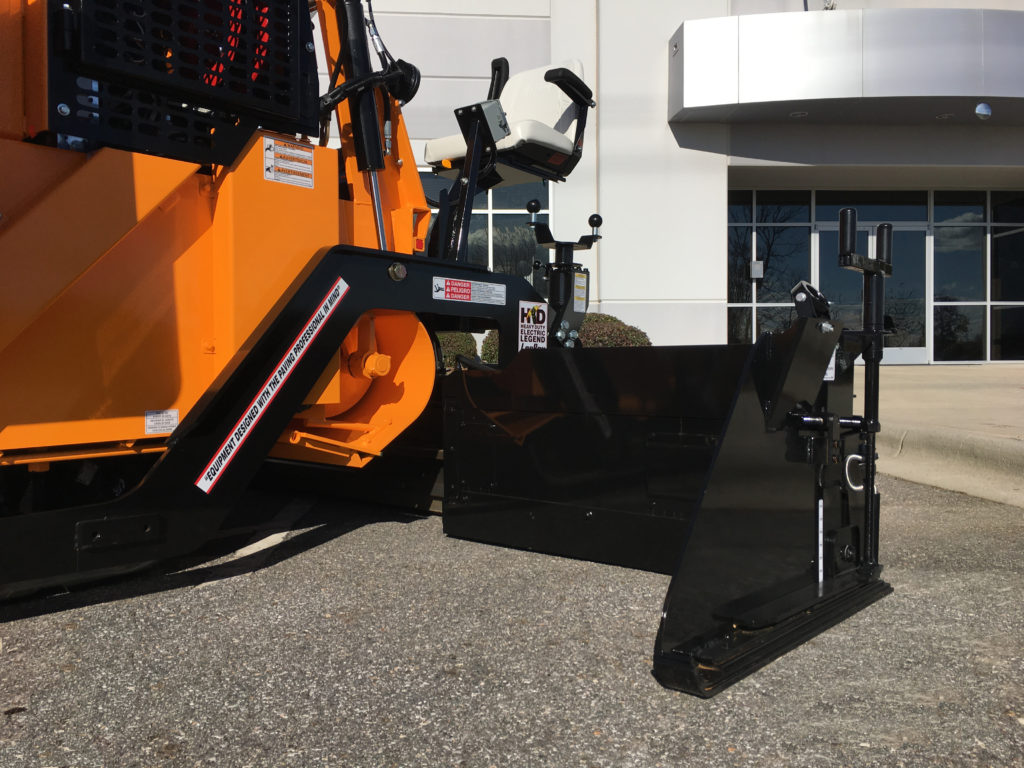

Screed
- Electric screed standard, weight: 2,810 lbs
- Legend full free floating 96” (2.44 m) main screed
- Consist of a 15.4” (.391 m) deep main screed
- Constructed of 3/8” (.010 m) HARDOX 400 bolt-on wear plates for easy placement
- Wear plate has bullnose on front
Screed Extensions
- Two 44” (1.11 m) screed extensions hydraulically operated
- The heated extensions are adjustable and mounted flush with the main screed
- Includes replaceable .25” (.006 m) by 6.75” (0.171 m) AR 400 bottom wear plate
- Extensions Length: 3’6” (1.07 m)
- Walkway width: 12” (0.305 m)
- OPTION: Extension Slope-Hydraulic extensions 0 to 8 percent each side
Screed Heat
- Legend Plus Electric Screed
- Self-contained, hydraulically driven generator heating system
- Environmentally sealed blade heaters on main screed and extensions
- Electric heat control system
- Hydraulically driven electric generator, 10kw
- Two blade elements, one in each extension
- 2 Blade heating elements in main
- OPTION: Heavy-duty Legend electric heated screed available, weight: 3,230 lbs
Screed Vibration
- Equipped with two hydraulic vibrators capable of producing up to 3,400 vibrations per minute each (preset at 2400 VPM)
Screed Crown/Invert
- Equipped with a crown/invert adjustment allowing at least 2" (0.051 m) of crown and 1.5" (0.038 m) of valley
- Includes a leveling indicator for the operator to know when the screed is level
Screed End Gates
- Equipped with vertical height adjustments and tilt with replaceable wear shoes
Under Auger Material Cutoff
- Two independent hydraulically operated 4' ( 1.219 m) wide gates located under the augers and constructed of at least .375" (.009 m) A-36 plate steel

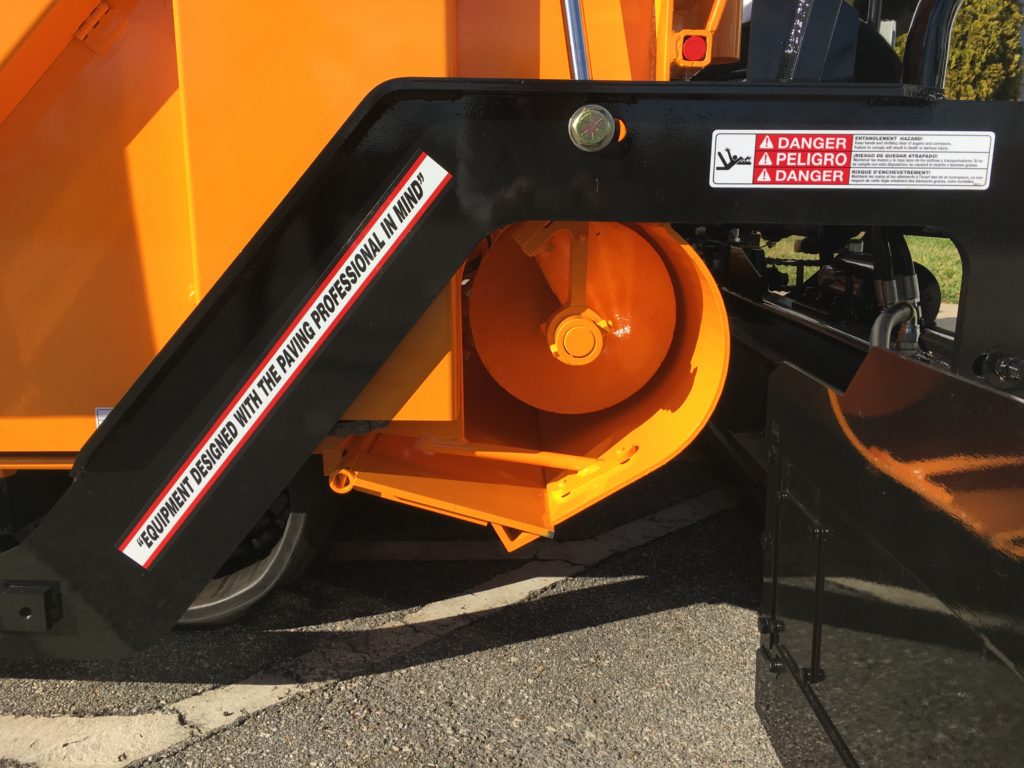

Material Augers
- Two 12” (.305 m) replaceable segmented augers constructed of .625" (.016 m) AR 4140 HT (heat treated) steel
- Augers can be controlled automatically by sonic units (non-contacting)
- Replaceable auger back
- Heavy-duty auger motors
Operator’s Platform
- Includes both right and left hand seats with a lockable cover for the instrument panel
- Two-piece grip strut, anti-slip walk board platform
Operator’s Controls
- High deck/low deck configuration
- Includes dual electronic steer
- Dash panel is movable from left to right and includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lights
Steering
- Dual electronic steering controls
- Machine can be controlled from a high deck position or lowered to control at the screed
- Electronically controlled pumps operate the forward/reverse motion from dual joysticks

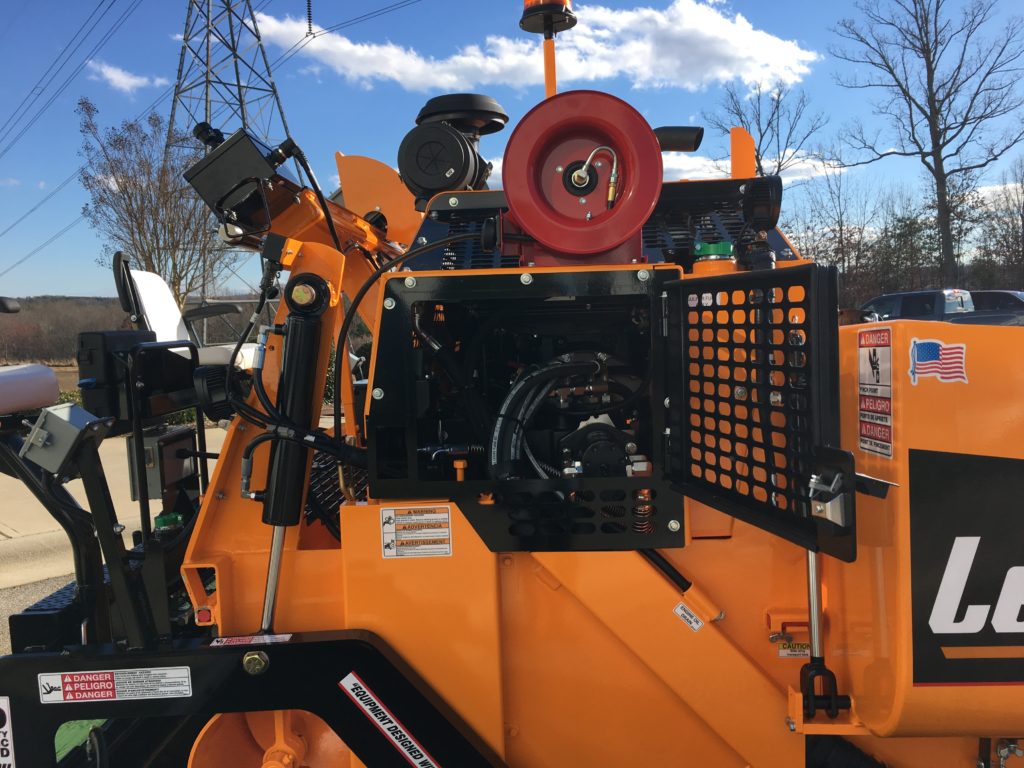

Washdown System
- Electrical HD pump and two 15’ x .3125” (4.572 x .008 m) diameter hose reels
- Built in pressure sensor and shutoff

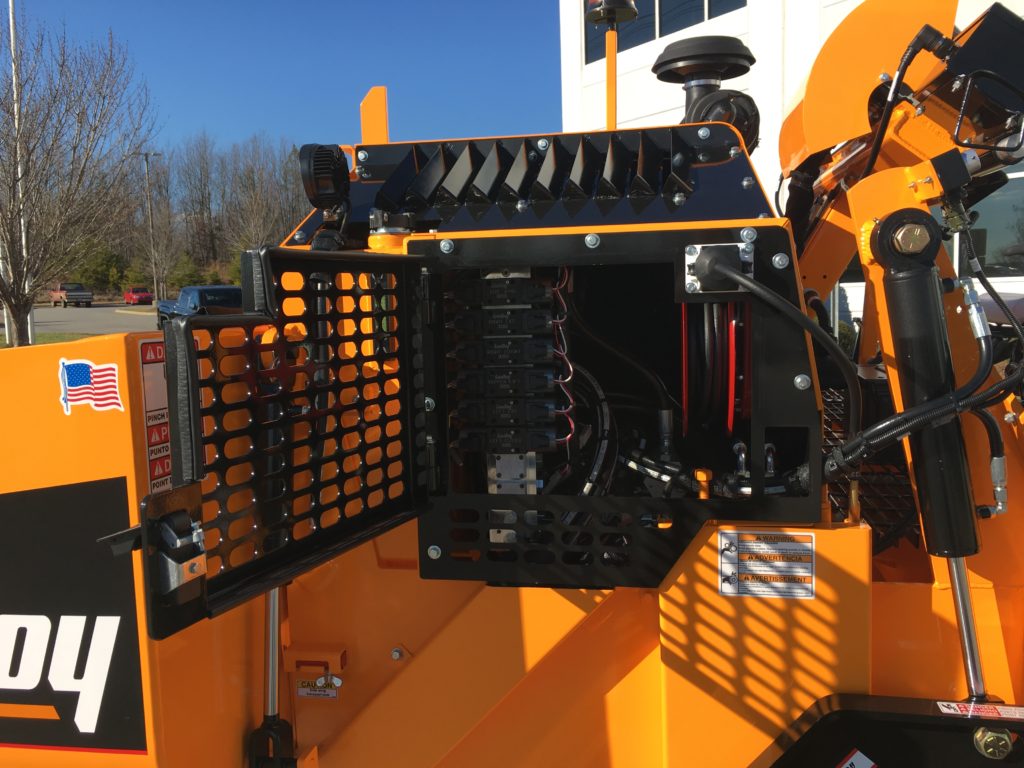

Hydraulic System
- Variable volume hydraulic pumps for each drive
- A constant volume pump for conveyors and cylinder functions and a constant volume pump for generator, 3 pump system
- Hydraulic oil: all weather, all temperature
Push Rollers
- Two 3" (0.076 m) diameter rollers with sealed bearings mounted on a swivel frame
- Vertically adjustable push rollers, 7” (.178 m) of height adjustment
Track Drive System
- Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, four rollers and hydraulically adjustable front idler
- Drive mechanism is torque hub driven which consist of two speeds and obtained by means of a toggle switch
- Fail safe brakes
- Track size: 14” wide x 77” long (.360 x 1.956 m) poly 4 rollers
OR - Rubber Track Option: 15.75” wide x 77” long (.400 x 1.956 m) rubber 5 rollers
- Steel Track Option: 12” wide x 77” long (.304 x 1.956 m) steel 5 rollers
- Paving speed: 0 to 150’ per minute (1.7 mph)
- Travel speed: 0 to 300’ per minute (3.4 mph)
Additional Standard Equipment
- Electronic gauge package (oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, hydraulic level warning, engine diagnostics)
- Back-up alarm
- Rotating safety beacon
- LED working lights
- Vandalism protection covers
- Horn
- Spray down system with 2 hose reels
- 2 seats
- Poly track (standard track)
Optional Equipment
- Legend Heavy-duty electric heated screed variable up to 15’ (4.572 m), 10kw generator, weight: 3,230 lbs

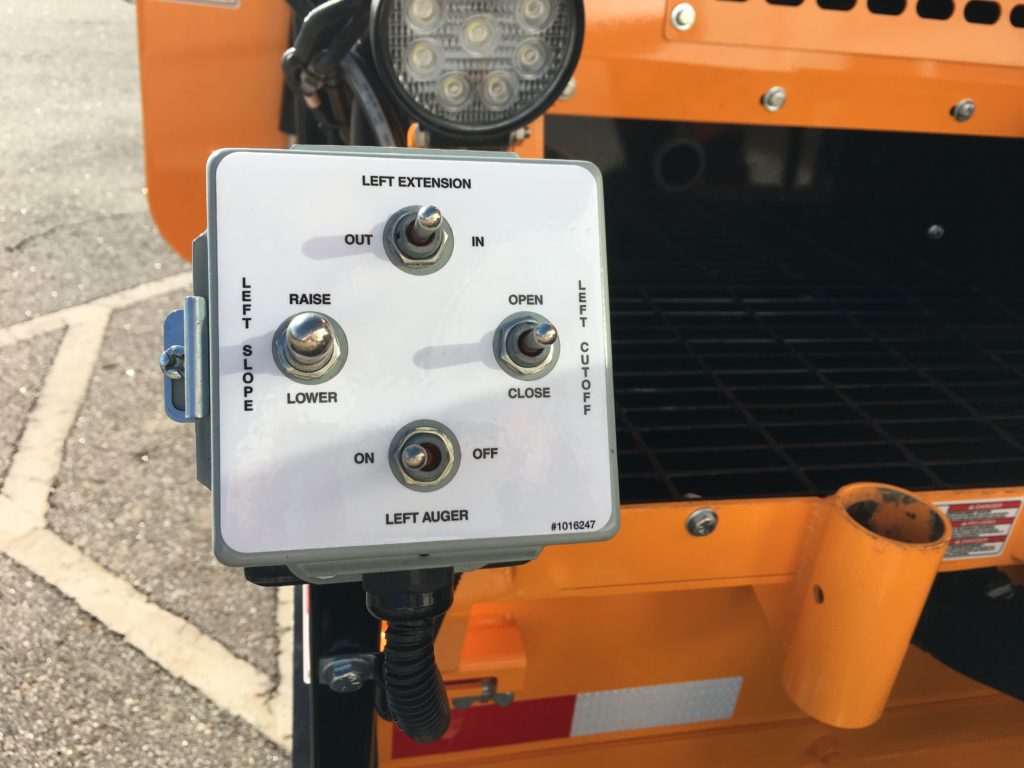

- Remote screed controls
- Automatic screed temperature controls (Legend HD screed only)
- Screed extension vibration (Legend HD screed only)
- Rubber track, continuous - in lieu of Poly
- Steel track – in lieu of poly track
- Single point lube system - screed
- Sloping screed extensions
- Heated end gates
- Slope meter
- Horizontal flight screws
- 3:1 flight screw adjusters
- Hydraulic tow points
- Walkboard extensions slide outs (left and right)
- Truck hitch
- Truck hitch valving
- Power crown
- Steering wheel drive controls (in lieu of joysticks)
- Wiring only, grade controls, includes A/M module Sonic grade control both sides
- Sonic grade control, one side (TopCon)
- Dual sonic grade (Topcon System P-32)
- Dual sonic grade and slope (Topcon System P-32)
- 12” x 4.5” (.304 x .11 m) berm extension, left and right (Legend HD screed only)
- 4 – adjuster screed (special option)
Training, Support and Company
- Training and support manuals
- Optional on-site operator training by Dealer
- One-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 50+ years manufacturing experience
- ISO 9001 Certified
- Manufactured in the USA
Job Application
- Parking Lots
- Driveways
- Municipal Work
- Subdivisions
- State Roads
- County Roads
Key Features
- Wide-conveyor system produces highest quality mat
- Low profile engine hood for better visibility
- Choice of high deck or low deck configuration
- Electric over hydraulic controls
- Optimized hydraulic circuit
