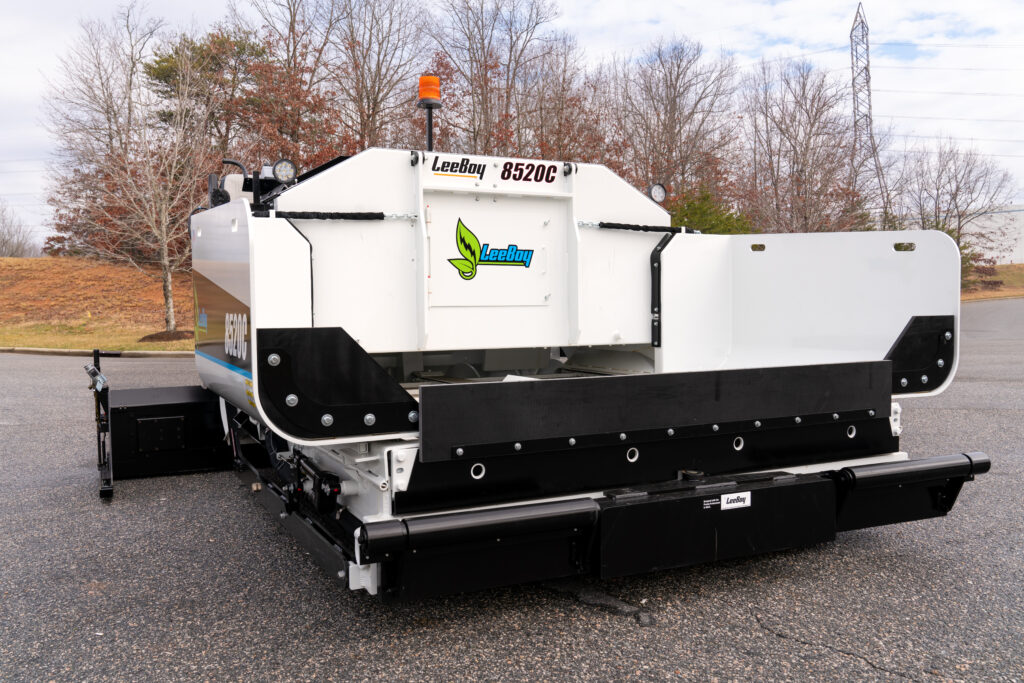

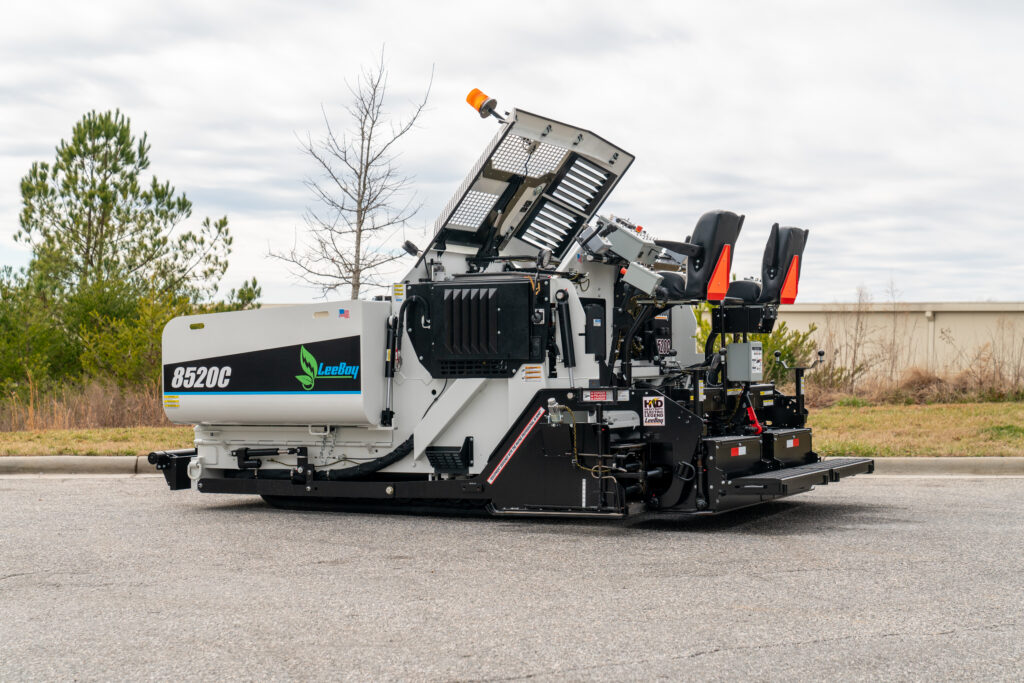

8520C Electric
Introducing the first all electric asphalt paver in commercial paving. The LeeBoy 8520C Electric Paver opens a new lane for commercial paving contractors with the proven performance operators have come to expect from LeeBoy. The electric paver was designed with trusted LeeBoy features and technology like the Legend HD Screed, high flow hydraulic systems, and operator friendly toggle switch controls. These are seamlessly integrated with GM’s proven battery and drive systems. This not only helps contractors meet their sustainability goals, but can also improve operating efficiency and comfort.
Find a Dealer Compare ProductsLeeBoy 8520C Electric
Technical Specifications

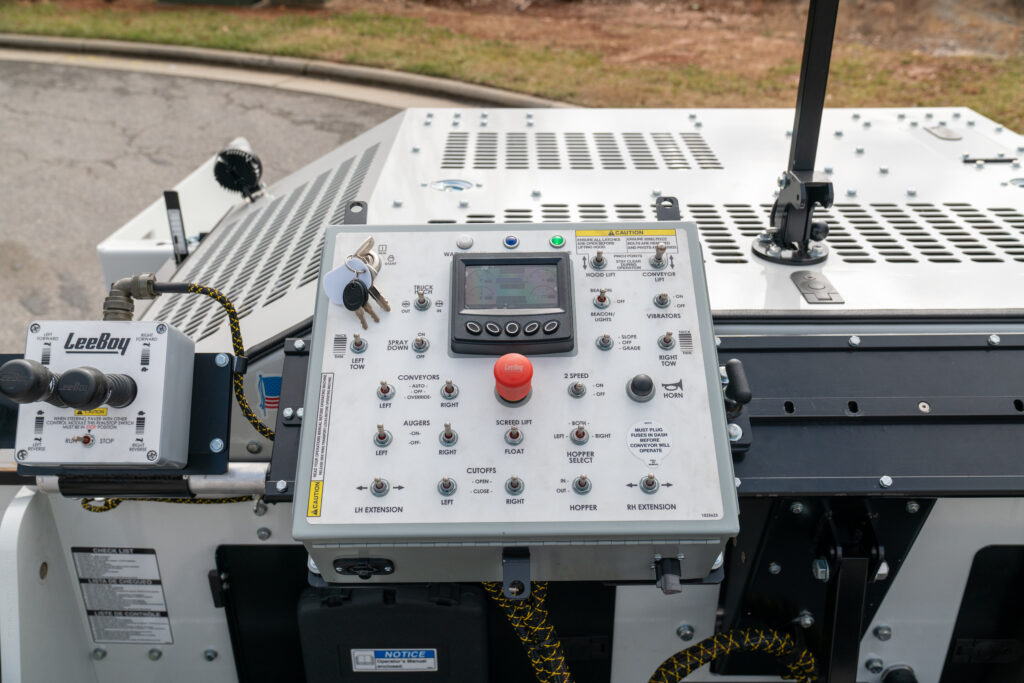

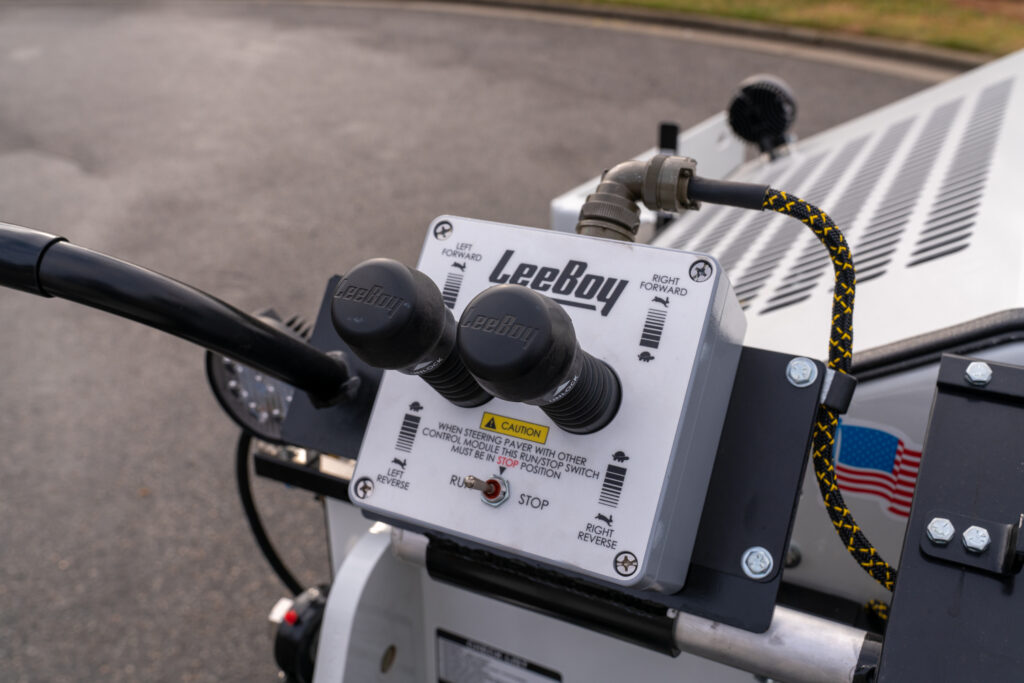

Operator’s Controls
- All control switches are in a single control box
which slides from right side to left side - Each side of the screed has independent control
box
Dimensions
- Length: 14’ 10” | 13’ 10” Transport
- Width: 8’ 6” transport
- 10’ hopper wings down
- Height: High Deck: 6’ 10”
- Total Weight: 22,000 lbs.
Drive System
- General Motors 48kW battery and battery
management system - General Motors Drive Motor
- Drive Motor calibrated to maximize productivity
- Capable of paving up to 200-300 tons on a single
charge, depending on usage and loading.
Capacities
- Hydraulic reservoir: 25 gallons
- Washdown tank: 7 gallons
Paving Widths
- Machine has variable paving widths up to 15’
