• 74 hp (55.4 kw) @ 2,200 rpm

  • Weight (with screed): 17,720 lbs

  • Paving Widths Variable Up To 15’

Dimensions

  • Length: 13’ 5”
  • Width:  8’ 6” transport
    10’ hopper wings down
  • Height:  8’
  • Total Weight (with screed):  17,720 lbs

Engine

  • Kubota turbocharged diesel
  • Tier 4 Final - 74 HP (55.4 kW) @ 2,200 rpm

Capacities

  • Fuel: 19 gallons
  • Hydraulic: 67 gallons
  • Washdown tank: 7 gallons

Hopper

  • Hopper size:  7.5 ton
  • Hopper height: 23”
  • Hopper wings: Heavy-duty .375” with large radius corners

Paving Widths

  • Variable up to 15’

Paving Depths

  • Electrically operated tow point control with toggle switches allow operation of grade control from the main control box
  • Includes manual flights screws positioned on the screed
  • Depth:  0” to 6”

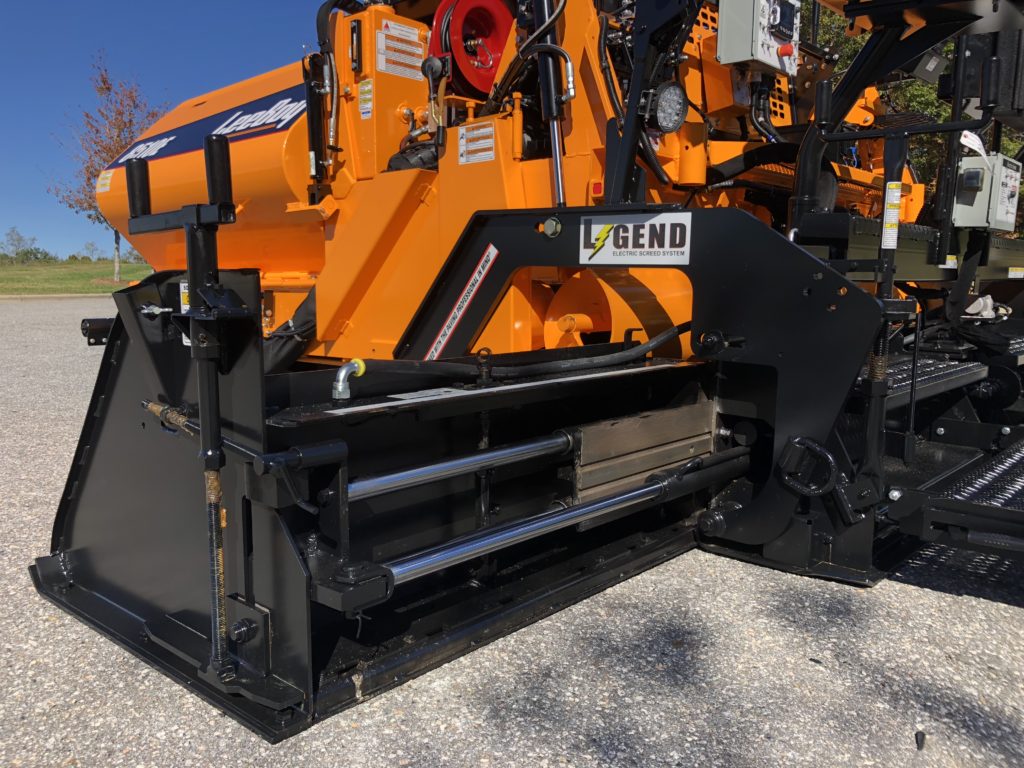

Screed

  • Propane screed standard, weight: 2,510 lbs
  • Legend LP full free floating 96” screed
  • Consisting of a 15” by 8’ main screed
  • Constructed of .375” Hardox® 450 bolt-on wear plates for easy replacement
  • Wear plate has bullnose on front

Screed End Gates

  • Equipped with vertical height adjustment and tilt with replaceable wear shoes

Screed Extensions

  • Two 44” screed extensions hydraulically operated
  • To eliminate seams, the heated extensions are adjustable and mounted flush with the main screed
  • Includes replaceable .25” Hardox 450 bottom wear plates
  • Extension length:  3’ 6”
  • Walkway width:  12”

Screed Heat

  •  Two 54,000 BTU propane burners on main screed
  •  Each extension has one 36,000 BTU propane burner
  •  One 36,000 BTU burner ignitor

    OR

  • OPTION: Electric Screed Heat
    - Self-contained, hydraulically driven generator heating system
    - Environmentally sealed blade heaters on main screed and extensions
    - Electronic heat control system
    - One blade element in each extension
    - Heavy-duty Legend electric heated screed available
    - Electric screed weight: 2,600 lbs  / HD Electric screed weight: 3,075 lbs

Screed Vibration

  • Equipped with two electric vibrators capable of producing up to 3,400 vibrations per minute each (preset at 2,400 VPM)

Screed Crown/Invert

  • Equipped with a crown/invert adjustment allowing at least 2" of crown and 1.5" of valley
  • Includes a leveling indicator for the operator to know when the screed is level

Under Auger Material Cutoff

  • Two independent hydraulically operated 4’ wide gates located under the augers and constructed of .375” A-36 plate steel

Material Augers

  • Two independent automatic or manual operated hydraulic casted segmented augers constructed with .625” AR 4140 HT (heat-treated) steel with replaceable flights
  • Augers are 12” diameter
  • Controlled automatically with sonic units (non-contacting)
  • Replaceable auger back
  • Heavy-duty auger motors

Conveyor

  • Dual 36” feed conveyors
  • Each conveyor is independent with automatic cut-offs
  • Conveyor is hydraulically raiseable to allow for cleaning and service

Operator’s Platform

    Optional Low Deck
    • Two seats mounted on the screed
    • Can be removed for standing
    • Two piece, grip strut, anti-slip walk board platform
    • Walk board extensions slide out, left and right
    OR
      Optional High Deck
      • Full machine width platform with both right and left hand seats mounted on tractor
      • 4’ 6” above ground
      • Includes a lockable cover for the instrument panel
      • Two piece, grip strut, anti-slip walk board platform
      • Walk board extensions slide out, left and right

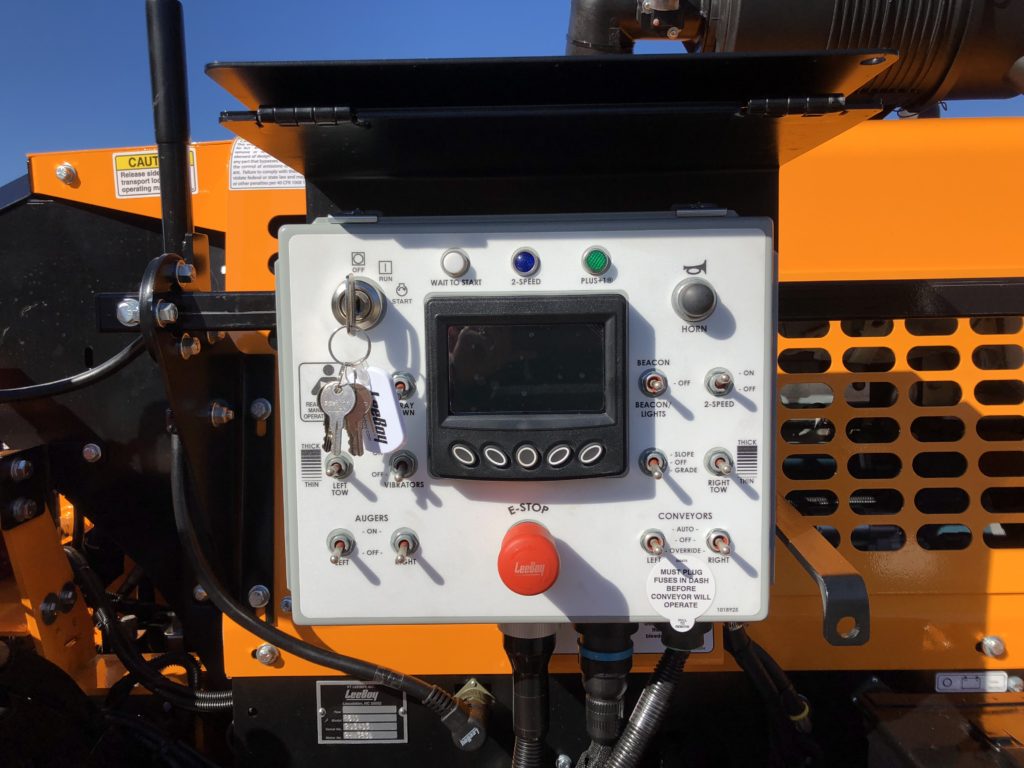

      Operator’s Controls

      • Includes dual electronic steering
      • All functions can be controlled from left side
      • Right side levers include screed raise/float, left and right cutoffs, hopper wings, and right screed extension
      • Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, engine diagnostics

      Steering

      • Dual electronic steering controls
      • It can be controlled from a high deck position or lowered to control at the screed
      • Electronically controlled pumps operate the forward/reverse motion from dual joysticks

      Washdown System

      • Electric HD pump with two 25’ x .375” diameter hose reels and spray nozzles
      • Built in pressure sensor and shutoff
      • Citrus tank sight gauge

      Hydraulic System

      • Variable volume hydraulic pumps for each drive
      • A constant volume tandem pump for charge pressure and conveyor function and another constant volume pump for generator and auger functions
      • Hydraulic reservoir:  67 gallons
      • Hydraulic oil: all weather, all temperature

      Push Rollers

      • Two 3” diameter rollers with sealed bearings mounted on swivel frame
      • Vertically adjustable push rollers, 7” of height adjustment
      • Adjustable height push rollers with self-cleaning scrapers

      Track Drive System

      • Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, five rollers and hydraulically tensioned front idler
      • Tracks are torque hub driven with two-speed motors, hi/low speed is selected by a toggle switch in the control box
      • Fail-safe brakes
      • Track size:  14” wide x 77” long poly 5 rollers

        OR

      • Rubber Track Option: 15.75” wide x 77” long rubber 5 rollers
        - Paving speed:  0 to 135’ per minute (1.5 mph)
        - Travel speed:  0 to 290’ per minute (3.2 mph)

      Additional Standard Equipment

      • Back-up alarm
      • LED beacon light
      • LED work light package
      • Vandalism protection covers and removable steering boxes
      • Horn
      • Spray down system with 2 hose reels
      • Citrus tank
      • 2 seats
      • Poly track (standard track)

      Optional Equipment

      • Electric Legend Plus Screed, 8’ to 15’, weight: 2,600 lbs
      • Legend 815 Heavy-Duty Electric Screed, 8’ to 15’, weight: 3,075 lbs
      • Screed extension vibration, only available on the Legend 815 Heavy-Duty Screed
      • Automatic screed temperature control, only available on the Legend 815 Heavy-Duty Screed
      • Heated endgates, available on the Legend 815 Heavy-Duty Screed
      • Slope meter
      • Horizontal flight screws, available on the Legend 815 Heavy-Duty Screed
      • 3:1 flight screw adjusters, available on the Legend 815 Heavy-Duty Screed
      • Single point lube system, screed
      • Rubber track continuous, in lieu of poly
      • Steel track, in lieu of poly
      • High deck configuration
      • Steering wheel drive controls, in lieu of joysticks
      • Manual drive, steering controls, in lieu of joysticks
      • Truck hitch
      • Truck hitch valving
      • Wiring only, grade controls (Topcon), includes A/M modules
      • Sonic grade control, one side (Topcon)
      • Dual grade control (Topcon P-32 system)
      • Dual grade and slope (Topcon P-32 system)
      • 12” x 4.5” berm extension, left and right, only available on the Legend 815 Heavy-Duty Screed

      Training, Support and Company

      • Training and support manuals
      • Optional on-site operator training by Dealer
      • Two-year, unlimited hours warranty against any manufacturer defects
      • Extended warranty available
      • 55+ years manufacturing experience
      • ISO 9001 Certified
      • Sourcewell Contract#052417-VTL
      • Manufactured in the USA

      Compare Pavers

      Continue

      Job Application

      • Parking Lots
      • Driveways
      • Municipal Work
      • Subdivisions
      • State Roads
      • County Roads

      Key Features

      • Wide-conveyor system produces highest quality mat
      • Choice of high deck or low deck
      • Familiar controls for 8500 users
      • Cable controlled hydraulics
      • Legend Propane (LP) Screed standard
