• Tier 4 Final – 125 hp (93 kw)

  • Weight (with screed): 22,520 lbs. (10,215 kg)

  • Paving Widths Variable Up To 15’ 6" (4.72m)

Dimensions

  • Length: 15’ (4.57 m)
  • Width:  8’ 6” (2.59 m) transport
    10’ (3.05 m) hopper wings down
  • Height:  6’ 8” (2.02 m) low deck
    7’ 9” (2.37 m) high deck
  • Total Weight (with screed):  22,520 lbs  (10,215 kg)

Engine

  • Kubota turbocharged diesel
  • Tier 4 Final - 125 HP (93.2 kW)
  • Remote mounted DOC + DPF + SCR
  • MURR I/O distributor blocks with LED lighting

Capacities

  • Fuel: 32 gallons (121 l)
  • Hydraulic: 25 gallons (94.6 l)
  • Washdown tank: 7 gallons (26.5 l)
  • DEF tank:  5 gallons (18.9 l)

Hopper

  • Hopper size:  9 ton (8,164 kg)
  • Hopper height:  31.75” (0.806 m)
  • Hopper wings:  Heavy-duty .5” (12.7 mm) with large radius corners
  • Rear hopper wing wipers

Paving Widths

  • Variable paving widths up to 15’ 6" (4.72 m)

Paving Depths

  • Electronically operated tow point cylinders
  • Includes manual flights screws positioned on the screed
  • Depth:  0 to 8” (203 mm)

Screed

  • Legend HD PRO screed standard, weight: 4,150 lbs
  • Legend HD PRO full free floating 96” (2.44 m) main screed
  • Consist of a 18” (.457 m) deep main screed
  • Constructed of .375” (9.52 mm) HARDOX 450 bolt-on wear plates for easy placement
  • Wear plate has bullnose on front
  • Rear wear plate adjustment
  • Adjustable strike offs

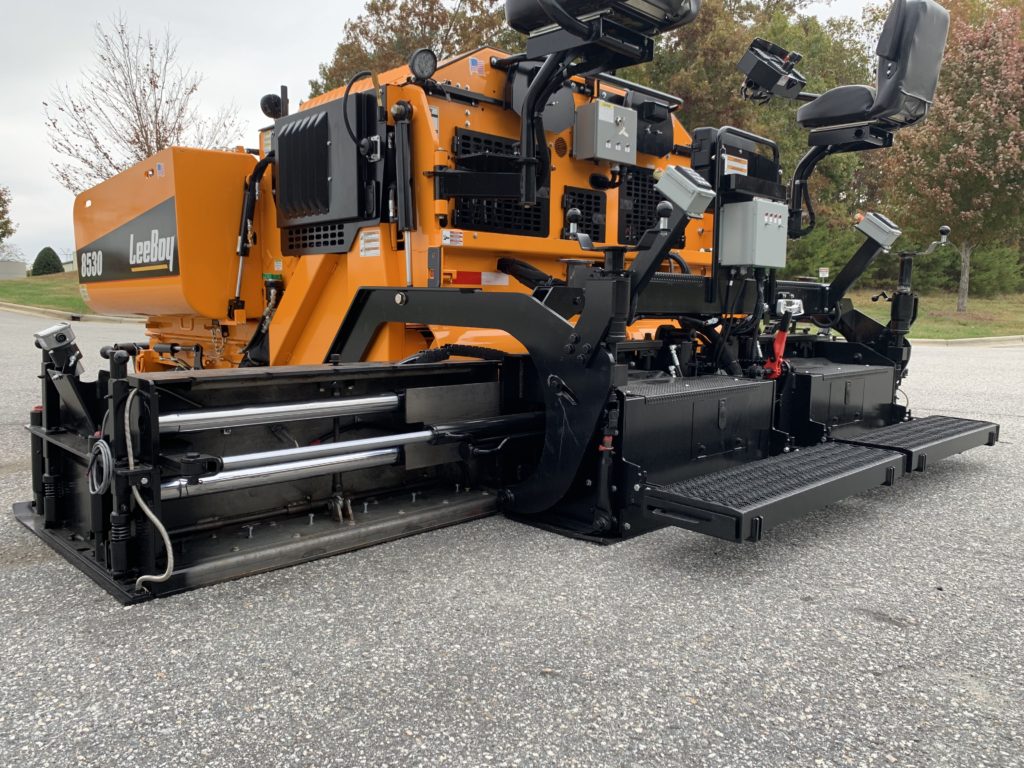

Screed Extensions

  • Two 46” (1.16 m) x 9” (229 mm) hydraulically operated screed extensions
  • The heated extensions are adjustable and mounted flush with the main screed
  • Energy chain, each screed extension
  • Includes replaceable .375” (9.52 mm) by 9” (229 mm) AR 450 bottom wear plate
  • Walkway width:  12” (0.305 m)
  • Sloping screed extensions standard
  • Adjustable strike offs

Screed Heat

  • Legend HD PRO Screed, electric heat
  • 14.4 kw generator
  • Electric timer and automatic temperature control (ATC)
  • Automatic RPM control system
  • Environmentally safe, sealed S-curve elements in main screed and sealed, blade-style elements in extensions

Screed Vibration

  • Equipped with two electric vibrators producing 70lbs of force each
  • 4,100 rpm, each vibrator

Screed Crown/Invert

  • Equipped with a crown/invert adjustment allowing at least 2.5" (0.063 m) of crown and 1.5" (0.038 m) of valley
  • Includes a levelling indicator for the operator to know when the screed is level

Screed End Gates

  • Spring-loaded end gates
  • Equipped with vertical height adjustments and tilt with replaceable wear shoes

Under Auger Material Cutoff

  • Two independent hydraulically operated 4' ( 1.219 m) wide gates located under the augers and constructed of .375" (9.53 mm) A-36 plate steel
  • Can be configured to automatically close in reverse

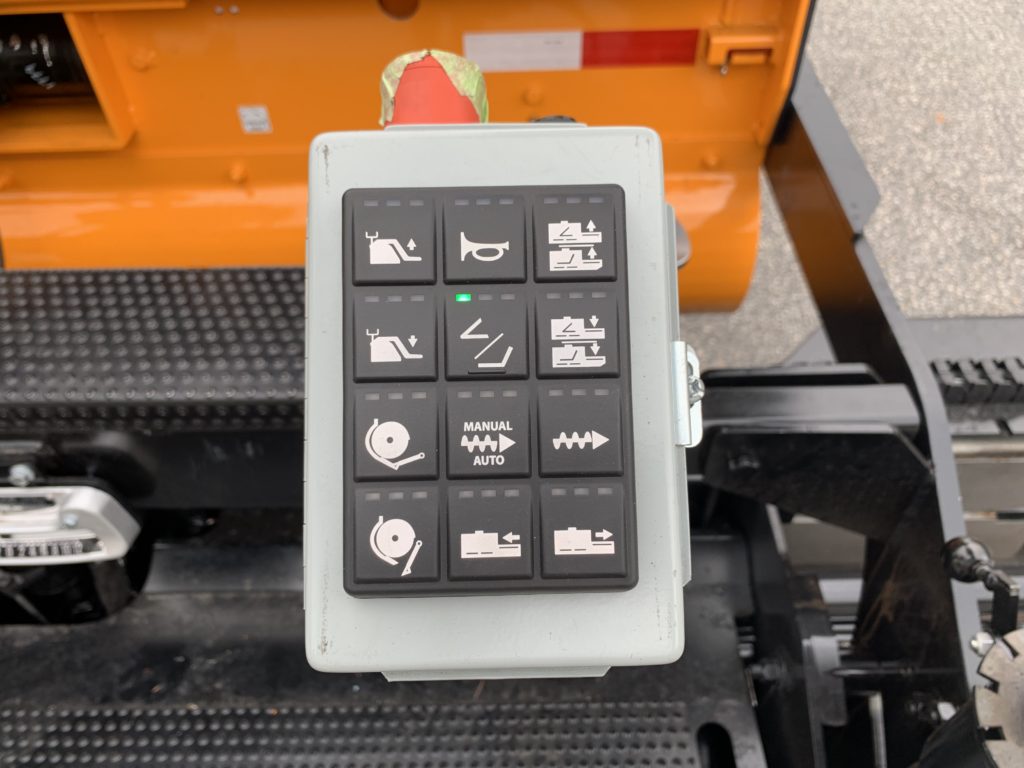

  • Operational from the main control panel or screed controls

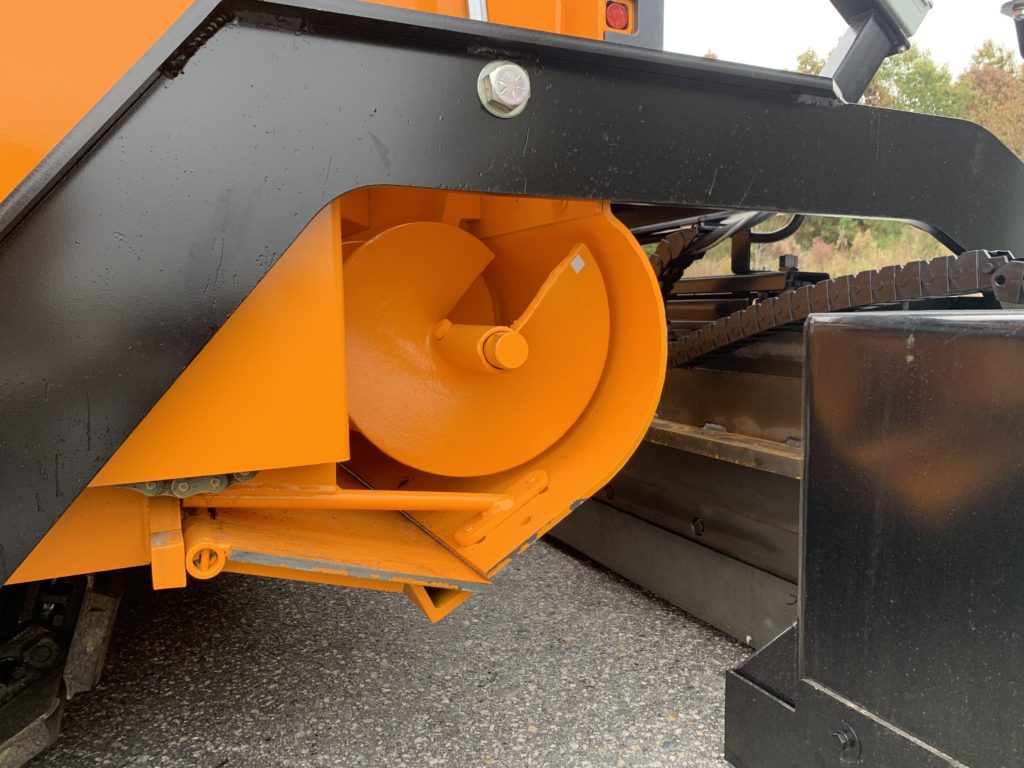

Material Augers

  • Two independent, hydraulically driven, segmented augers.  Operated automatically or manually
  • Augers are reversible
  • Variable speed from 0-173 rpm
  • Quick change auger assemblies
  • Augers are 12” (.305 m) diameter, 12” (.305 m) pitch and are cast from .75” (19 mm) HRC 55-60
  • System has manual override function  and automatic functions are controlled by sonic sensors (non-contracting)
  • Single point lube system

Conveyor

  • Two independent, hydraulically driven conveyors with automatic shut-off
  • Dual 36” (0.914 m) feeding conveyors
  • Conveyors are reversible
  • Front heavy-duty conveyor chain adjustments, does not require lifting of conveyor floor
  • Quad bearings, front and rear conveyor
  • Conveyor is hydraulically raiseable to allow cleaning and service
  • System has manual override function and automatic functions are controlled by a paddle and limit switch
  • 3,000 hour Wide-Conveyor Floor Assembly Warranty

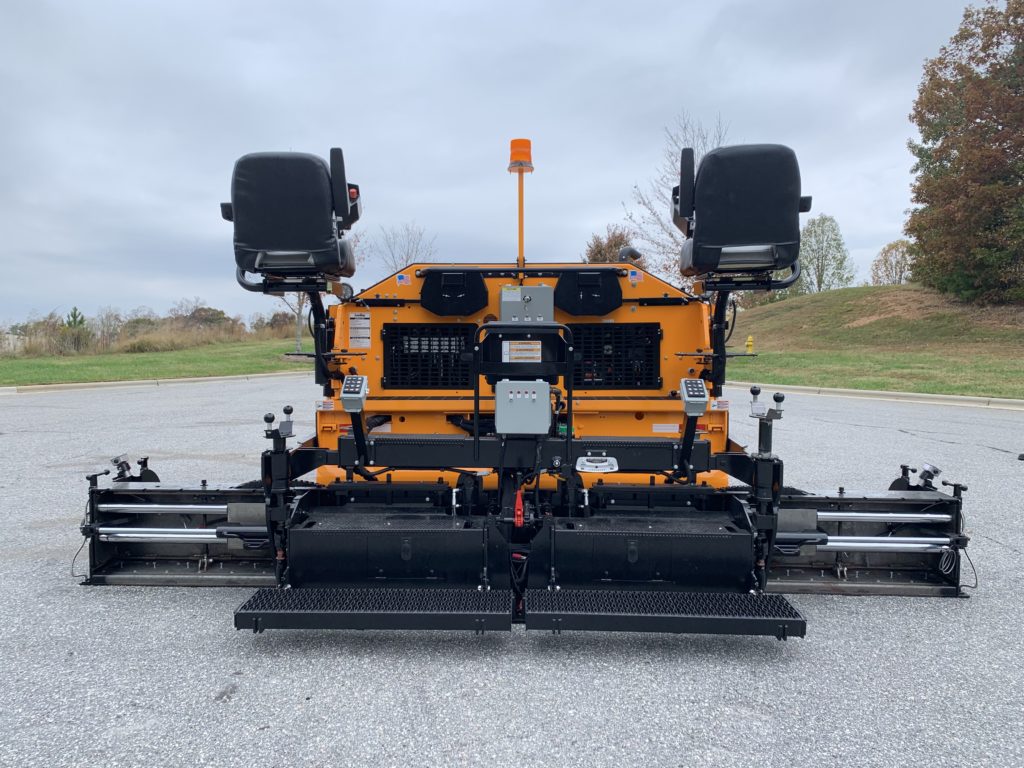

Operator’s Platform

  • Includes both right and left hand seats 6' 1" (1.85 m) above ground with a lockable cover for the instrument panel
  • Various pivoting and adjustable swing out seat positions
  • Two piece, grip strut, anti-slip walk board platform
  • Walk board extensions slide out, left and right
  • Walk boards fold up and lock for transport and working requirements

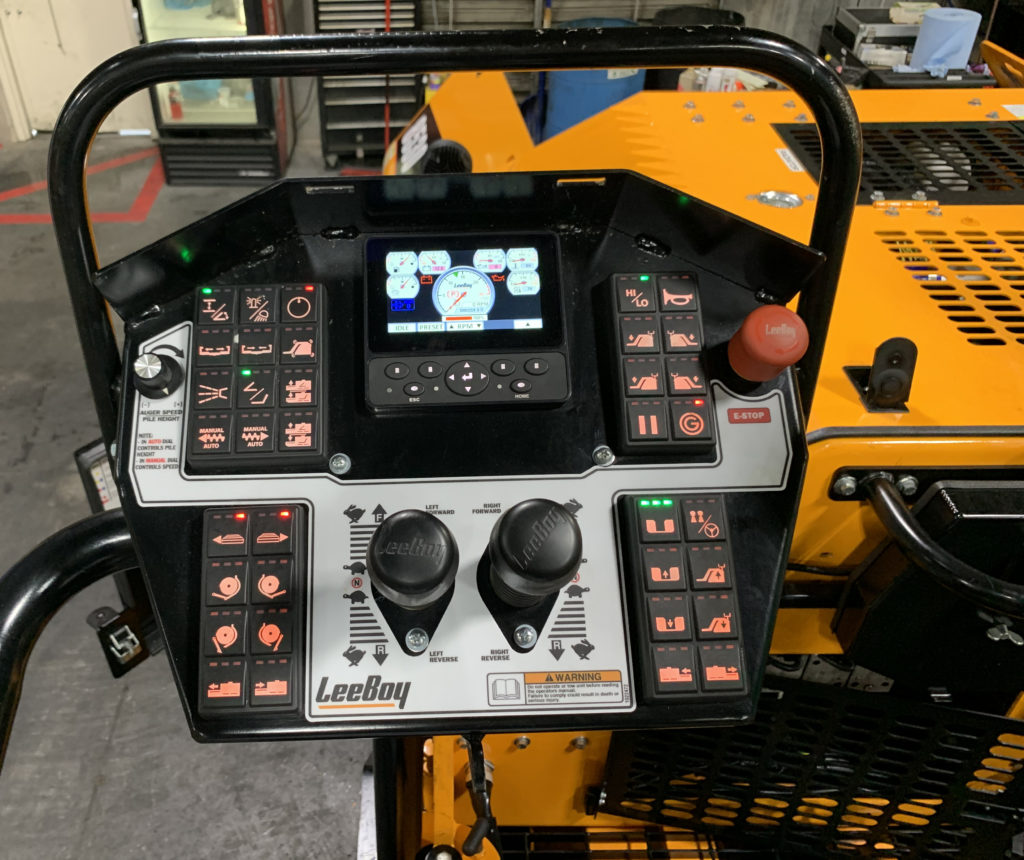

Operator’s Controls

  • High deck/low deck configuration
  • Includes dual electronic steer
  • Dual, independent adjustable control stations interchangeable in the field
  • Dash panel includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lights
  • User-friendly, icon-based CAN Bus controls
  • Backlit keypad with LED indicator lights
  • Colored LED, sunlight viewable control screen with digital readouts. Review and monitor system vitals including: RPM, paving speeds, system pressures, screed temperature and generator usage

Steering

  • Dual electronic steering controls
  • Machine can be controlled from a high deck position or lowered to control at the screed
  • Electronically controlled pumps operate the forward/reverse motion from dual joysticks

Washdown System

  • Electric HD pump with two hose reels with 15' X .3125" (4.572m x 8 mm) diameter hose
  • Citrus tank sight gauge

Hydraulic System

  • Variable volume hydraulic pumps for each drive
  • Independent constant volume pumps for augers, conveyors, cylinders, and charge
  • Hydraulic reservoir:  25 gallons (94.6 l)
  • Hydraulic oil: all weather, all temperature
  • Dual 77,000 BTU oil coolers

Push Rollers

  • Two 3" (0.076 m) diameter rollers with sealed bearings mounted on a swivel frame
  • Vertically adjustable push rollers, 7” (.178 m) of height adjustment
  • Built in material scraper on each push roller

Track Drive System

  • Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, seven rollers and hydraulically adjustable front idler
  • Drive mechanism is torque hub driven which consist of two speeds and obtained by means of a keypad button
  • Fail safe brakes
  • Track size:  14” wide x 87” long (.360 x 2.2 m) poly 7 rollers OR Rubber Track Option: 15.75” wide x 87” long (.400 x 2.2 m) rubber 7 rollers
  • Paving speed: 0 to 150’ per minute (1.7 mph, 2.7 kph)
  • Travel speed: 0 to 300’ per minute (3.4 mph, 5.4 kph)

Additional Standard Equipment

  • Gauge package (oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, engine diagnostics)

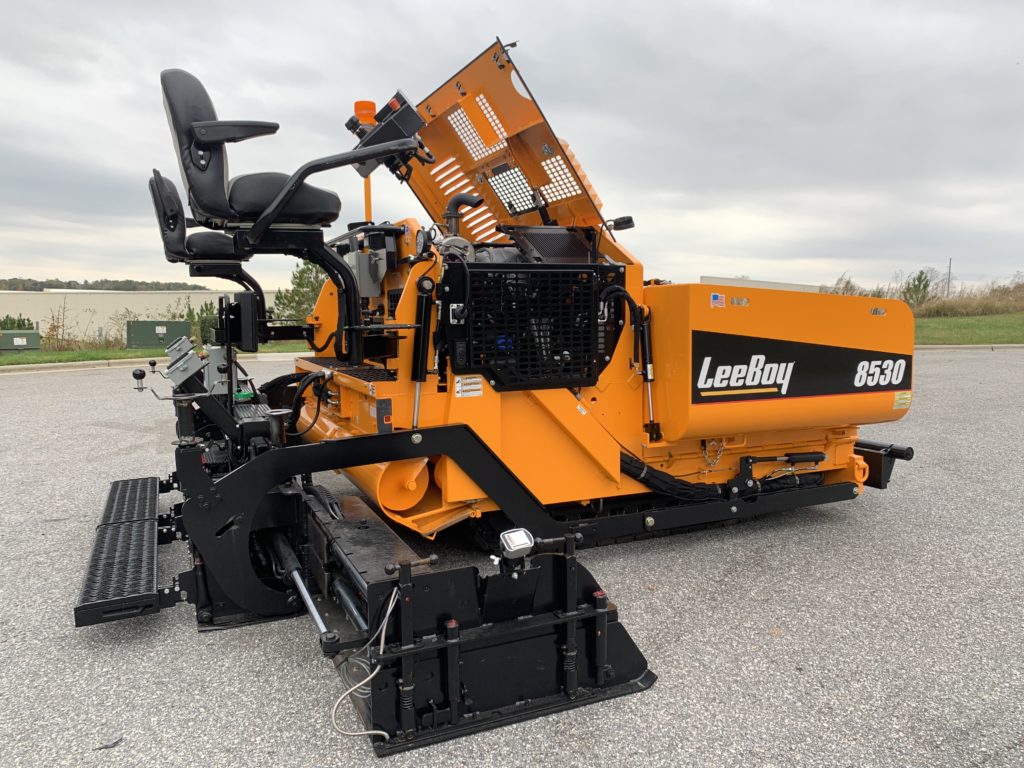

  • Actuator-driven hood lift
  • Ground-level service access doors
  • Integrated dual tool boxes on screed
  • Back-up alarm
  • Quick-folding safety beacon
  • Sliding LED work lights
  • Vandalism protection covers
  • Horn
  • 2 seats
  • USB port
  • Magnetic cup holders

Optional Equipment

  • Additional control post and wire harness, left side
  • Screed extension vibration
  • Rubber track, continuous
  • Heated endgates
  • Slope meter
  • 3:1 flight screw adjusters
  • Horizontal flight screws
  • Truck hitch
  • Truck hitch valving, excludes truck hitch
  • Power crown
  • Hydraulically extendable oscillating push rollers
  • Central point lube system, screed
  • Steering knob drive controls, in lieu of joysticks
  • Wiring only, grade controls (TopCon)
  • Sonic grade control, one side (TopCon P-32 system)
  • Dual grade control (TopCon P-32 system)
  • Dual grade and slope (TopCon P-32 system)
  • 12” x 6” berm extension, left and right
  • LED blade light system, DC powered, 2 individually mounted LED blades
  • Umbrella mounts (x2)

Training, Support and Company

  • Training and support manuals
  • Optional on-site operator training by Dealer
  • Two-year, unlimited hours warranty against any manufacturer defects
  • Extended warranty available
  • 55+ years manufacturing experience
  • ISO 9001 Certified
  • Sourcewell Contract#052417-VTL
  • Manufactured in the USA

Compare Pavers

Continue

Job Application

  • Parking Lots
  • Driveways
  • Municipal Work
  • Subdivisions
  • State Roads
  • County Roads

Key Features

  • 125 hp (93.2 kw) Kubota Tier 4 Final Engine
  • New Legend HD PRO Screed
  • Paving Widths up to 15’ 6” (4.72 m)
  • Enhanced Poly Pad Track Design
  • Remote Mounted SCR for Greater Visibility
  • Actuator Driven Hood Lift to Aid in Maintenance
  • Automatic Temperature Control (ATC) Standard
  • Dual Adjustable Control Consoles, Various Seat Positions for Maximum Comfort & Visibility
