NB15
The Rosco NB15 is a three-wheeled, self-propelled sweeper engineered specifically for professional use. It features a comfortable, ergonomic design and a powerful brush core for quality cleaning. The machine is also designed to be easily towed, making transport simple. This makes the NB15 a perfect fit for rental companies or any operation needing a dependable sweeper for paved surfaces.
Find a DealerResources

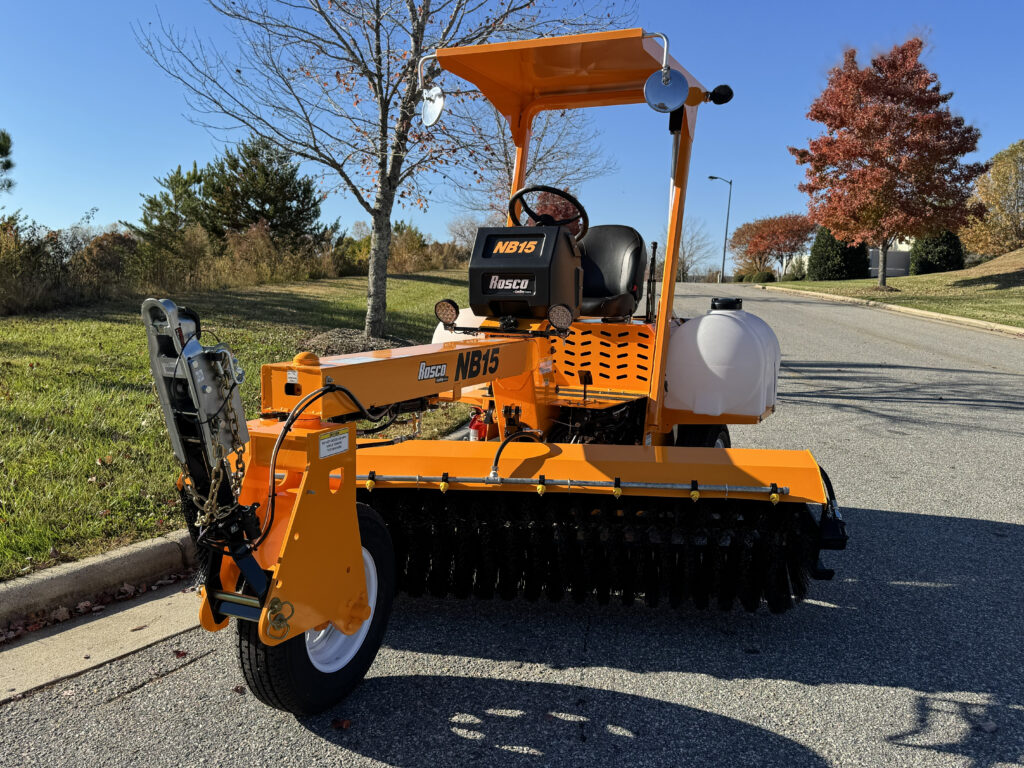

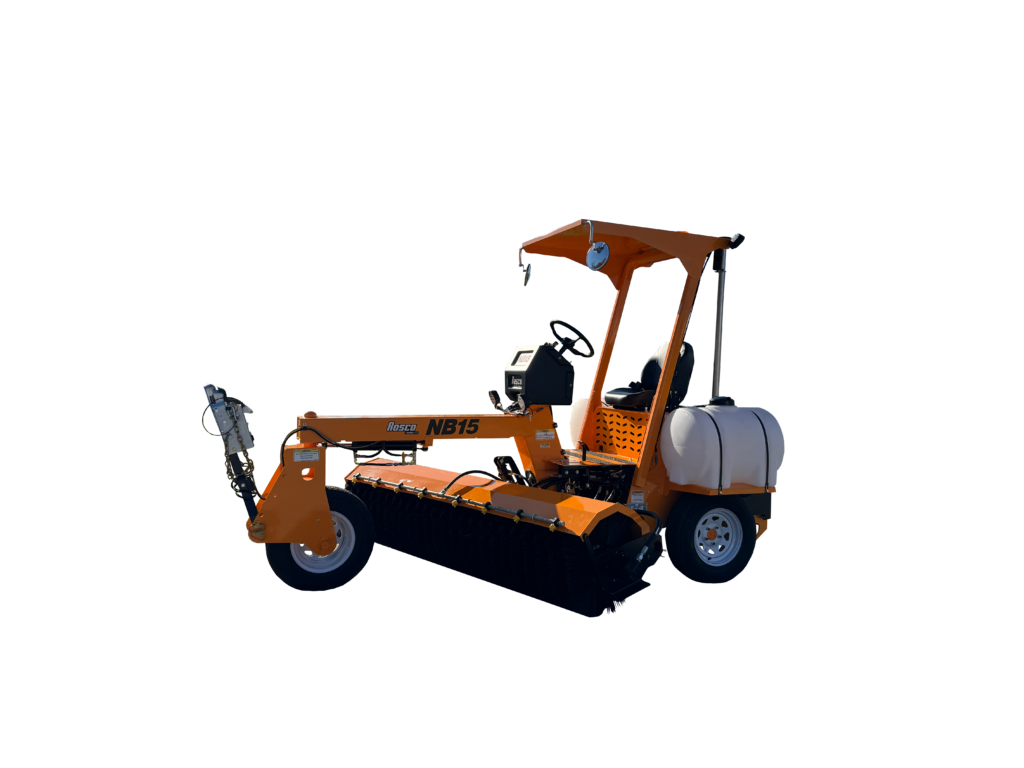

Rosco NB15
Technical Specifications
Dimensions
- Length: 15’1″ w/ Trailer hitch down
-
- 13′ w/ Trailer hitch up
- 12’2″ w/o Tow package
-
- Width: 9′ Brush centered
-
- 7’11” Brush fully rotated
-
- Height: 8’ 2′ Beacon flipped down, shipping
-
- 8’9″ Beacon flipped up, operating
-
- Wheelbase: 8’5″
- Track width: 4’3″
- Ground Clearance: 7″
- Turning Radius: 10’2″ center front wheel
- Turning Circle: 6’6″ inside rear wheel
- Total Weight: 2,620 lbs. w/o water
-
- 3,205 lbs. w/ water
-
Engine
- Standard: 25 hp max @ 3,300 rpm, Kubota D1105
- Electrical system: 12 volt system, alternator and battery
- Fuel reservoir: 8 gallons
Brush Location
- Center-Mount Brush Location
Brush
- Hydraulic control
- Hydraulic down pressure
- Speed: 180 rpm max, variable by engine speed
- Drive mechanism consists of direct hydraulic motor
- Filler: wafer type. poly, 24″ diameter, 8′ long
- Sweep angle: 30°, left or right
