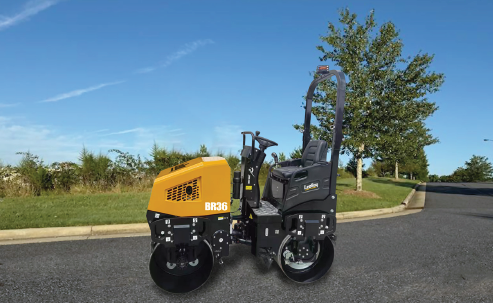

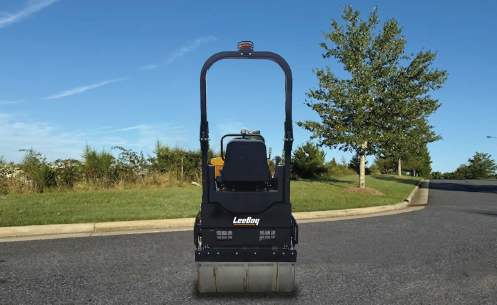

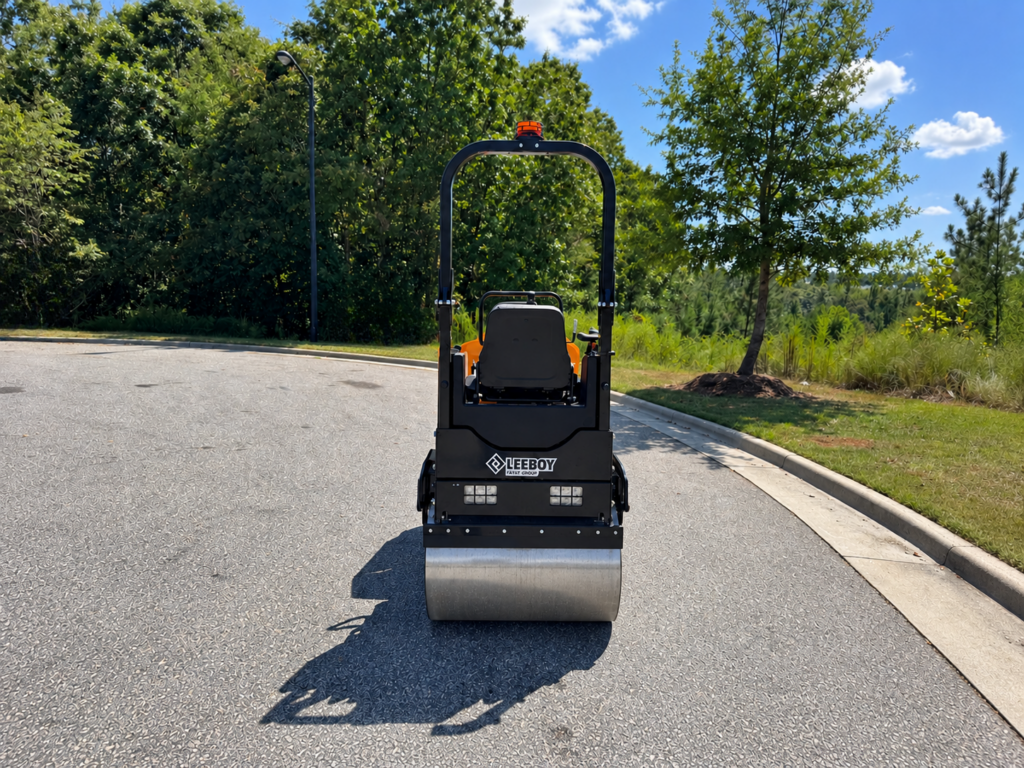

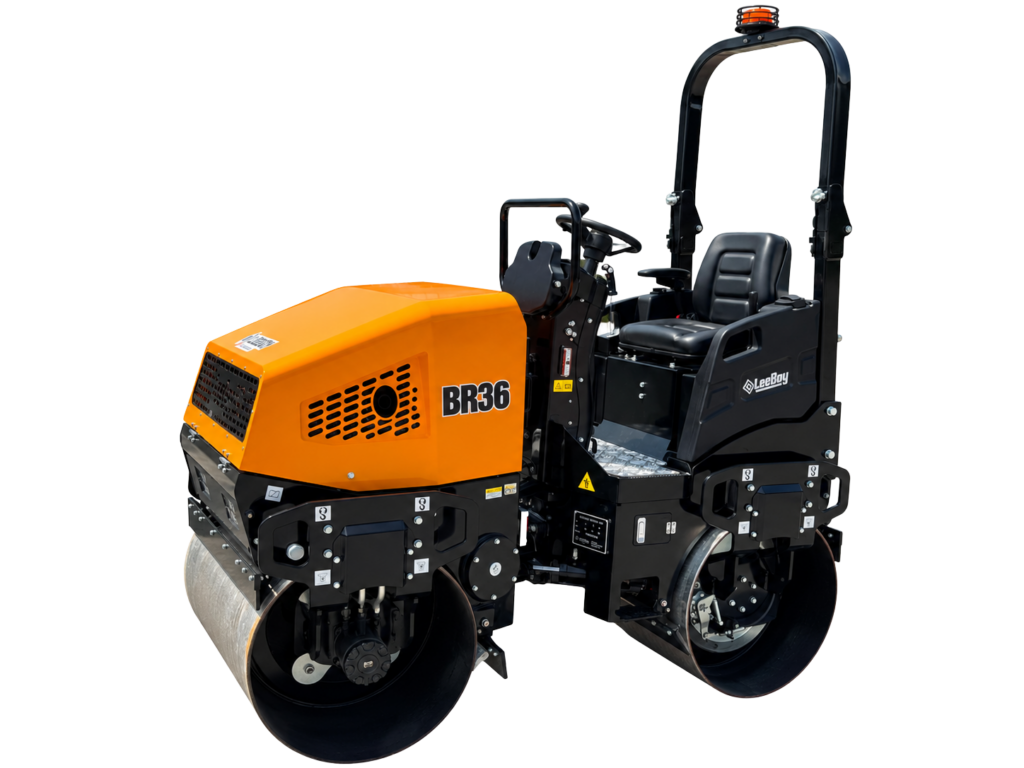

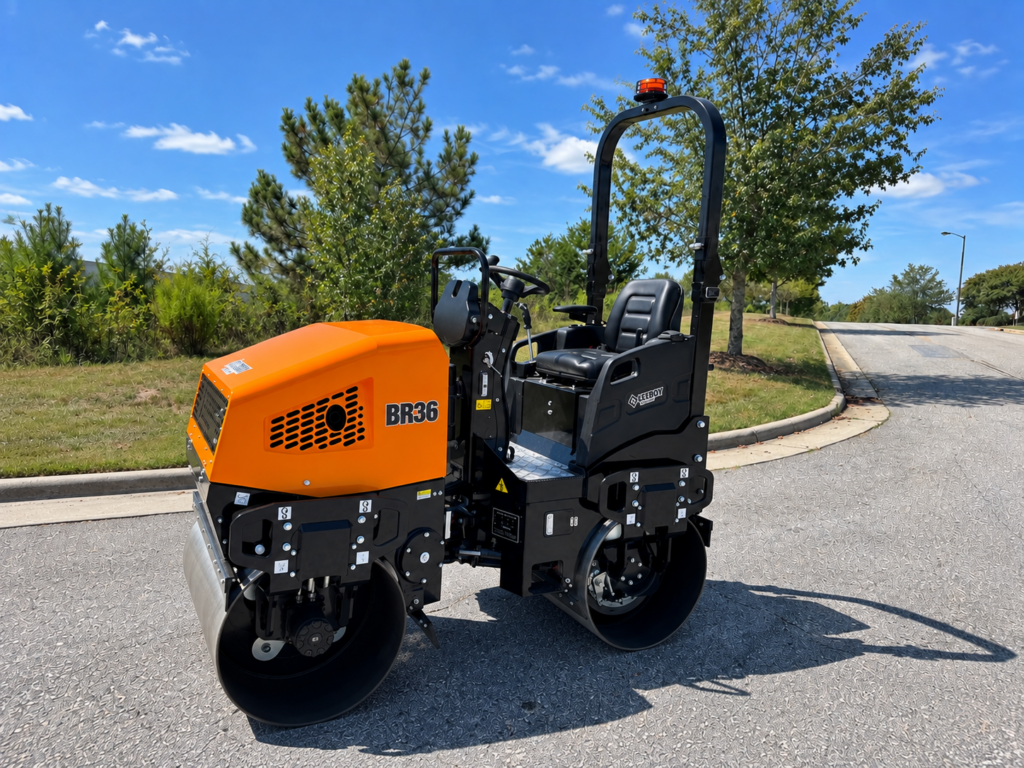

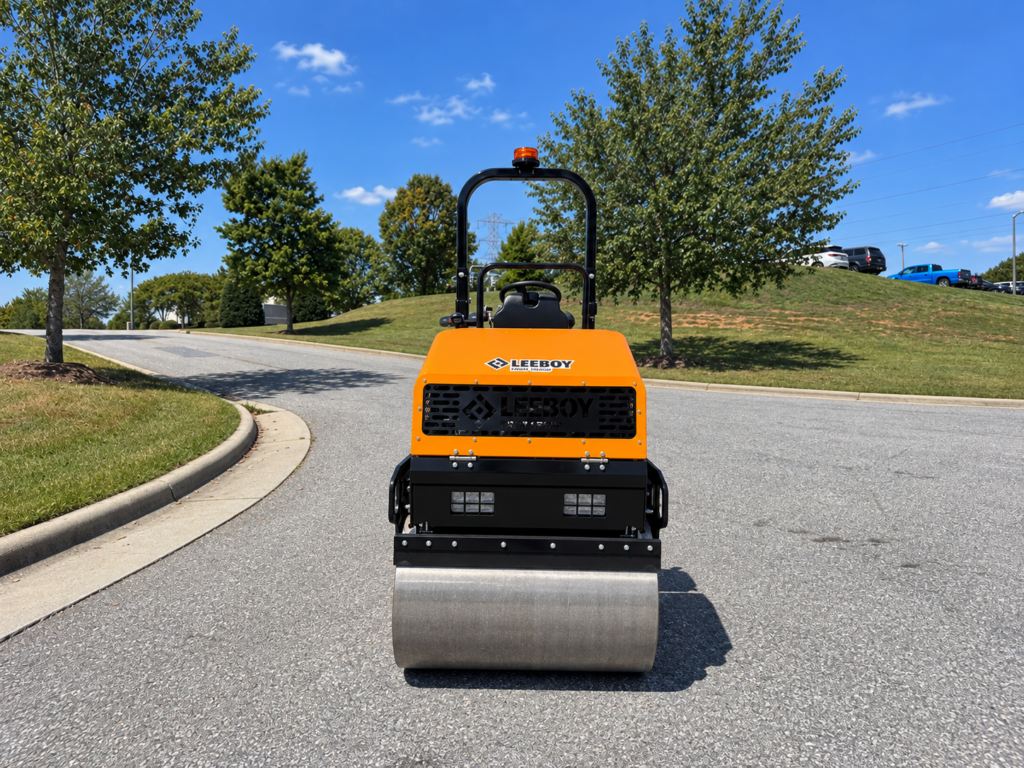

BR36
Asphalt Roller
The LeeBoy BR36 vibratory asphalt roller is a robust machine designed for efficient compaction with its 35.4-inch drum width. The vibratory system enhances compaction efficiency by quickly settling asphalt material. Powered by a Honda engine, providing reliable performance and durability on the job site. The hydrostatic transmission provides smooth operation, allowing precise control over speed and direction for a smooth mat. Ideal for compaction asphalt surfaces, the LeeBoy BR36 combines reliability, power, and ease of use for effective asphalt construction and maintenance projects.
Find a Dealer
Resources
LeeBoy BR36
Technical Specifications
Dimensions
Length: 6′ 7″
Width: 3′ 4″
Height: 5′ 5″ Folded ROPS
7′ 10″ with ROPS
Curb Clearance: 19.5″
Turning Radius: 9′ 10″ outer
Total Weight: 2,706 lbs
Engine
20.8 hp Honda GX630 @ 3200 RPM
Fuel tank capacity: 7.4 gallons
Air cooled
Drum
Width: 35.4″
Diameter: 24.4″
Thickness: 0.043″
Water Tank
Capacity: 32 – gal
Pressurized water system
Stainless steel bar with adjustable nozzles
Folding and spring-loaded scraper bars
Cleanable water filter
