• Controls: Plus+1 CAN Bus

  • Viking Asphalt Pump

  • Tank Size: 2,050 to 4,250 gallons


  • Length: Depends on type of truck purchased and options selected
  • Width: Depends on type of truck purchased and options selected
  • Height: Depends on type of truck purchased and options selected
  • Weight: Depends on type of truck purchased and options selected


  • 2,050 gallons to 4,250 gallons*

    *See Spec Sheet for important info


  • Meets all applicable Federal DOT tank regulations
  • ASTM A569 grade mild steel with minimum 10 gauge shell and 7 gauge flat heads
  • Flanged reinforced and welded to shell inside and outside of tank
  • Seams are all electrically welded
  • Thermometers:  One 4” dial thermometer
    One internal pencil thermometer


  • 2” rock wool with spacers to prevent compression
  • Clips to secure position of insulation and protected by an aluminum jacket

Surge Plates

  • 10 gauge steel with staggered openings to provide adequate tank strength and proper surge control


  • Weather tight and safety relieving cover with basket-type strainer
  • Inside splash guards
  • Steel measuring stick
  • Tank vent and overflow
  • Manhole opening:  22” in diameter
  • Overflow:  3” in diameter


  • At the rear of tank
  • Cleanout plug and suction line from the pump includes tank cutoff valve
  • Sump size:  4” in diameter

Heat System

  • Two diesel fired burners with electric ignition and heat limit controls
  • Two, u-type, high temperature flue pipes running the length of the tank
  • Single exhaust stack is constructed of stainless steel and includes a rain cover, removable if service is needed
  • Heating flue size:  8” in diameter throughout
  • Burners:  560,000 BTU per burner, per hour capacity

Asphalt Pump

  • Viking, positive displacement pump
  • Rotary gear type with built-in relief valve for safety
  • Asphalt pump driven by low-speed high torque fixed displacement hydraulic motor and connected by a flexible coupling
  • Pump:  560 gallons per minute

Optional Oil Heat

  • Heat exchanger in lower flue tube
  • Jacketing on emulsion tank sump
  • Jacketed Viking asphalt pump
  • Internal spraybar heating
  • High-temperature insulated flexible metal hoses and hard line

Distributing Lines

  • High temperature, flexible metal hoses
  • Steel pipe with ball and socket joint is not acceptable

Clean Out

  • Enviro-flush system allows solvent circulation through asphalt pump, valves, distributing lines and spraybar
  • Cleanout material returned to enviro-flush tank for later use or disposal
  • Flush tank:  25 gallons
  • Enviro-Flush tank:  25 gallons

Spray System

  • Nozzles are brass, slotted and valves are non-clogging
  • Each has a quick-disconnect feature allowing the operator to change spray widths in 4” increments across the entire bar without the use of tools or blank nozzles

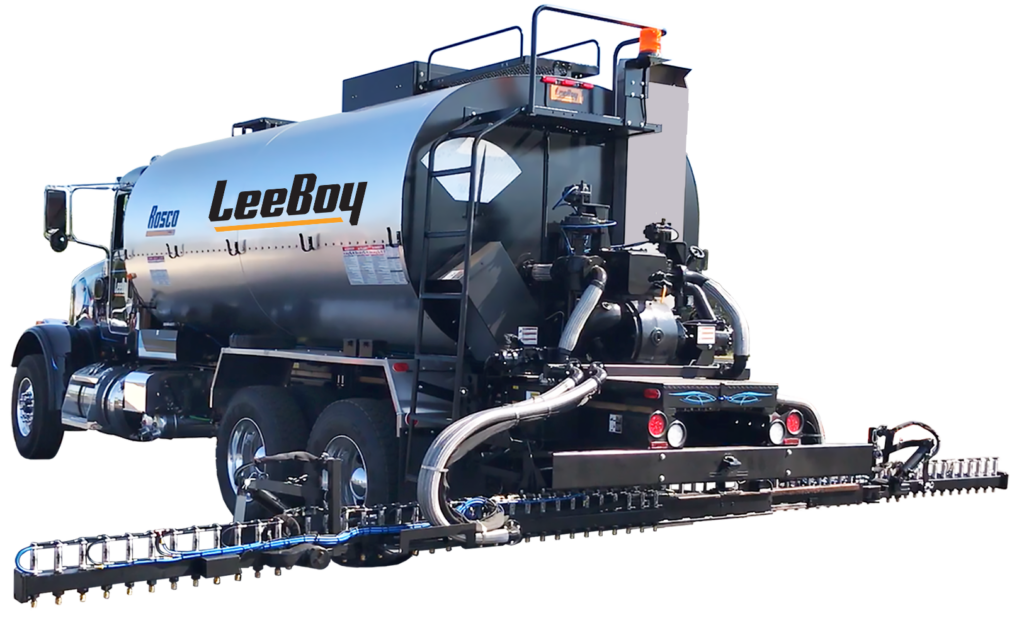

  • Spraybar: 24’ full circulating, extendible spraybar
    - Two 8’ independently controlled extending sections
    - Each spray nozzle automatically turns on when extended and off when retracted
    - Two 4’ fully circulating hydraulically folding wings
    - Spray nozzles operated in 1’ increments
    - All functions operated by the Plus+1 controller in the cab
  • Nozzles:  Spaced on 4” centers on spraybar


  • Plus+1 CAN Bus control and onboard diagnostic system
  • 7” high-resolution, color graphic display
  • Controller for automatic application rate control
  • Automatic valves for cab control of distributor functions
  • Exclusive enviro-flush system with hydraulic pump speed control
  • Settings for flow, speed calibration, spraybar width and spray bar on/off control by section
  • Automatic valves for cab control of distributor functions
  • Capable of storing up to 12 preset combinations of application rates and flow calibrations for instant retrieval
  • Selectable readouts include FPM, GPM, total feet sprayed, total gallons sprayed, total square yards sprayed, flow and speed calibration, application rate, tank temperature, hour meter and spraybar width (English and metric units can be selected for the rate controls)
  • Controller provides accurate applications regardless of changes in speed or spraybar width during operations
  • Includes GPS ground speed sensor
  • Convenient external controls and speed display mounted on rear fender


  • Hydrostatic, front live power driven by engine crankshaft
  • The hydrostatic pump is an infinitely variable, displacement axial piston pump
  • Hydraulic reservoir:  20 gallons with thermometer and sight gauge and level indicator

Additional Standard Equipment

  • Hand spray wand with a 25’ rubber hose
  • Front and rear dial contents gauge
  • 4” dial thermometer and internal pencil thermometers
  • ICC clearance lights and reflectors
  • Rear bumper to protect spraybar
  • Sample valve
  • Back-up alarm
  • Mud flaps
  • Ladder and platform assembly
  • Grease gun

Optional Equipment

  • Installation for a customer supplied truck chassis
  • PTO transmission (required if not using front live power)
  • LPG burner in lieu of diesel burner [includes 48 gallon LP tank]
  • Diesel burners with electronic ignition, 100% outfire protection and heat limit control
  • Diesel burners with outfire protection and heat limit control
  • Oil heat system
  • Electronically actuated emulsion tank hand rails
  • Washdown system with pump and hose, self-winding hose reel
  • Loading hose, 3” x 15’ flexible steel with quick couplers
  • Loading hose, 3” x 15’ rubber with quick couplers
  • Hose trough for loading hose
  • LED working lights, qty 4
  • Beacon light
  • Frame mounted toolbox
  • Extra fender mounted toolbox
  • Wet storage box
  • Full width mud flap
  • Hot oil option
  • Electric overnight heat, 240V single phase
  • Radar horn in lieu of GPS
  • Nozzle selection

Training, Support and Company

  • Training and support manuals
  • Optional on-site operator training by Dealer
  • Two-year, unlimited hours warranty against any manufacturer defects
  • Extended warranty available
  • 55+ years manufacturing experience
  • ISO 9001 Certified
  • Sourcewell Contract#052417-VTL
  • Manufactured in the USA

Job Application

  • Tack coating
  • Chip sealing/surface treating
  • Shoulder repairs
  • Fog sealing

Key Features

  • 24' full circulating, extending spraybar
  • Viking asphalt pump, bi-directional
  • Computerized application control
  • Auto cleanout system
  • Thermostatically controlled burners
