• Aggregate Delivery: Variable

  • Tier 4 Final - 275 hp (205 kw)

  • Weight: 23,720 lbs (10,759 kg)

Dimensions

  • Overall Length: 25’ 10” (7.874 m)
  • Overall Width:  8’ 6” (2.59 m)
  • Overall Height: 8’ 8” (2.64 m), beacon retracted
  • Wheelbase: 12’ 10.5” (3.92 m)
  • Turning radius:  26’ (7.92 m) outside turn radius
    22’ 3” (6.78 m) inside turn radius

Weight

  • 23,720 lbs (10,759 kg), unloaded
  • 36,000 lbs (16,329 kg), loaded 16’ (4.87 m) wide

Shipping Information

  • Length:  25’ 10”  (7.87 m)
  • Width:  8’ 6” (2.59 m) with hopper
  • Height:  8’ 8”  (2.64 m)

Engine

  • Tier 4 Final, 275 hp (205 kw) Cummings diesel turbocharged engine
  • Proportional hydraulic fan drive: maximize hp (kw), reduce noise and automatic cleanout
  • Fuel filter, fuel water separator filter
  • 12 volt negative ground system
  • Dual 1000 amp, 12 volt batteries
  • Dry type dual air cleaner system with indicator
  • Electrical variable controlled engine throttle
  • Fuel reservoir:  65 gallons (246 l)

Hydrostatic Pump Drive

  • Single H1 electric controlled pump
  • 10.07 cubic in (165,017 cubic mm) rev designed to provide optimum traction for two or four wheel drive system
  • Hydraulic pump has pressure compensating pump for auxiliary systems
  • Hydraulic reservoir:  75 gallons (283 l)

Auxiliary Pump System

  • Capacity to operate the hydraulic gate cylinder, hopper extension , augers, conveyors and spread roll on aggregate hopper
  • Auxiliary circuits have minimum 500 psi relief setting for the hydraulic gate cylinder
  • 2,500 psi conveyor

Fan Drive System

  • 45 cc/rev pump to provide optimal flow to the fan drive and steering circuit
  • 1,325 psi orbital steering

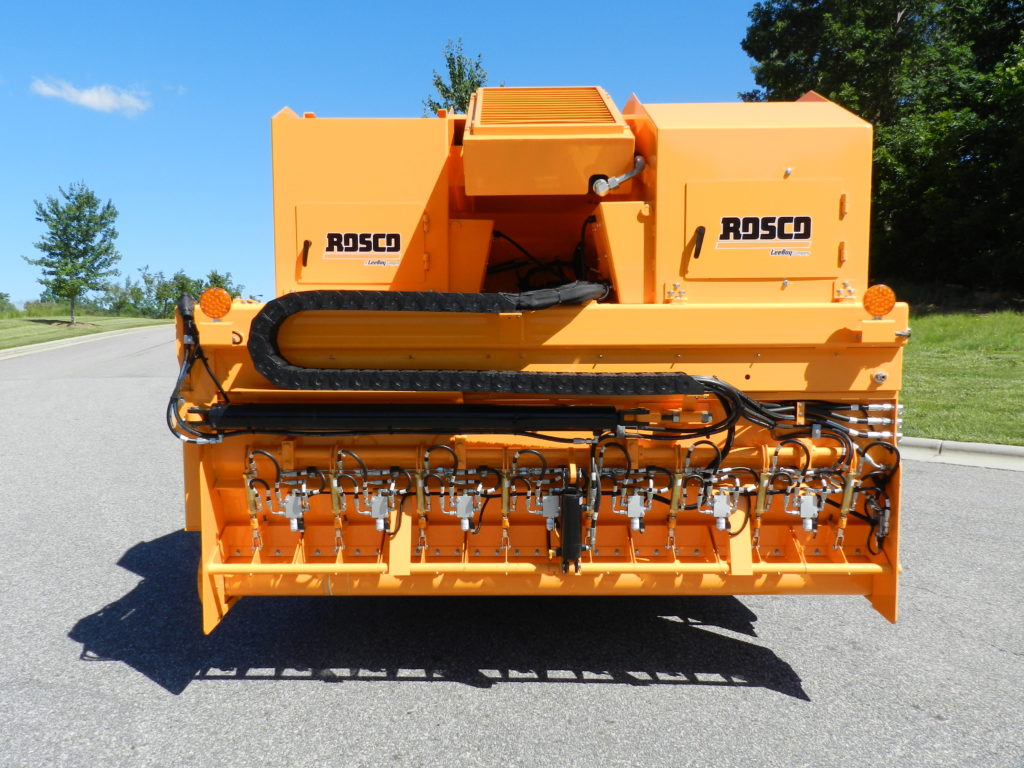

Spread Hopper

  • 0’ to 16’  (0 to 4.87 m) hopper
  • Individual gate controls that are operated from the control station via electric over hydraulic
  • 12” (.304 m) augers
  • Spread roll diameter of 6.625” (168.275 mm), 0.25” (6.35 mm) thick wall
  • Spread roll maximum speed approximately 150 rpms
  • Full length rejection screen on the spread hopper, maximum opening of 1” (25.4 mm)
  • Capacity:  1 cubic yards (.764 cubic m) per side

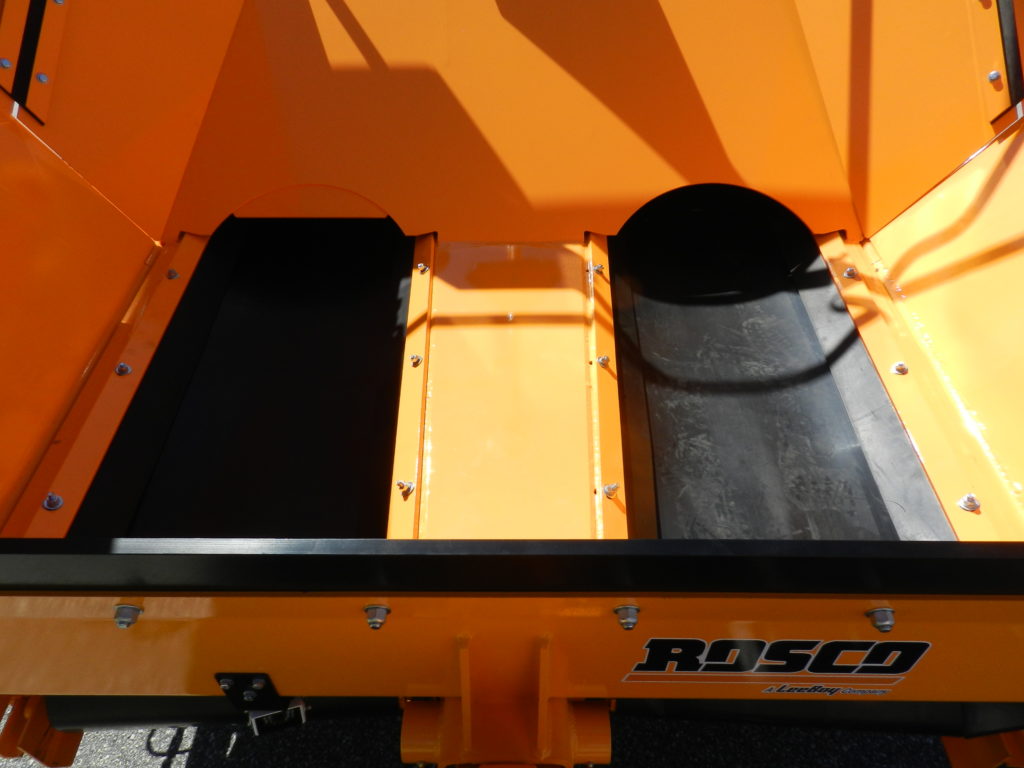

Rear Hopper

  • Two independent manual flow control gates easily accessible from operator’s station for the conveyors
  • Skirting in the receiving hopper to minimize spillage
  • Capacity:  3.5 cubic yards (2.67 cubic m) struck
  • Receiving width:  maximum 11’ 10” (3.6 m), minimum 9’ 6” (2.89 m)

Front Axle

  • 52,900 lbs (23,995 kg) rated capacity, oscillating type
  • 24.97:1 ratio, wet disc brakes, 5,400 lbs (2,449 kg) application
  • Powered by 9.82 cubic in (160,921 cubic mm), rev two-speed hydraulic drive motor
  • Automotive type, drive shaft axle connection between axle and hydraulic drive motor

Rear Axle

  • Two-wheel drive system
  • Minimum 22,500 lbs (10,205 kg) rated capacity
  • 16.5” (.419 m) diameter, 7” (177.8 mm) wide brakes, manual slack adjusters
  • Drum type brakes, spring applied and hydraulic released
  • Minimum 7” (177.8 mm) ground clearance

Tires

  • Track width front:  6’ 3” (1.9 m)
  • Track width rear:  6’ 9”  (2.05 m)
  • Tires standard size:  385/65R 22.5
  • Wheels:  budd-disc style

Conveyor Belts

  • Two independently operated, aggregate feed conveyors
  • Adjustable tail pulleys with pillow block style bearings, grease zerks for each bearing
  • Auto and manual system controlled from touch pad system integrated with Plus+1 system
  • Belt width:  20” (.508 m)
  • Speed:  0 to 500’ per minute (152.4 m per minute)

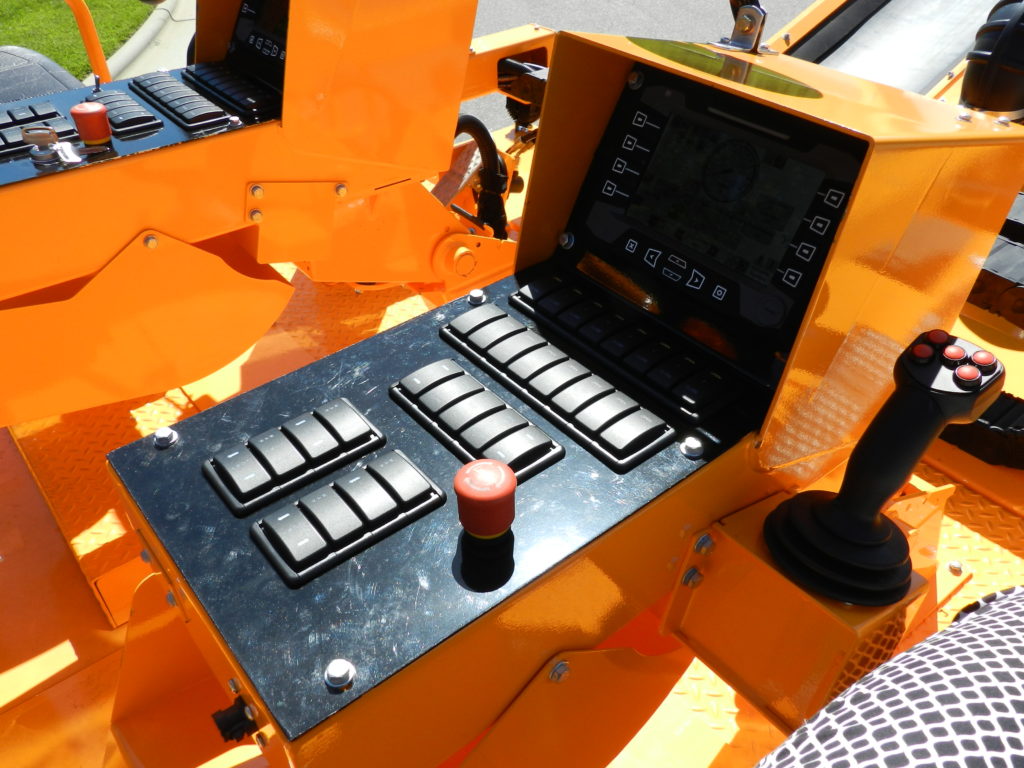

Operator's Area

  • One full console on left side, 15” (38.1 cm) slide out platform for optional field of view
  • Right hand remote operator control
  • Appropriate foot brake control
  • Parking brake electronically controlled on main control console
  • Access to engine and hydraulic components accessible from operator’s deck
  • Cushioned and adjustable seat

Steering

  • Fully hydraulic, orbital type
  • Independent of drive system

Brakes

  • Two wheel drive:  Front axle hydraulic multiple wet disc type
  • Rear axle hydraulic actuated brakes, spring applied and hydraulic released

Instrumentation

  • Plus+1 CAN Bus control and onboard diagnostic system
  • DP 710 color graphic display, 7” (177.8 mm), 800 x 480 pixel
  • Gauges include engine water temperature, engine oil pressure, tachometer, fuel gauge, DEF fluid, voltmeter, hydraulic temperature, hour meter and volt meter

Control Functions

  • Hydrostatic control system
  • Manual mode:  Operator can vary forward/reverse speeds of unit with joystick
  • Speed ranges:  0 to 20 mph (0 to 32.1 kph), high range
    0 to 10 mph (0 to 16 kph), low and reverse ranges

Application Rate Control

  • Computer monitors the actual speed of the spreader, varies gate opening to maintain the set application rate
  • Plus+1 CAN Bus system with auto-rate control monitors actual speed of the spreader regardless of load conditions
  • Programmable application rate in lbs per sq. yard
  • Include rock size, type, chipping width, feet per minute and accumulative totals
  • Ability to access memory settings service screens, system faults, engine faults, machine settings, calibration settings and display units in English or metric
  • Control switches for the working lights, turn/hazard signals and beacon

Additional Standard Equipment

  • Temperature monitored hydraulic oil cooler
  • Two wheel drive, front wheel drive
  • Horn
  • Backup alarm
  • LED turn signals, work lights and beacon
  • Remote camera for hitch
  • Pressure transducers
  • Tool and storage box

Optional Equipment

  • All-wheel drive system
  • Dual operator consoles with slides
  • Spread hopper vibrators
  • Umbrella, quantity 2

Training, Support and Company

  • Training and support manuals
  • Optional on-site operator training by Dealer
  • One-year, unlimited hours warranty against any manufacturer defects
  • Extended warranty available
  • 50+ years manufacturing experience
  • ISO 9001 Certified
  • Manufactured in the USA

Job Application

  • Chip spreading
  • Surface treatment
  • All roads residential to highway
  • Driveways

Key Features

  • Travel width under 102” (8’-6”)
  • Spreader widths 1’-16’
  • Independent operated feed conveyors
  • Computerized application control
  • Programmable memory for chip size, spread width, feet per minute and accumulative totals
  • 275 H.P. Cummins engine
  • Hopper capacity 3.5 cubic yards
  • 12’ wear resistant augers in rock hoppers
