• Tank Size: 600 Gallon

  • Engine: 4.8 HP (3.6 kw) Honda

  • Weight: 3,050 lbs (1,370 kg)

Dimensions (trailer configuration)

  • Length: 15' 8” (4.78 m)
  • Width:  6’ 4” (1.94 m)
  • Height:  5’ 9” (1.76 m)
  • Tank:  600 gallons (2,271 l)

Trailer Specifications (for trailer configuration)

  • 6,000 lb (2,722 kg) axles with a pintle eye
  • 1,500 lb (680.3 kg) jackleg
  • Wired for towing
  • Tires:  ST 225/75D15
  • Shipping weight: 3,050 lbs (1,370 kg)
  • Loaded weight:  7,270 lbs (3,298 kg)

Dimensions (skid-mount configuration)

  • Length: 12’ 8” (3.86 m)
  • Width:  4’ 3” (1.28 m) – skid frame width
  • Height:  4’ 9” (1.45 m)
  • Tank:  600 gallons (2,271 l)

Tank Dimensions

  • Length: 97.875” (2.48 m)
  • Width:  54.125” (1.37 m)
  • Height:  36.25” (.92 m)

Engine

  • 4.8 HP (3.6 kw) Honda
  • 1 gallon (3.79  l) fuel tank

Heat System

  • One 300,000 BTU propane burner
  • One starter burner
  • 40 lbs (18.1 kg) propane fuel tank

Asphalt Pump

  • Specially designed 7 GPM (26.5 LPM) pump

Temperature Gauge

  • 50 - 300⁰ F (10 - 149⁰ C)
  • Adjustable angle face plate

Flush Tank

  • 7 gallons (26.5 l) tank with suck back valve

Wand

  • 6’ (1.829 m) wand with cold handles
  • On/off valve
  • Removable spray tip

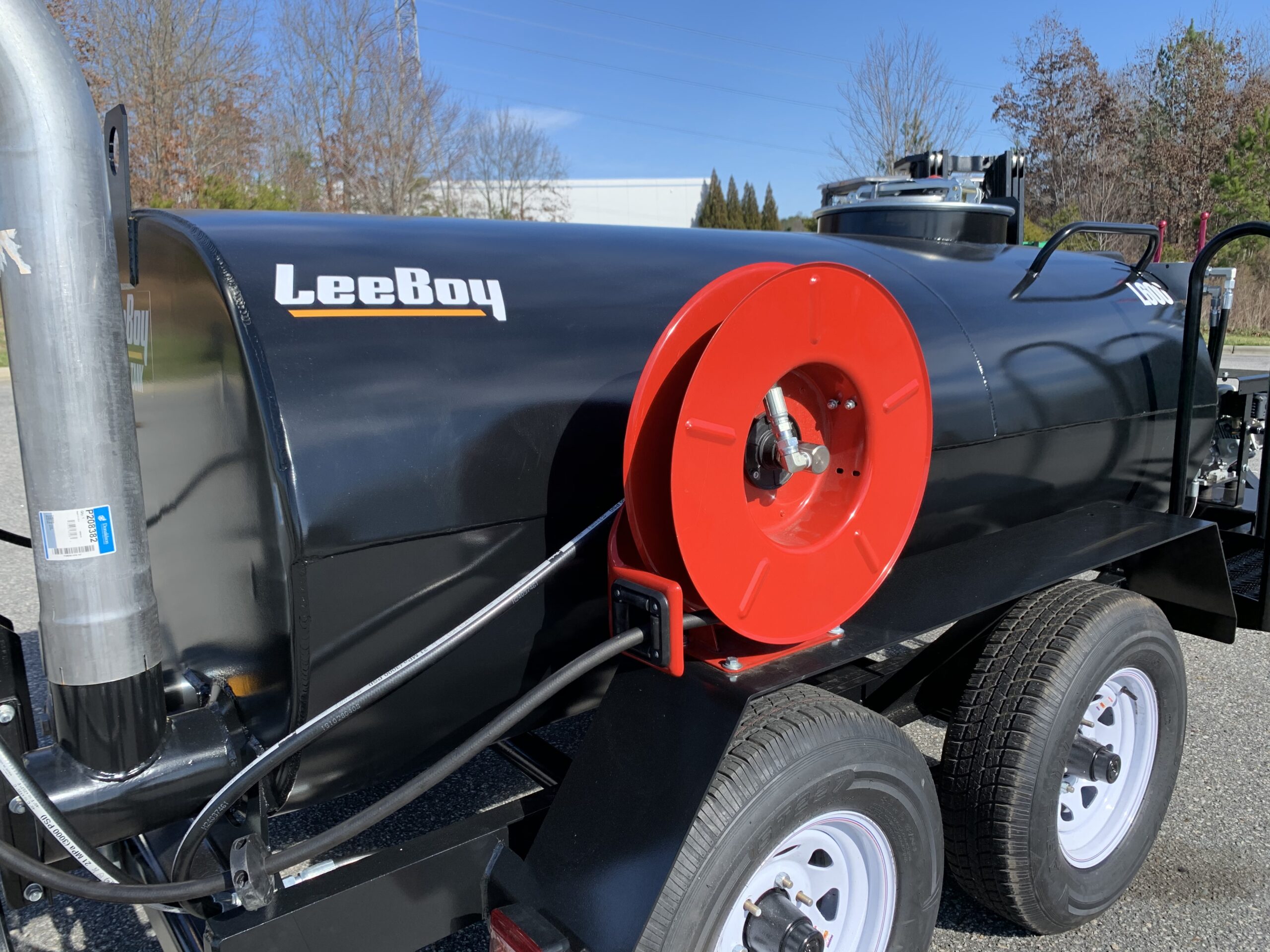

Hose and Reel

  • .5” x 40’ (13 mm x 12.192 m) heavy-duty recoil hose reel

Manhole

  • 20" (508 mm) diameter
  • 10" (254 mm) diameter fill hose
  • 3 psi (2.1 bar) pressure relief

Clean Out

  • 4” (102 mm)

Sampling Valve

  • 1” (25 mm)

Additional Standard Equipment

  • Waste bucket mount (trailer configuration only)
  • 1” (25 mm) Rear tank return
  • 2” (50 mm) tank overflow

Optional Equipment

  • Engines
    - Honda gas - 4.8 hp (3.6 kW) electric start
    - Hatz diesel - 7.2 hp (5.4 kW)  pull start or electric start
    - Fuel: 1.32 gallons (5.0 l)
  • Heat Systems
    - Diesel Burner, One 300,000 BTU diesel burner  (only available with electric start engines)
    7 gallon (26.5 l) fuel tank
    Auto ignition diesel burner with outfire

    - Overnight Heat
    120 volt/1500 watt
    Immersion element

  • Spray Bar, Width: 8' (2.44 m)
    Spray width: 12' (3.65 m)
    Controls: In-truck remote controls (requires 8' spray bar option)

  • Insulated Tank
  • 2" ball hitch
  • Skid-mount configuration available

Training, Support and Company

  • Training and support manuals
  • Optional on-site operator training by Dealer
  • Two-year, unlimited hours warranty against any manufacturer defects
  • Extended warranty available
  • 55+ years manufacturing experience
  • ISO 9001 Certified
  • Sourcewell Contract#052417-VTL
  • Manufactured in the USA

Job Application

  • Driveways
  • Small to large parking lots
  • Cart paths
  • Municipal work
  • Patching

Key Features

  • 600 gallon capacity
  • Trailer-mount configuration
  • One 300,000 propane burner
  • 7 gpm asphalt pump
  • 7 gallon flush tank
