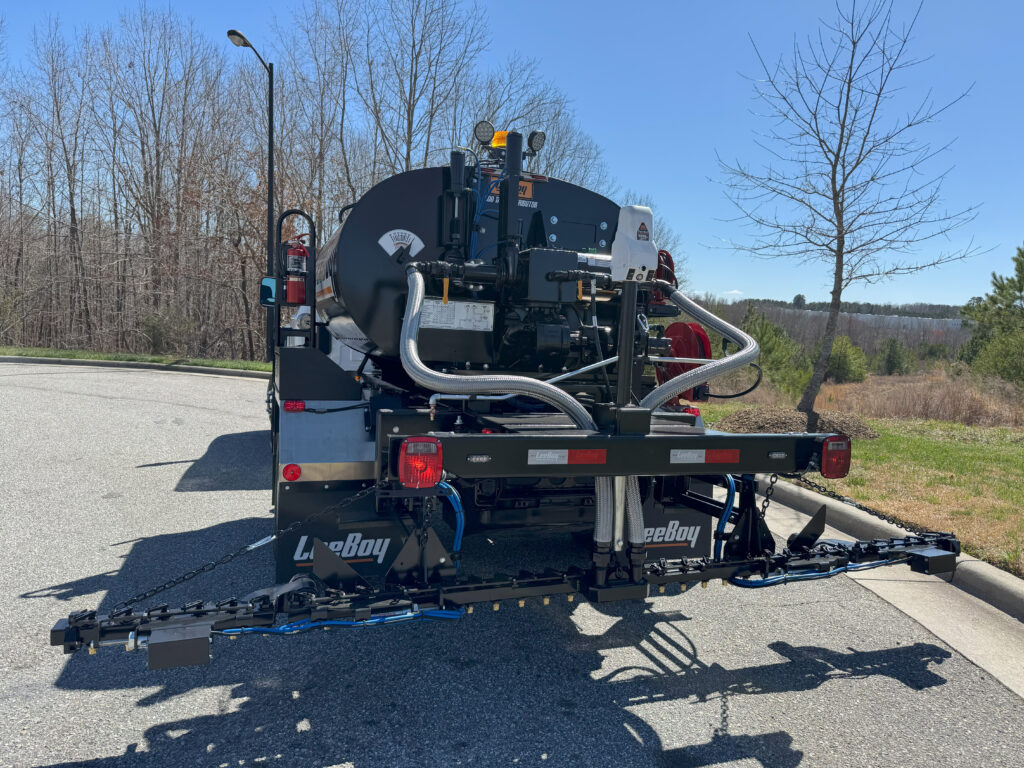

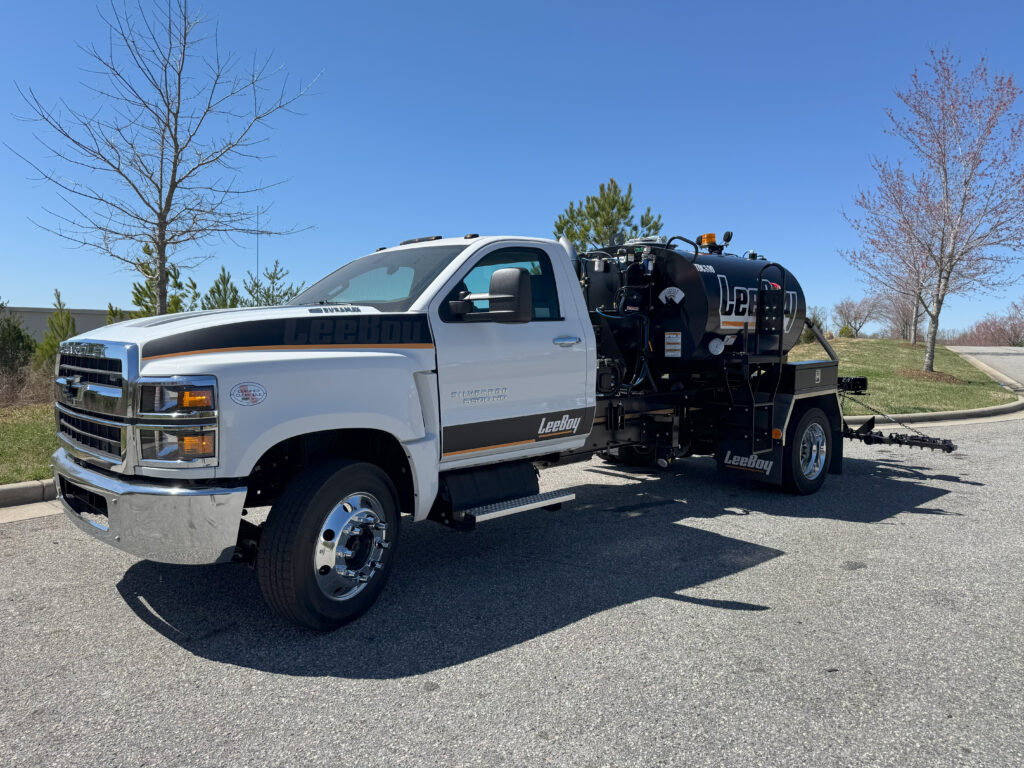

TDC600
The TDC600 Tack Distributor provides a cost-efficient option for large projects and is perfect for the all-inclusive commercial paving contractor. This chassis mounted tank, along with its many standard features, such as long-ranged wireless remote controls, allows you to complete many of your daily tasks with efficiency and ease. Uniquely configurable, the customizable options give the contractor the ability to create a solution specific to their exact needs.
Find a DealerResources
LeeBoy TDC600
Technical Specifications
Dimensions
Dimensions are dependent upon type of truck purchased and options selected.
Engine
Kubota – 24.8 hp (18.5 kW)
Capacities
Fuel: 16 gallon
Tank Dimensions
- Length: 64”
- Width: 70”
- Height: 42”
Asphalt Pump
150 gallons per minute Viking asphalt pump
Heat System
- One 300,000 BTU diesel burner
- Five pass flue system
- Galvanized exhaust stack
Temperature Gauge
- 0 – 500ºF
- Adjustable angle faceplate
Flush Tank
7 gallons
Wireless In-Cab Controls
- Color display with readouts for: engine rpm, engine fault status, system faults, engine hours, ground speed, application rate, spray width,
material temperature, material temperature set point, mode selection, asphalt pump current speed, valve status, totals screen - Auto/Manual pump selector
- Manual pump speed dial
- Engine start/stop
- Bar circulate/off/spray switch
- Bar section on/off for left wing, left center, right center, right wing
- Mode selector: off, spray/bar circulate, tank circulate/hand spray, reverse suction, cleanout, calibration
- E-stop
